Chain Couplings

Chain Couplings

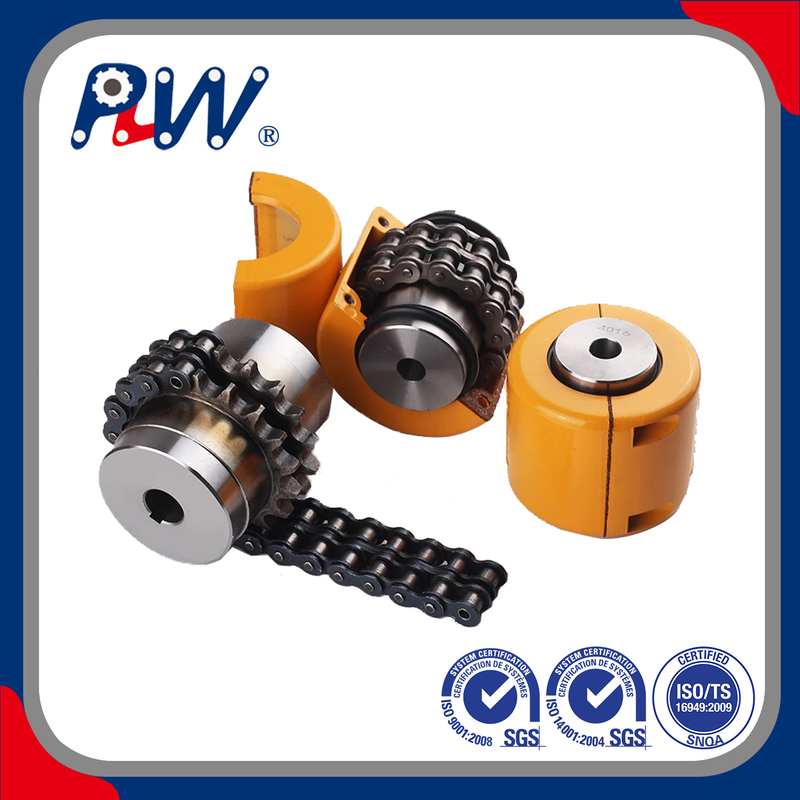

Core Structural Components

1. Sprockets

   Precision-machined from carbon steel, alloy steel, or stainless steel, with teeth hobbed to match the roller chain pitch. Tooth surfaces are often induction-hardened to HRC 58–62 for superior wear resistance. Sprockets are mounted onto the driven and driving shafts via keyways or clamping hubs for secure torque transmission.

2. Roller Chain

   The connecting element that wraps around both sprockets. Single-row chains are used for light-to-medium loads, while multi-row chains (double, triple, or quadruple) are preferred for heavy-duty scenarios, as they distribute torque evenly across multiple strands to boost load capacity.

3. Accessories

   Optional components include chain guards to prevent debris contamination, tensioners to maintain optimal chain tension, and lubrication fittings for greasing, which extends service life in harsh environments.

Performance Characteristics

• High Torque Transmission

  Chain couplings excel in transferring heavy loads, with torque capacities ranging from a few hundred N·m to over 100,000 N·m for large industrial models. Multi-row chain designs can achieve 2–4 times the torque capacity of single-row equivalents of the same pitch.

• Moderate Misalignment Compensation

  Unlike rigid couplings, they can accommodate small amounts of shaft misalignment: radial misalignment (≤0.2% of shaft center distance), angular misalignment (≤1.5°), and axial displacement (±3 mm). This flexibility reduces stress on bearings and shafts caused by installation errors or thermal expansion.

• Cost-Effective & Easy to Maintain

  Compared to gear couplings or elastomeric couplings, chain couplings have a simple structure, lower manufacturing costs, and easy assembly/disassembly. Damaged chains can be replaced independently without removing the sprockets, minimizing downtime.

• Temperature & Environmental Resistance

  Alloy steel variants operate reliably in temperatures from -40°C to 200°C. Stainless steel models are corrosion-resistant, suitable for wet, acidic, or outdoor environments. However, they are not recommended for high-speed applications (>3000 rpm) due to potential vibration and noise.

Common Types

1. KC Series Chain Couplings

   The most widely used standard type, featuring double-row roller chains and split sprockets for easy installation. Ideal for general industrial machinery, such as pumps, fans, and conveyors.

2. AL Series (Lightweight) Chain Couplings

   Compact design with single-row chains, suitable for light-load applications like small motors and packaging equipment.

3. Stainless Steel Chain Couplings

   Constructed entirely from 304 or 316 stainless steel, designed for food processing, pharmaceutical, and marine industries where hygiene and corrosion resistance are critical.

4. High-Strength Alloy Chain Couplings

   Made from nickel-chromium alloy steel with heat treatment, offering ultra-high tensile strength for heavy-duty equipment such as mining crushers, steel mill rollers, and marine propulsion systems.

Typical Application Fields

• General Manufacturing: Connect motors to pumps, blowers, mixers, and conveyors.

• Heavy Industry: Mining machinery, metallurgical equipment, cement kilns, and rolling mills.

• Agricultural Machinery: Harvesters, grain elevators, and feed mixers.

• Marine & Offshore: Shipboard pumps and deck machinery (stainless steel models).

• Food & Beverage: Conveyor systems in bottling plants and packaging lines (corrosion-resistant variants).

Key Selection Guidelines

1. Torque Capacity

   Calculate the required torque based on the driven equipment’s power and speed, then select a coupling with a rated torque 1.2–1.5 times the calculated value to account for peak loads during startup or shock.

2. Shaft Compatibility

   Match the sprocket bore diameter to the shaft size, and choose the appropriate connection type (keyway, clamping hub, or taper lock) based on installation requirements.

3. Misalignment Level

   If shaft misalignment exceeds the coupling’s compensation limits, pair it with a flexible joint or adjust the mounting alignment to avoid premature wear.

4. Working Environment

• For corrosive or wet environments: Select stainless steel couplings.

• For high-temperature applications: Choose heat-treated alloy steel and high-temperature lubricants.

• For dusty environments: Install chain guards and regular lubrication systems.
