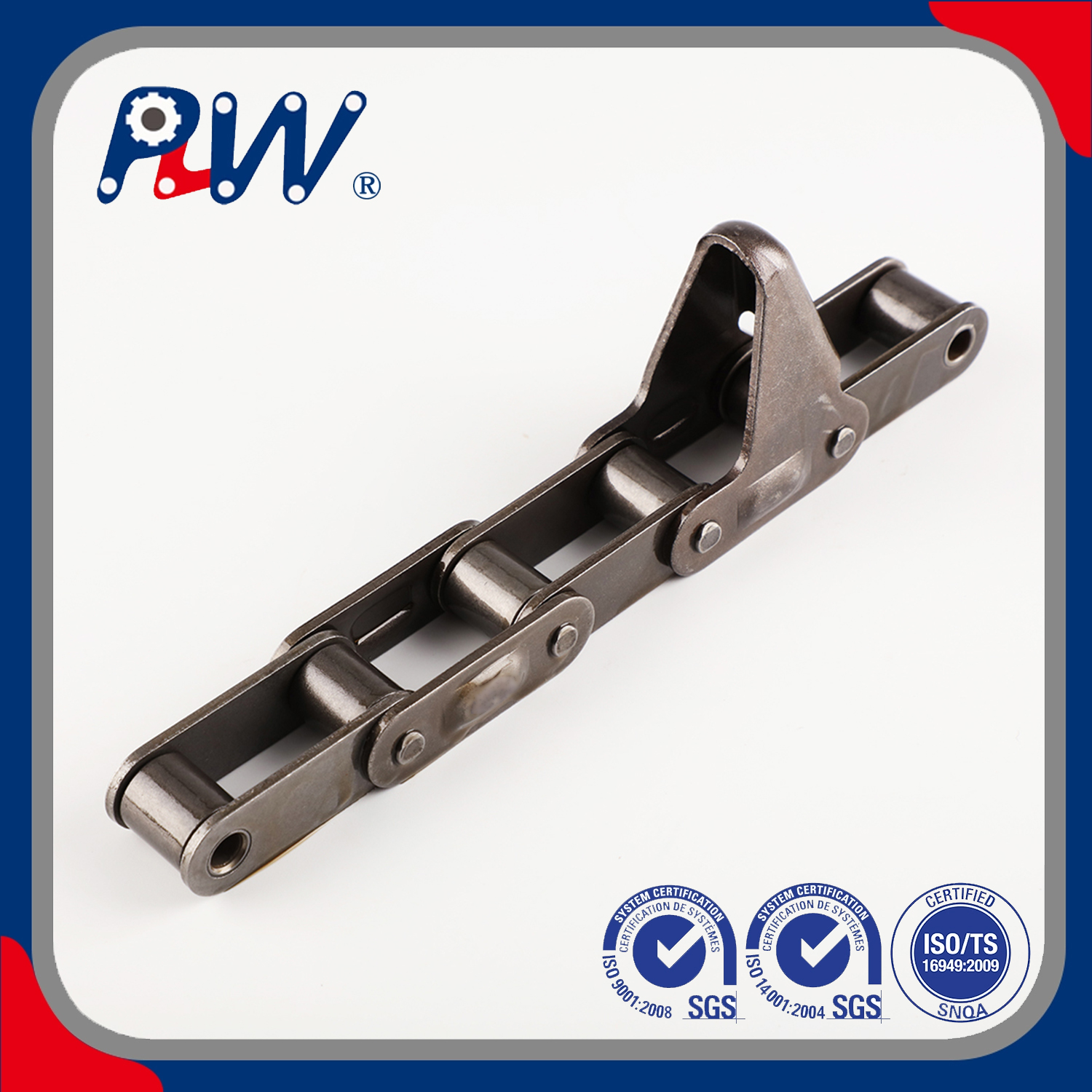

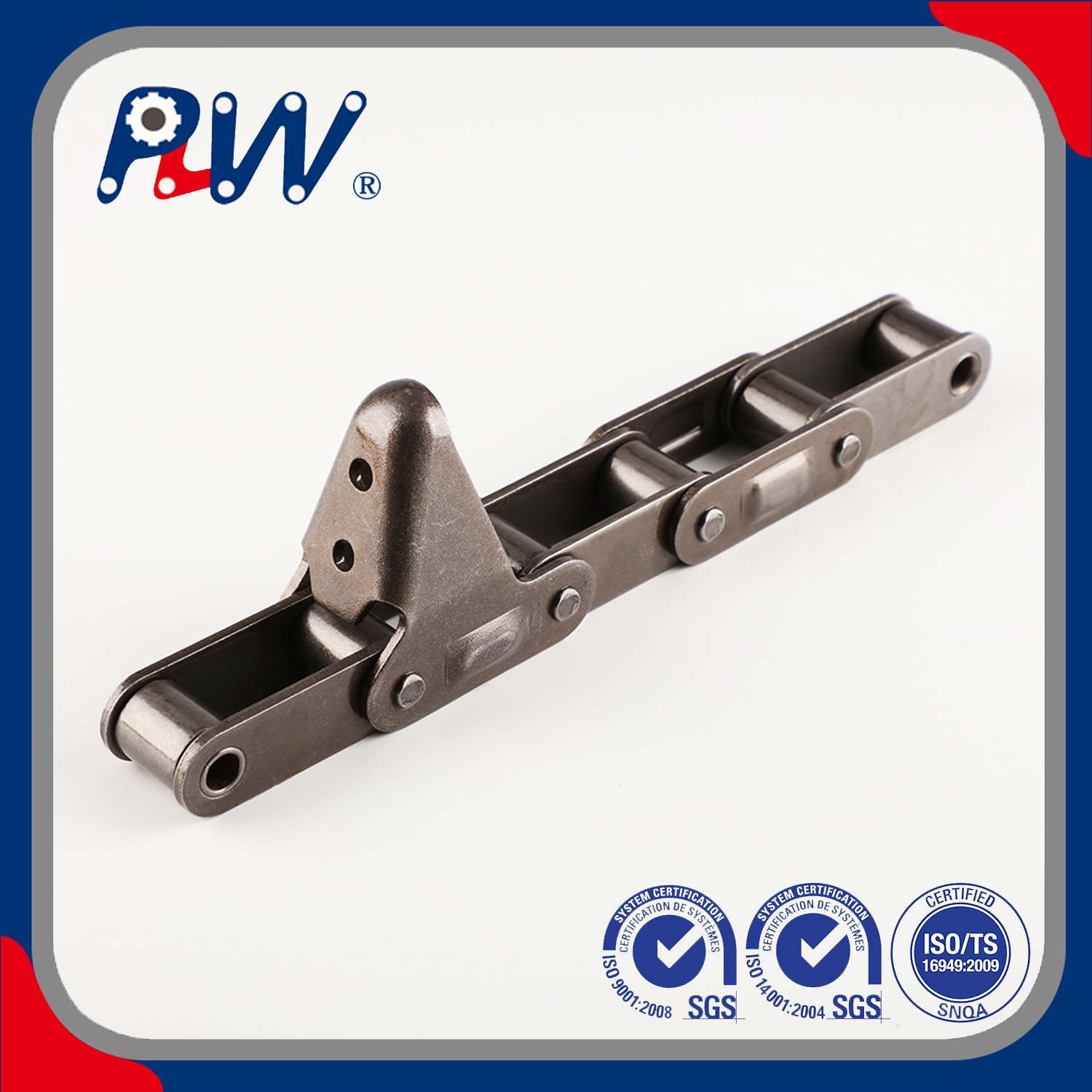

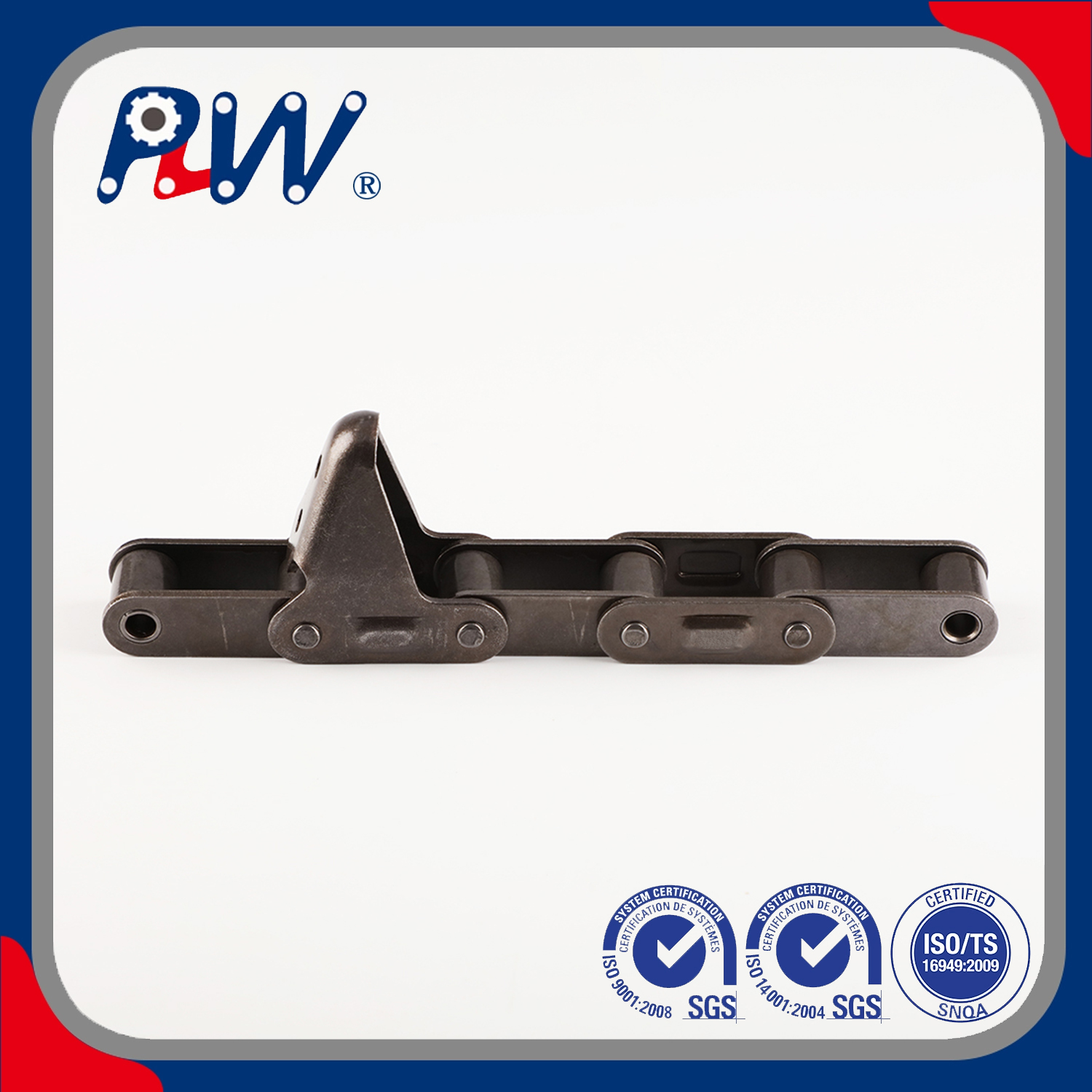

CA2060-C6E Robust Agricultural Chain, Steel Build with C6E Attachments
The CA2060-C6E Robust Agricultural Chain is a heavy-duty transmission and conveying component specifically designed for harsh agricultural operations. Featuring a high-strength steel build and integrated C6E attachments, it combines exceptional durability, reliable load-bearing capacity and stable performance, perfectly adapting to the demanding working environments of farmland machinery.
Core Construction & Advantages
Constructed from premium high-carbon steel, the CA2060-C6E chain undergoes strict heat treatment to enhance overall hardness, tensile strength and fatigue resistance, effectively withstanding the wear, impact and stress caused by long-term continuous operation in farmland. Its surface is oil-coated for superior lubricity and rust prevention, ensuring better adaptability to humid, dusty agricultural conditions.
The integrated C6E attachments are precision-manufactured to match the CA2060 chain specifications seamlessly, featuring a sturdy structure that ensures firm clamping and stable conveying of agricultural materials (such as grains, seeds and crop residues). The C-type design of the attachments enhances material-carrying stability, avoiding slipping or falling during machinery operation, thus improving work efficiency.
Key Specifications & Customization
Compliant with international agricultural chain standards, the CA2060-C6E chain ensures seamless interchangeability with matching sprockets and easy integration into various agricultural machinery. Typical standard specifications (customizable per requirements):
Pitch (P): 38.10mm (standard for CA2060 series)
Roller Diameter: 22.23mm; Inner Link Width: 15.88mm; Plate Thickness: 3.0mm
Breaking Load: 45.0kN (equivalent to 10,116 lbs); Operating Temperature: -20°C to +300°C
C6E Attachments: Standard size matching chain pitch, customizable thickness, angle and installation position
Additional customizations include stainless steel material (for enhanced corrosion resistance), reinforced link plates, different types of connecting links (clip/cotter type), and C6E attachment shape adjustment to meet specific agricultural machinery needs.
Performance & Application
The CA2060-C6E chain boasts robust performance, stable transmission, low noise and easy maintenance. It is highly resistant to wear, dust, moisture and mechanical impact, perfectly adapting to harsh farmland conditions such as soil erosion, crop residue friction and frequent start-stop operations. Pre-stretched during production, it minimizes elongation and deformation over long-term use.
Widely applied in various agricultural machinery and equipment, including combine harvesters, grain elevators, seeders, fertilizer conveyors, tillers and rotary cultivators. It is ideal for conveying bulk agricultural materials and providing reliable transmission support for agricultural operations such as planting, cultivation and harvesting.
Quality Assurance
Manufactured in strict accordance with international agricultural chain standards, each CA2060-C6E chain undergoes rigorous quality testing, including dimensional accuracy inspection, tensile strength testing, wear resistance testing and attachment firmness testing. This ensures consistent quality, excellent interchangeability and reliable long-term operation in various agricultural scenarios.
