Corrosion-Resistant Stainless Steel Chain Coupling for Mining & Conveyor Systems

Stainless Steel Roller Chain Coupling for Reliable Torque Transmission in Demanding Industrial Environments

Our Corrosion-Resistant Stainless Steel Chain Coupling is designed for reliable torque transmission between rotating shafts in mining, conveyor, material handling, processing, and other demanding industrial applications.

Manufactured with stainless steel components and precision-engineered chain coupling elements, the coupling provides corrosion resistance, mechanical durability, and reliable shaft-to-shaft power transmission in environments exposed to moisture, dust, humidity, and industrial contaminants.

The flexible chain coupling design accommodates minor shaft misalignment while transmitting torque efficiently and helping reduce shock loads and vibration within the drive system.

Key Features

1. Corrosion-Resistant Stainless Steel Construction

Stainless steel components provide enhanced resistance to moisture, oxidation, and corrosive operating environments, making the coupling suitable for demanding industrial applications.

2. Reliable Torque Transmission

The roller chain and sprocket assembly provides positive mechanical engagement for efficient transmission of rotational torque between connected shafts.

3. Flexible Shaft Coupling Design

The chain coupling can accommodate limited angular, parallel, and axial misalignment, helping compensate for normal installation and operating conditions.

4. High Mechanical Durability

Precision-manufactured sprockets, chain components, and hubs provide reliable mechanical performance under continuous industrial operation.

5. Suitable for Heavy-Duty Applications

The coupling is suitable for conveyor drives, mining equipment, material handling machinery, crushers, feeders, pumps, and other industrial power transmission systems.

6. Easy Installation and Maintenance

The split coupling configuration allows practical installation and removal without requiring extensive modification to the connected equipment, depending on the selected design.

7. OEM & Custom Manufacturing

Bore dimensions, keyways, hub configurations, chain specifications, materials, covers, and other coupling parameters can be customized according to equipment requirements.

Technical Specifications

Note: Actual torque capacity, allowable speed, bore dimensions, misalignment limits, and operating temperature depend on coupling size, material, lubrication, installation conditions, and application requirements. Final technical parameters should be confirmed according to the selected coupling model.

Chain Coupling Construction

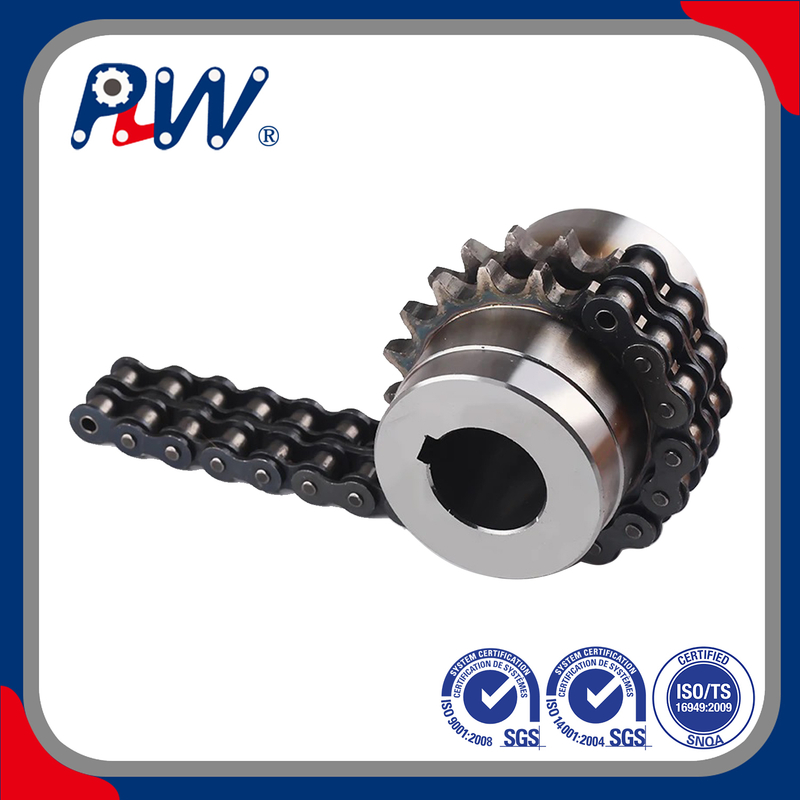

A chain coupling consists of two sprockets connected by a precision roller chain. The sprockets are mounted on the driving and driven shafts, allowing torque to pass through the chain engagement.

Stainless Steel Sprockets

Precision-machined sprockets provide positive engagement with the roller chain and maintain stable torque transmission during operation.

Roller Chain

The roller chain transfers rotational force between the two sprockets. Stainless steel chain options are available for applications requiring improved corrosion resistance.

Hubs

Hubs connect the coupling to the equipment shafts and can be supplied with standard bores, keyways, taper bores, or customized shaft interfaces.

Protective Cover

A protective cover can be supplied where required to retain lubricant, reduce contamination, and improve operator safety.

Corrosion Resistance for Demanding Environments

Mining and conveyor equipment frequently operates in environments containing dust, moisture, abrasive particles, and corrosive contaminants.

A stainless steel chain coupling provides enhanced surface corrosion resistance compared with conventional uncoated carbon steel components.

Typical applications include:

• High-humidity environments

• Outdoor conveyor systems

• Mining and mineral processing equipment

• Material handling systems

• Aggregate processing equipment

• Bulk material conveyors

• Industrial processing machinery

• Equipment exposed to water and cleaning environments

For highly corrosive applications, SS316 stainless steel may be considered where its corrosion resistance characteristics are appropriate for the operating environment.

Material selection should be based on actual exposure conditions, chemical media, temperature, load, speed, and maintenance requirements.

Designed for Mining & Conveyor Systems

Mining and conveying equipment requires reliable mechanical power transmission under continuous and sometimes harsh operating conditions.

Our stainless steel chain couplings can be configured for applications such as:

Mining Equipment

• Crushers

• Screens

• Feeders

• Conveyors

• Bucket elevators

• Material handling equipment

• Mineral processing machinery

Conveyor Systems

• Belt conveyor drives

• Roller conveyor systems

• Chain conveyor equipment

• Screw conveyor drives

• Bulk material handling systems

• Packaging and transfer conveyors

Industrial Machinery

• Pumps

• Fans

• Gear reducers

• Drive systems

• Processing equipment

• Automated machinery

Advantages of Chain Coupling Design

Flexible Power Transmission

The roller chain connection provides a flexible mechanical link between the two shafts while maintaining positive torque transmission.

Misalignment Compensation

The coupling can accommodate limited shaft misalignment, reducing sensitivity to minor installation deviations and normal operating movement.

Shock Load Management

The flexible chain assembly can help accommodate transient loads and mechanical shock within the permissible operating range.

Compact Configuration

The chain-and-sprocket construction provides a relatively compact coupling solution for many industrial drive systems.

Simple Maintenance

With appropriate lubrication and periodic inspection, chain couplings can provide reliable service with straightforward maintenance procedures.

Stainless Steel Chain Coupling vs. Conventional Chain Coupling

Material and coupling selection should always be based on actual load, speed, environment, and service conditions.

Manufacturing & Quality Control

Each coupling can be inspected throughout the manufacturing process to ensure dimensional accuracy and reliable assembly.

For OEM projects, inspection reports and material documentation can be supplied according to customer requirements.

Custom Stainless Steel Chain Coupling

We provide customized chain coupling solutions for equipment manufacturers, system integrators, distributors, and industrial power transmission applications.

Customization options include:

• SS304 stainless steel construction

• SS316 stainless steel construction

• Custom sprocket dimensions

• Custom shaft bores

• Standard or custom keyways

• Taper bores

• Extended hubs

• Special hub configurations

• Custom roller chain sizes

• Protective coupling covers

• Special lubrication requirements

• High-temperature configurations

• Custom corrosion-resistant materials

• OEM drawings and samples

• Customized packaging and labeling

For engineering evaluation, customers can provide the shaft diameter, keyway dimensions, required torque, operating speed, center distance, operating environment, and available installation space.

Selection Guide

Selecting the correct chain coupling requires consideration of several operating parameters.

1. Shaft Diameter

Confirm the diameter and configuration of both connected shafts.

2. Required Torque

The coupling should be selected based on the actual operating torque, peak torque, and applicable service factor.

3. Operating Speed

Coupling speed affects chain selection, lubrication requirements, and permissible operating conditions.

4. Operating Environment

Humidity, water exposure, salt, dust, chemicals, temperature, and outdoor operation should be considered when selecting stainless steel and coating specifications.

5. Misalignment

The expected parallel, angular, and axial shaft misalignment should be evaluated during coupling selection and installation.

6. Lubrication

Appropriate lubrication is essential for reducing chain wear and maintaining reliable coupling performance.

Installation & Maintenance Recommendations

For reliable long-term performance:

• Ensure the connected shafts are properly aligned.

• Confirm correct bore and keyway dimensions before installation.

• Tighten hub fasteners according to the specified requirements.

• Apply the recommended lubricant before commissioning.

• Inspect the chain and sprockets periodically for wear.

• Check for excessive chain elongation.

• Inspect sprocket tooth wear during scheduled maintenance.

• Maintain appropriate lubrication intervals.

• Check coupling alignment after major equipment maintenance.

• Replace worn chain or sprockets as required.

Actual maintenance intervals depend on load, speed, environment, lubrication, and operating hours.

Why Choose Our Stainless Steel Chain Coupling?

Corrosion-Resistant Construction
Stainless steel options provide enhanced protection for humid, outdoor, and demanding industrial environments.

Reliable Torque Transmission
Precision sprockets and roller chains provide positive mechanical power transmission.

Heavy-Duty Industrial Applications
Designed for mining, conveyors, material handling, and industrial machinery.

Flexible Coupling Performance
Accommodates limited shaft misalignment while maintaining reliable mechanical connection.

OEM Customization
Bore, keyway, hub, chain, material, and protective cover configurations can be customized.

Quality-Controlled Manufacturing
Dimensional, material, assembly, and functional inspections help ensure consistent product quality.

OEM Stainless Steel Chain Coupling Supplier

Whether you require a standard stainless steel chain coupling for a conveyor drive or a customized coupling for mining and material handling equipment, we can provide solutions based on your mechanical and environmental requirements.

Our engineering team can work from technical drawings, samples, shaft dimensions, equipment specifications, or application requirements to develop a suitable coupling configuration.

Contact us for stainless steel chain coupling specifications, OEM customization, samples, and technical quotations.
