High-Precision Spur Gear - Carbon Steel for Heavy-Duty Industrial Transmission

Custom Module Spur Gear - 20° Pressure Angle for Parallel Shaft Systems

Compact, wear-resistant spur gears engineered for simple installation, universal compatibility, and consistent performance in CNC machines, robotics, and legacy equipment.

Model:
Spur Gears
Brand:
PLW or Made to order
Material:
Carbon Steel
Transport Package:
Plastic Bag+Carton Box+Plywood Case
Trademark:
PLW
Origin:
CHINA
Standard Or Nonstandard:
Standard
Type:
Spur Gears

Availability:

Quantity:



Inquire Add to Basket

Product Description

1. Product Overview

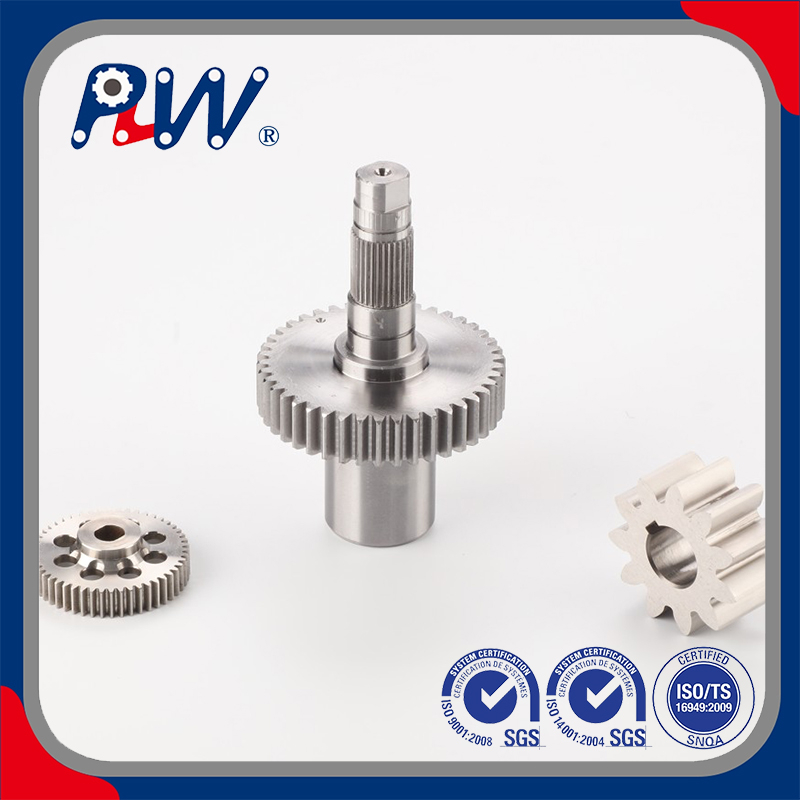

Our Custom Module Spur Gear with a 20° pressure angle is a precision-engineered power transmission component specially designed for parallel shaft drive systems in industrial mechanical equipment. Adopting the industry-standard 20° full-depth tooth profile, this custom spur gear delivers optimal balance of load capacity, transmission stability and manufacturing practicability. Unlike standard fixed-specification gears, it supports full customisation of module, tooth count, face width, outer diameter, bore size and surface treatment, perfectly adapting to diverse low-to-high speed, light-to-heavy load parallel shaft transmission scenarios. Strictly manufactured in compliance with international gear precision standards, this product ensures reliable meshing performance, low vibration and long service life for mechanical transmission systems.

2. Core Structural & Dimensional Customisation Features

This custom spur gear supports fully personalised parameter configuration to match unique equipment design requirements, with all core dimensions customisable based on customer drawings and technical demands:

Standard 20° Pressure Angle Tooth Profile: The 20° pressure angle is the most widely recognised universal specification for industrial spur gears. Compared with 14.5° pressure angle gears, it features thicker tooth roots, stronger bending resistance, higher rigidity and better overload resistance, effectively avoiding tooth breakage under heavy load conditions.
Full Module Customisation: Supports custom module ranging from tiny precision modules (0.5M, 0.8M, 1M) for miniature automation equipment to large heavy-duty modules (3M, 5M, 8M and above) for engineering machinery, covering all industrial transmission needs.
Flexible Dimensional Matching : Customisable tooth number, face width, pitch diameter, addendum and dedendum size; diverse bore designs including plain bore, keyway bore, spline bore and stepped bore; optional hub and shoulder structures to meet different installation and assembly requirements of parallel shaft systems.
Precision Tooth Machining: Adopts advanced hobbing, grinding and finishing processes, with gear precision grades ranging from ISO 6 to ISO 10, ensuring high meshing accuracy and minimal backlash for parallel shaft transmission.

3. Premium Material & Surface Treatment Options

To adapt to different working environments and load conditions, we provide a variety of high-strength, wear-resistant materials and custom surface treatment processes, ensuring excellent durability and stability of the gear:

Optional Materials: 45# carbon steel (cost-effective for general light-load transmission), 40Cr alloy steel (high toughness and wear resistance for medium-load scenarios), 20CrMnTi carburised steel (high hardness and impact resistance for heavy-duty and high-speed operation), stainless steel (corrosion-resistant for humid, chemical and food-grade environments), and engineering plastic (low noise, self-lubricating for light-load silent transmission).
Custom Surface Treatments: Includes black oxide finishing (anti-rust), quenching & tempering (overall toughening), tooth surface high-frequency quenching (local high hardness, wear resistance), carburising and nitriding treatment (ultra-high wear and fatigue resistance), as well as galvanisation and polishing, to extend service life and improve surface finish.

4. Key Performance Advantages for Parallel Shaft Systems

As a dedicated component for parallel shaft transmission systems, this 20° pressure angle custom spur gear has outstanding comprehensive performance, solving multiple pain points of traditional transmission gears:

Stable Parallel Shaft Meshing: The standard straight-tooth structure enables pure rolling meshing between two parallel shafts, no axial force during operation, effectively reducing shaft and bearing wear, and improving the overall stability of the transmission system.
High Load & Fatigue Resistance: The 20° pressure angle optimises the tooth root stress distribution, significantly improving the bending strength and contact fatigue strength of the gear teeth, making it suitable for long-term continuous operation under variable load and heavy-load conditions.
Low Vibration & Low Noise: Precision tooth finishing and accurate tooth profile correction ensure tight meshing fit, reduce meshing impact and friction noise, and meet the low-noise operation requirements of precision automation equipment.
High Transmission Efficiency: Straight-tooth meshing features simple transmission principle and low sliding friction, with transmission efficiency up to 98% or above, effectively reducing equipment energy consumption.
Easy Installation & Maintenance: Simple structural design, high assembly compatibility, convenient disassembly and replacement, and low daily maintenance cost, suitable for various modular parallel shaft transmission equipment.

5. Wide Application Scenarios

Benefiting from customisable specifications, stable performance and strong adaptability, this 20° pressure angle custom module spur gear is widely used in all kinds of mechanical equipment with parallel shaft transmission systems, covering multiple industries:

Automation equipment: Conveyor lines, automated assembly machines, sorting equipment, robotic transmission mechanisms;
Precision machinery: Instrumentation equipment, precision testing instruments, small precision transmission devices;
General industrial machinery: Packaging machinery, printing machinery, textile machinery, food processing machinery;
Heavy-duty equipment: Construction machinery, mining equipment, agricultural machinery, large transmission reduction devices;
Logistics and warehousing equipment: Warehouse lifting equipment, intelligent handling robots, transmission roller systems.

6. Customisation & Service Support

We provide one-stop customised services for spur gears, including professional technical solution design, parameter optimisation, prototype processing and mass production. Customers can provide custom requirements such as working load, rotating speed, installation space, working environment and drawing standards. Our professional engineering team will optimise gear module, tooth profile, material and heat treatment process to ensure that the final products fully meet the actual operating needs of customer equipment. All products undergo strict quality inspection including dimensional tolerance detection, hardness testing and meshing performance testing, with reliable quality and stable delivery cycle.
