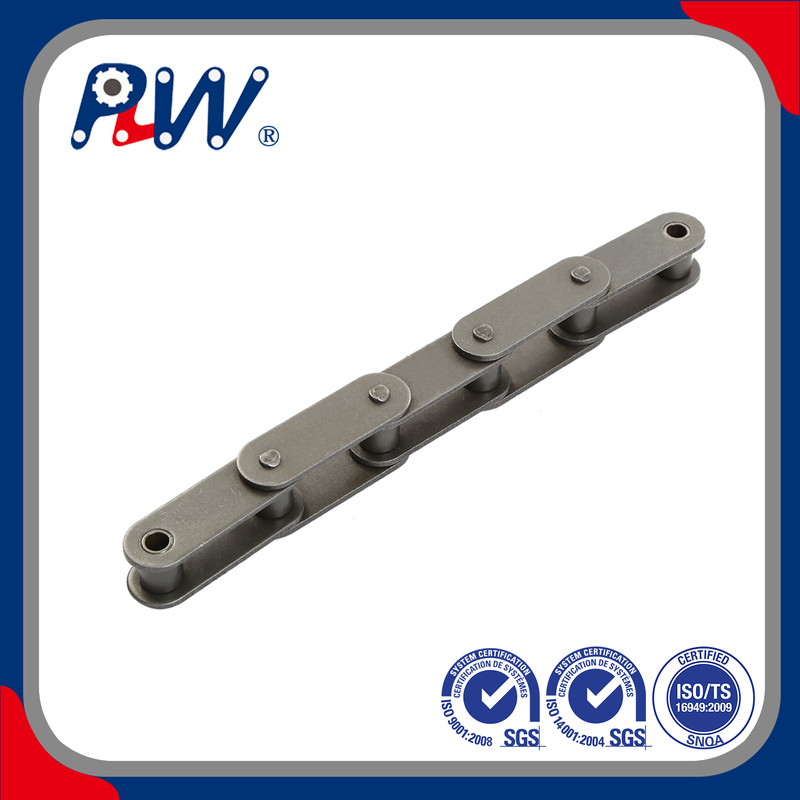

DOUBLE PITCH CONVEYOR CHAIN WITH SPECIAL ATTACHMENTS（GK-1）

DOUBLE PITCH CONVEYOR CHAIN WITH SPECIAL ATTACHMENTS（GK-1）

It refers to the installation of specially designed accessories on the basis of the two-pitch conveying chain according to the needs of the specific conveying task, in order to enhance the function of the chain or adapt to the specific conveying environment

Model:
C208A
Brand:
PLW or Made to order
Code:
7315119000
Material:
Carbon Steel
Transport Package:
Plastic Bag+Carton Box+Plywood Case
Trademark:
PLW
Origin:
CHINA
Standard Or Nonstandard:
Standard
Type:
Double Pitch Chain

Availability:

Quantity:



Inquire Add to Basket

Product Description

GK-1 Double Pitch Conveyor Chain with Special Attachments Product Introduction

Product Overview

GK-1 Double Pitch Conveyor Chain with Special Attachments is a professional customized conveying transmission chain designed for automated material handling and continuous conveying systems. Adopting standard double pitch structural design, this chain features lightweight structure, flexible operation and long service life compared with ordinary short-pitch chains. Equipped with matched GK-1 special attachments, it realizes stable clamping, lifting and conveying of various materials. With excellent wear resistance, low noise operation and strong compatibility, it is widely used in automated production lines, packaging equipment, food processing and general industrial conveying scenarios, serving as a core supporting component for efficient and stable material transportation systems.

Product Features & Advantages

Standard Double Pitch Structure: The optimized double pitch design reduces the overall chain weight and operating friction, effectively lowering driving power consumption. It ensures smoother running and better flexibility for long-distance conveying compared with conventional roller chains, perfectly adapting to low-speed and long-stroke conveying working conditions.
Custom GK-1 Special Attachments: Matched with exclusive GK-1 special attachments with precise sizing and stable welding/assembly. The attachments feature strong load-bearing capacity and accurate positioning, which can stably carry, push and lift workpieces, boxes and bulk materials, meeting diversified conveying and positioning requirements of automated equipment.
Excellent Wear & Fatigue Resistance: Manufactured with high-quality carbon steel and alloy steel materials, processed through integral heat treatment, quenching and tempering. The chain plates, rollers and pins feature high surface hardness and strong friction resistance, effectively avoiding elongation and wear during long-term continuous cyclic operation.
High Conveying Stability & Low Noise: Adopting precision stamping and fine machining technology, the chain pitch and assembly clearance are strictly controlled. The chain meshes smoothly with sprockets without jitter or deviation during operation, realizing low-noise and stable conveying, which improves the overall operating precision of automated production lines.
Strong Environmental Adaptability: With professional surface anti-rust and anti-corrosion treatment, the chain can work stably in conventional industrial environments such as dust, humidity and normal temperature. It is not easy to rust or deform, ensuring long-term stable operation of conveying equipment.
Easy Installation & Low Maintenance: Standard overall dimensions and high versatility enable easy installation, replacement and debugging. The integrated special attachments are firm and durable, with low failure rate, greatly reducing daily maintenance workload and equipment operating costs.

Technical Parameters

Product Model: GK-1 Double Pitch Conveyor Chain
Product Type: Double Pitch Roller Conveyor Chain with Special Attachments
Applicable Industries: Automated production lines, packaging machinery, food industry, logistics conveying, printing and textile machinery
Core Material: High-quality Carbon Steel / Alloy Steel (Customizable Stainless Steel)
Processing Technology: Precision stamping, CNC finishing, integral heat treatment, surface anti-rust treatment
Structural Feature: Double pitch lightweight structure + GK-1 customized special attachments
Performance: Wear-resistant, anti-rust, low noise, stable conveying, fatigue-resistant
Custom Service: Support chain length, attachment style, surface treatment and stainless steel customization

Wide Applications

GK-1 Double Pitch Conveyor Chains with special attachments are widely used in various automated conveying and transmission equipment. The main application scenarios include automated assembly lines, packaging and sorting machinery, food and beverage conveying equipment, logistics transportation systems, textile and printing machinery, and light industrial transmission equipment. It is especially suitable for long-distance, low-load, continuous and stable material conveying and workpiece transmission, and is a universal and high-cost-performance conveying chain for modern automated equipment.

Factory Strength & Service

We are a professional manufacturer of customized industrial conveyor chains and transmission chains, providing one-stop OEM and ODM customization services. All GK-1 double pitch conveyor chains are strictly inspected for size, hardness and tensile performance before delivery. With stable product quality, precise machining and reliable after-sales service, we support factory direct sales, bulk wholesale and personalized non-standard customization, providing high-quality chain transmission solutions for global industrial equipment customers.

DIN/ISO Chain No.	ANSI Chain No.	P		dz	d3	L	Lc
DIN/ISO Cadena No	ANSI Cadena No	mm		mm	mm	mm	mm
C208A C208AL	C2040 C2042	25.40	7.85	3.96	4.1	16.6	18.8
C210A C210AL	C2050 C2052	31.75	9.40	5.08	5.1	20.7	23.3
C212A C212AL	C2060 C2062	38.10	12.57	5.94	6.1	25.9	28.3
C212AH C212AHL	C2060H C2062H	38.10	12.57	5.94	6.1	29.2	31.6
C216A C216AL	C2080 C2082	50.80	15.75	7.92	8.1	32.7	36.5
C216AH C216AHL	C2080H C2082H	50.80	15.75	7.92	8.1	36.2	39.4
C220A C220AL	C2100 C2102	63.50	18.90	9.53	10.1	40.4	44.7
C220AH C220AHL	C2100H C2102H	63.50	18.90	9.53	10.1	43.6	46.9

35-1

CHAIN NO.	P	b1	d2	d3	L	Lc
Cadena No	mm	mm	mm	mm	mm	mm
C2050GKF2	31.75	9.40	5.08	8.1	20.7	22.2
C2050GKF3	31.75	9.40	5.08	8.1	20.7	22.2
C2050GKF4	31.75	9.40	5.08	7.0	20.7	22.2
C2050GKF5	31.75	9.40	5.08	7.1	20.7	22.2
C2050GKF6	31.75	9.40	5.08	6.0	20.7	22.2
C2050GKF7	31.75	9.40	5.08	6.1	20.7	22.2
C2050GKF8	31.75	9.40	5.08	8.3	20.7	22.2
C2050HGK	31.75	9.40	5.08	8.2	22.1	23.4
C2050HGKF1	31.75	9.40	5.08	7.0	22.1	23.4
C2050HGKF3	31.75	9.40	5.08	6.0	22.1	23.4
C2050HGKF4	31.75	9.40	5.94	8.1	22.1	23.4
C2060GKF1	38.10	12.57	5.94	8.0	25.9	27.7
C2060GKF2	38.10	12.57	5.94	8.1	25.9	27.7
C2060GKF3	38.10	12.57	5.94	6.2	25.9	27.7
C2060GKF8	38.10	12.57	5.94	8.8	25.9	27.7
C2060HGKF3	38.10	12.57	5.94	8.2	29.2	31.6
C2060HGKF4	38.10	12.57	5.94	8.3	29.2	31.6
C2060HGKF5	38.10	12.57	5.94	6.0	29.2	31.6
C2060HGKF6	38.10	12.57	5.94	8.3	29.2	31.6
C2060HGKF7	38.10	12.57	5.94	10.0	29.2	31.6
C2060HGKF10	38.10	12.57	5.94	8.8	29.2	31.6
C2080HGKF2	50.80	15.75	7.92	7.9	36.2	39.4
C2080HGKF6	50.80	15.75	7.92	11.0	36.2	39.4
C220AGK	63.50	18.90	9.53	8.0	40.4	44.7
C208BGKF1	25.40	7.75	4.45	6.0	16.7	18.2
