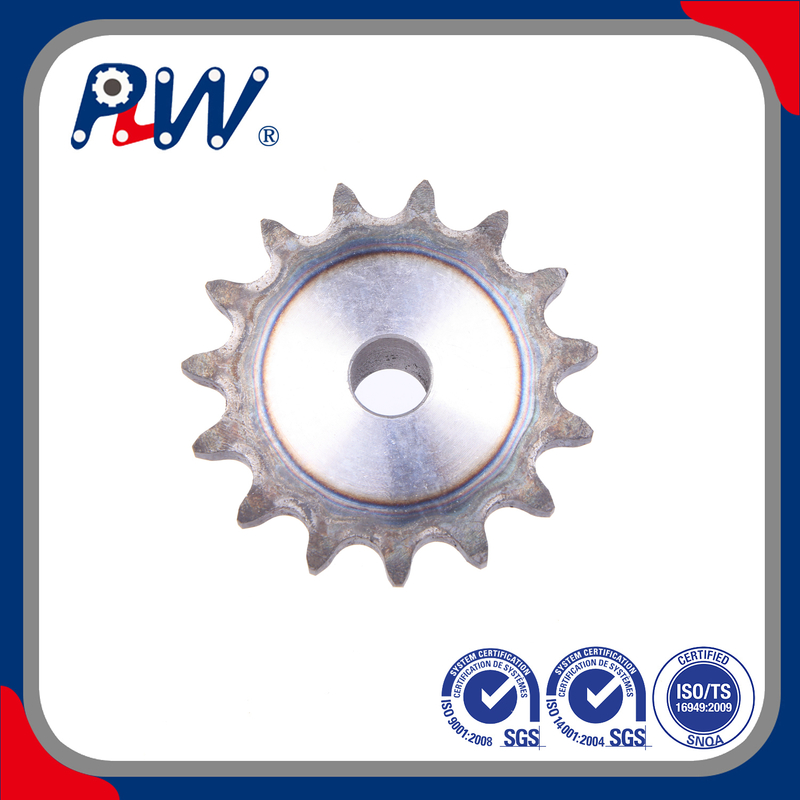

Durable Cast Iron Sprockets for Industrial Gearing

Durable Cast Iron Sprockets for Industrial Gearing

A standard sprocket is a transmission component used in conjunction with standard chains (such as roller chains, silent chains, etc.), achieving power transmission or material conveying through the meshing of its teeth with the chain.

Model:
Standard Sprocket
Brand:
PLW or Made to order
Material:
Alloy Steel/Stainless Steel
Transport Package:
Plywood Case
Trademark:
PLW
Origin:
CHINA
Standard Or Nonstandard:
Standard
Type:
Sprocket

Availability:

Quantity:



Inquire Add to Basket

Product Description

CAST IRON SPROCKETS

These solid cast iron sprockets are rugged drive wheels crafted for low-speed, heavy-torque industrial gearing systems. Made via one-time precision casting, the product features dense internal texture and exceptional vibration absorption capacity, perfectly matching roller chains for continuous stable conveying and mechanical drive.

Core Specifications

Raw Material: High-strength grey cast iron
Processing: Integral casting, tooth surface finish machining
Surface Option: Black anti-rust treatment
Matching Standards: ANSI, DIN, JIS roller chains
Customizable: Tooth quantity, hub bore, keyway, mounting thickness

Key Advantages

Excellent Vibration & Noise Damping

Cast iron’s unique metallic texture absorbs shock and running vibration far better than steel sprockets, delivering quieter operation on low-speed heavy-load production lines.
Superior Structural Stability

Dense cast structure resists deformation under long-duration static loads, not prone to bending even under sustained heavy torque output.
Natural Self-Lubricating Property

Internal graphite composition of cast iron reduces dry friction between chain and teeth, cutting wear rate and extending service cycle without frequent oil refilling.
Strong Corrosion Resistance

Uniform compact surface slows oxidation in damp workshop environments, outperforming ordinary untreated carbon steel sprockets in anti-rust performance.
Economical Mass Application

Cost-effective casting manufacturing process lowers overall procurement cost for large-batch equipment renovation and assembly line matching.

Application Fields

Slow-speed conveyor equipment, heavy machinery auxiliary transmission, textile processing lines, mine auxiliary drive systems, general industrial low-torque gearing assemblies

Packaging & After-Sales Terms

Packing: Anti-rust oil coating + foam buffer + export carton
Lead Time: Standard specifications in stock 3–5 working days, custom cast sprockets 8–15 days
Inspection: Complete tooth pitch and concentricity testing before delivery
Service: Custom hub design, batch OEM production, 12-month quality guarantee

sprocket.pdf

Application：

Cast iron sprockets are widely used in various mechanical equipment, such as conveyors, cranes, excavators, etc., to achieve power transmission and speed change. They work with the chain and drive the chain movement through the rotation of the sprocket, which drives the mechanical equipment to operate.

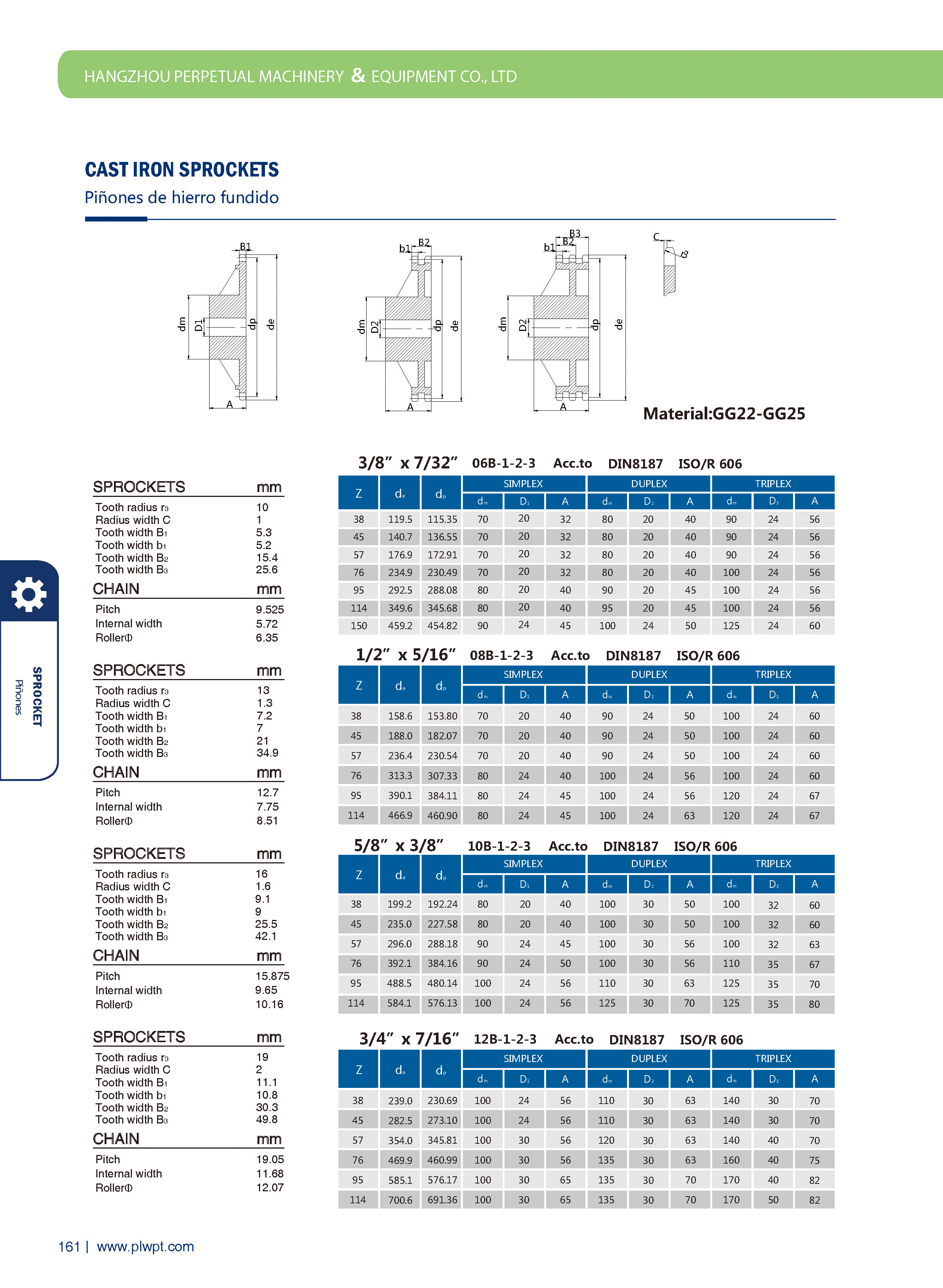

CAST IRON SPROCKETS-1
