Durable Steel Plate Wheels for Conveyor Chains

A sprocket is a mechanical transmission part with embedded chain teeth, which transmits power or motion by meshing with a chain.

Model:
Standard Sprocket
Brand:
PLW or Made to order
Material:
Alloy Steel/Stainless Steel
Transport Package:
Plywood Case
Trademark:
PLW
Origin:
CHINA
Standard Or Nonstandard:
Standard
Type:
Sprocket

Availability:

Quantity:



Inquire Add to Basket

Product Description

Durable Steel Plate Wheels for Conveyor Chains

Our Steel Plate Wheels are heavy-duty solid plate-type transmission wheels, specially designed to match industrial conveyor chains. Adopting integral steel plate stamping and forming technology, this wheel features solid structure, strong rigidity and excellent impact resistance. It serves as a stable guiding and supporting wheel for material conveying systems, perfectly adapting to long-time continuous running of conveyor equipment.

Core Specifications

Material: High-quality carbon steel plate, integral forming
Structure: Solid plate wheel design, no tooth / flat guiding type
Surface Treatment: Polishing, anti-rust oil coating
Features: High rigidity, anti-deformation, wear-resistant
Customization: Custom outer diameter, bore size and thickness available

Key Advantages

Solid Integrated Structure: Integral steel plate molding eliminates loose and deformation issues, with stronger load-bearing capacity than ordinary sprockets, suitable for heavy-load conveyor operation.
Smooth Chain Guidance: Precision flat surface finishing delivers friction-reducing chain movement, preventing chain scratch, jitter and abnormal wear during long-distance conveying.
Heavy-Load & Fatigue Resistant: Thickened steel plate structure provides outstanding rigidity, resisting pressure deformation and impact damage under continuous material transportation loads.
Low Maintenance Design: Toothless flat wheel structure avoids chain jamming and tooth breakage failures, greatly lowering daily maintenance frequency and equipment downtime.
Flexible Custom Fit: Supports customized outer diameter, inner bore, plate thickness and mounting dimensions to fit diverse standard and non-standard conveyor chain systems.

Application Scenarios

Ideal for industrial conveyor lines, logistics handling systems, automated production conveyors, food processing transmission equipment and general material conveying machinery, widely used for chain support, guiding and tension auxiliary operation.

Packaging & Service

Packaging: Rust-proof treatment + foam cushioning + standard export carton or wooden case
Lead Time: Standard sizes 3–5 working days; custom dimensions 7–12 working days
Quality Control: Strict flatness and dimension inspection before shipment
Warranty & Support: 12-month quality warranty, OEM size customization and professional technical matching service

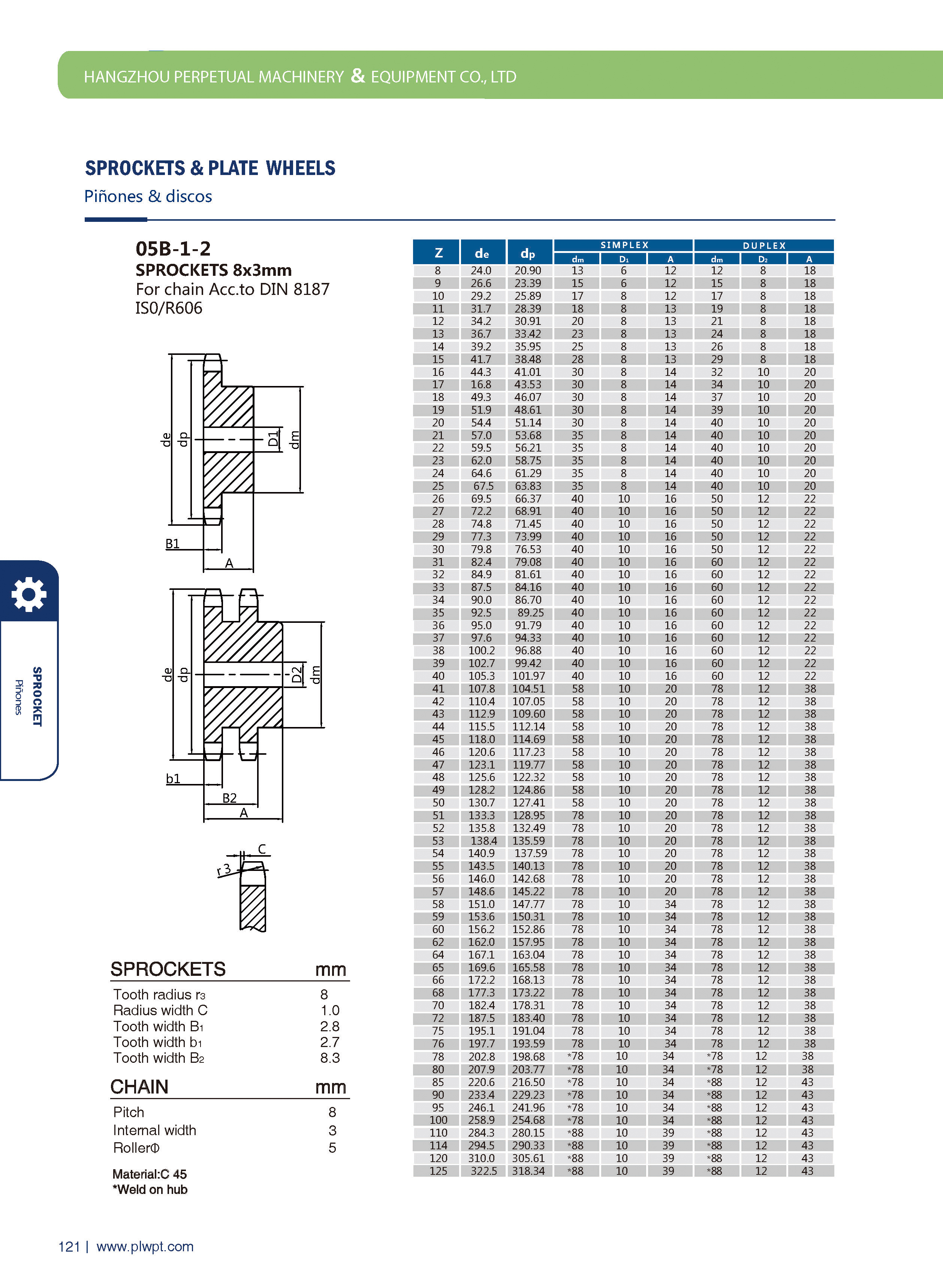

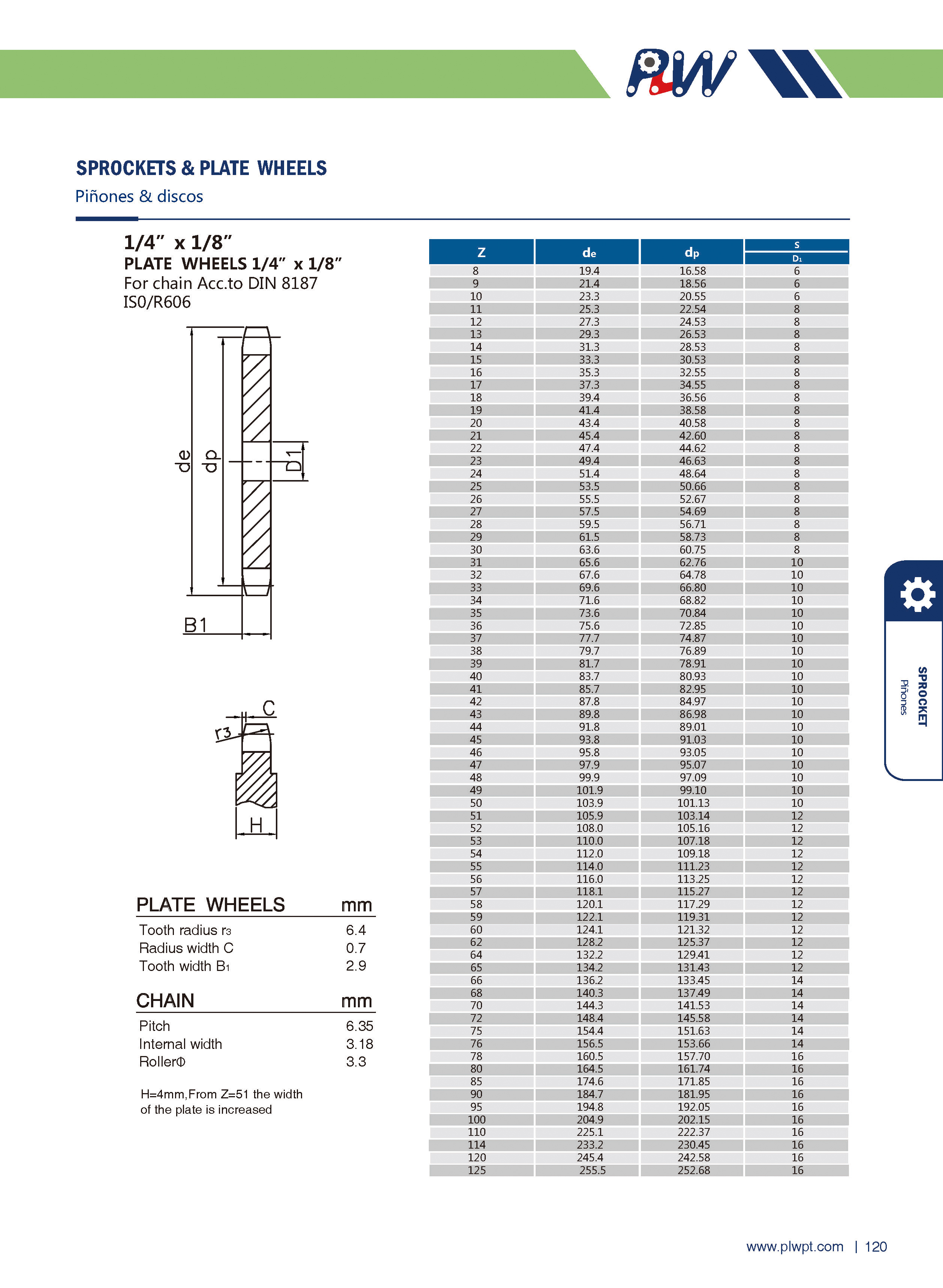

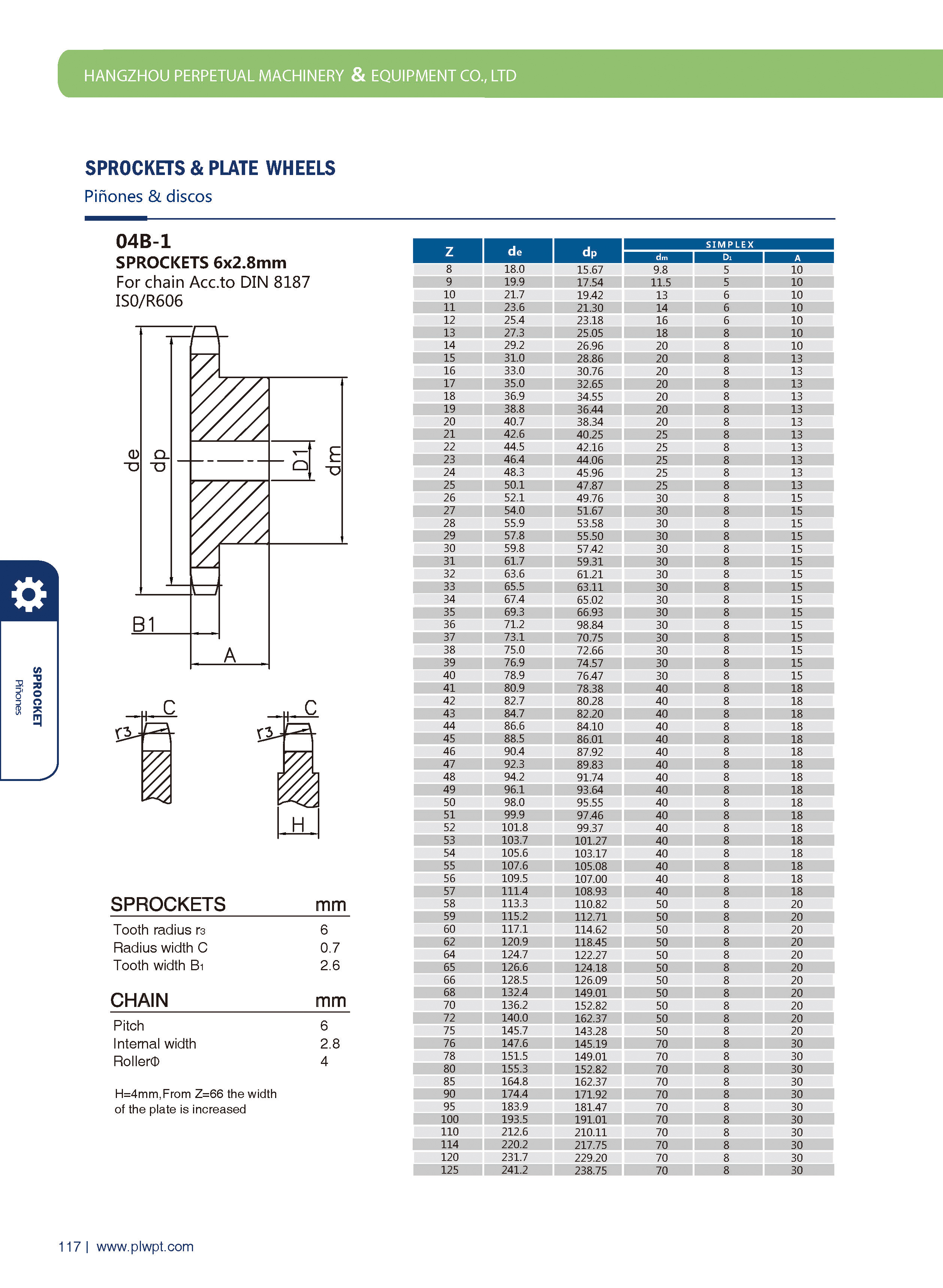

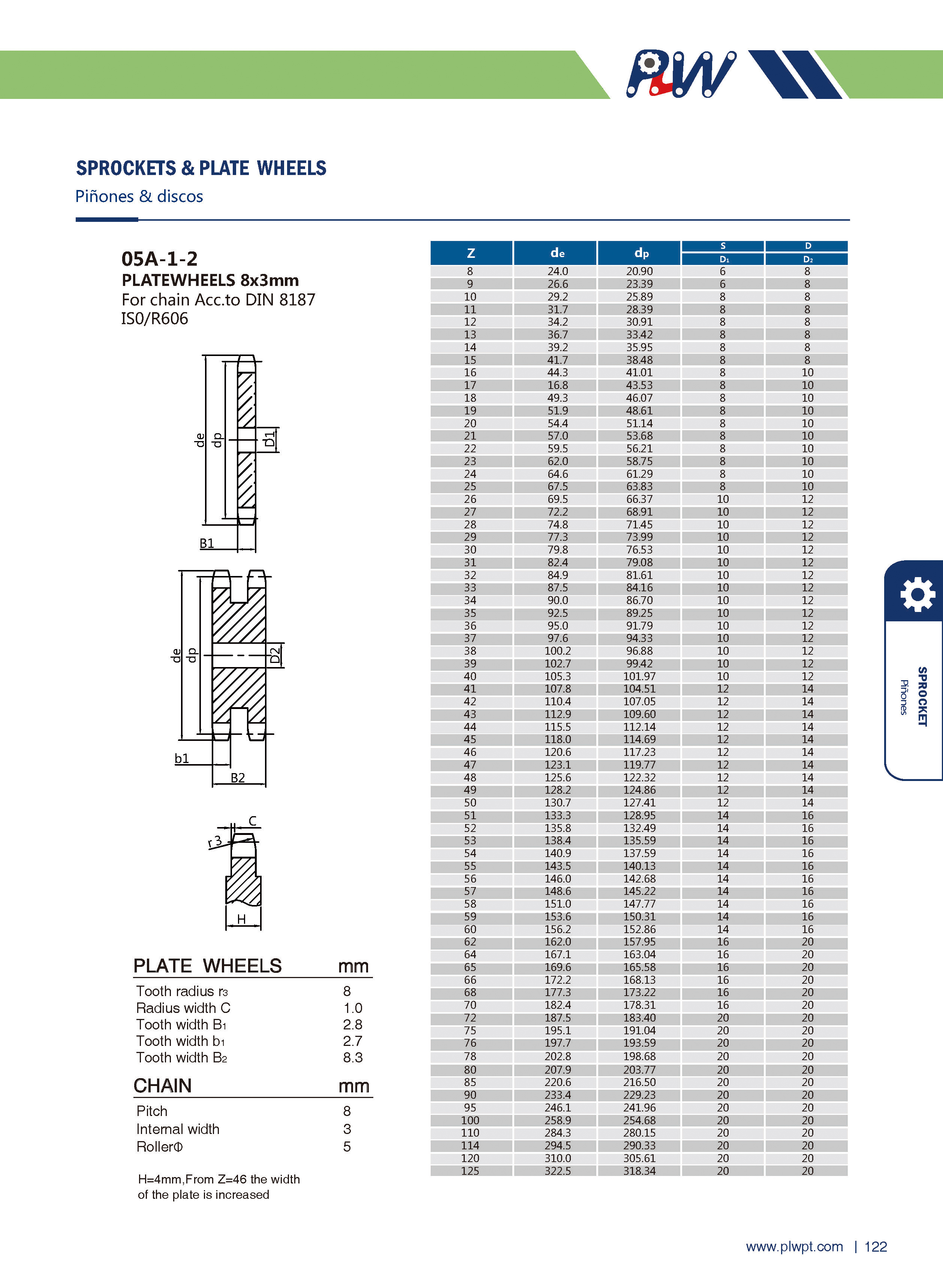

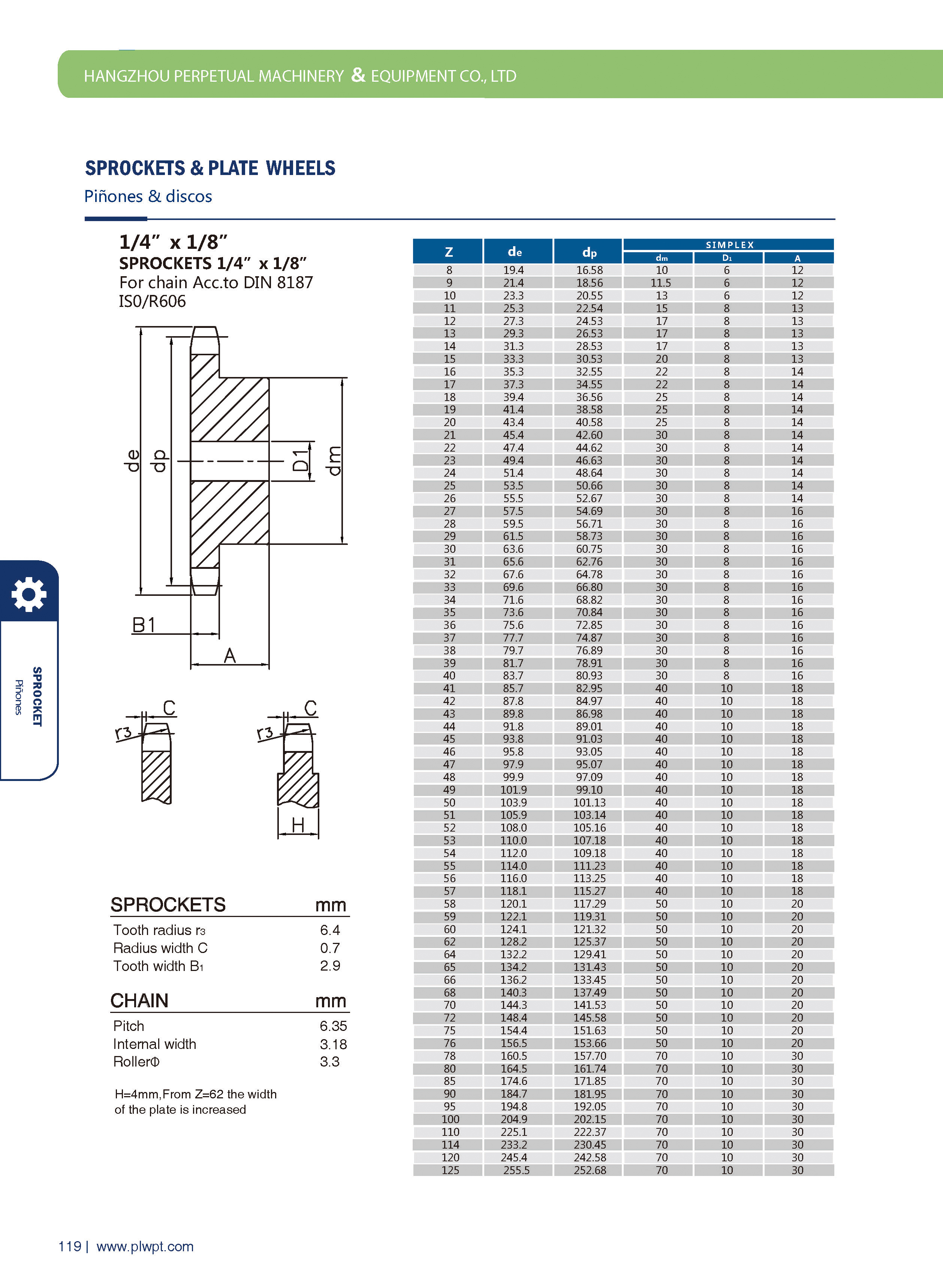

Sprocket.pdf
