Heavy Duty Series Roller Chains

1. Product Overview

Heavy Duty Series Roller Chains are designed for industrial power transmission applications that require enhanced mechanical strength, reliable operation, and resistance to demanding working conditions. Featuring reinforced link plates and a robust chain structure, these roller chains are suitable for compatible drive systems operating under higher loads than comparable standard-duty chain designs.

Manufactured according to specified dimensions and material requirements, heavy-duty roller chains are available in different sizes and configurations to meet various industrial transmission needs. They can be used in machinery, conveyor systems, agricultural equipment, material handling systems, and other industrial applications.

With options for different chain pitches, connecting links, attachment configurations, and surface treatments, Heavy Duty Series Roller Chains provide flexible solutions for equipment manufacturers, distributors, maintenance providers, and industrial replacement projects.

2. Key Features and Benefits

Reinforced Link Plate Design

Heavy-duty roller chains typically feature thicker or otherwise reinforced link plates compared with corresponding standard-duty chain series. This construction can increase tensile strength and improve resistance to demanding mechanical loads, depending on the specific model.

High-Strength Steel Construction

Steel components are selected according to the chain specification and intended application, providing the structural properties required for industrial power transmission.

Reliable Power Transmission

Precision-manufactured chain components support consistent engagement with compatible sprockets, helping maintain stable operation when properly installed and maintained.

Wear Resistance

Appropriate material selection, manufacturing processes, and lubrication help reduce wear between pins, bushings, rollers, and other chain components.

Wide Range of Configurations

Available configurations may include single-strand, multiple-strand, connecting-link, offset-link, and attachment-chain options, depending on the applicable series.

Industrial Durability

Designed for demanding operating environments, heavy-duty chains can be specified for equipment exposed to substantial mechanical loads, frequent operation, and industrial working conditions.

3. Product Specifications

Product Name: Heavy Duty Series Roller Chains

Product Type: Heavy-Duty Industrial Roller Chain

Material: Carbon Steel or other specified materials, depending on the model

Chain Structure: Reinforced link plate construction, according to series

Chain Configuration: Single-Strand, Double-Strand, Triple-Strand, or other available configurations

Chain Pitch: Available according to the selected model

Roller Diameter: According to chain specification

Inner Width: According to chain specification

Plate Thickness: Model-dependent

Pin Diameter: Model-dependent

Tensile Strength: According to manufacturer specifications

Working Load: To be confirmed for the selected chain and application

Surface Treatment: Available according to material and operating requirements

Lubrication: Factory lubrication or other specified options, depending on the product

Attachments: Available for compatible series and customized requirements

Application: Industrial power transmission and material handling

Customization: Dimensions, chain length, attachments, materials, and selected treatments

Note: Actual dimensions, minimum tensile strength, permissible working load, fatigue performance, and applicable standards should be confirmed against the exact chain model and technical documentation. Minimum tensile strength should not be treated as the allowable working load.

4. Available Chain Types

Single-Strand Heavy Duty Roller Chains

Designed for compatible single-strand chain drives, these chains are used in industrial machinery, mechanical transmission systems, and general-purpose drive equipment requiring reinforced chain construction.

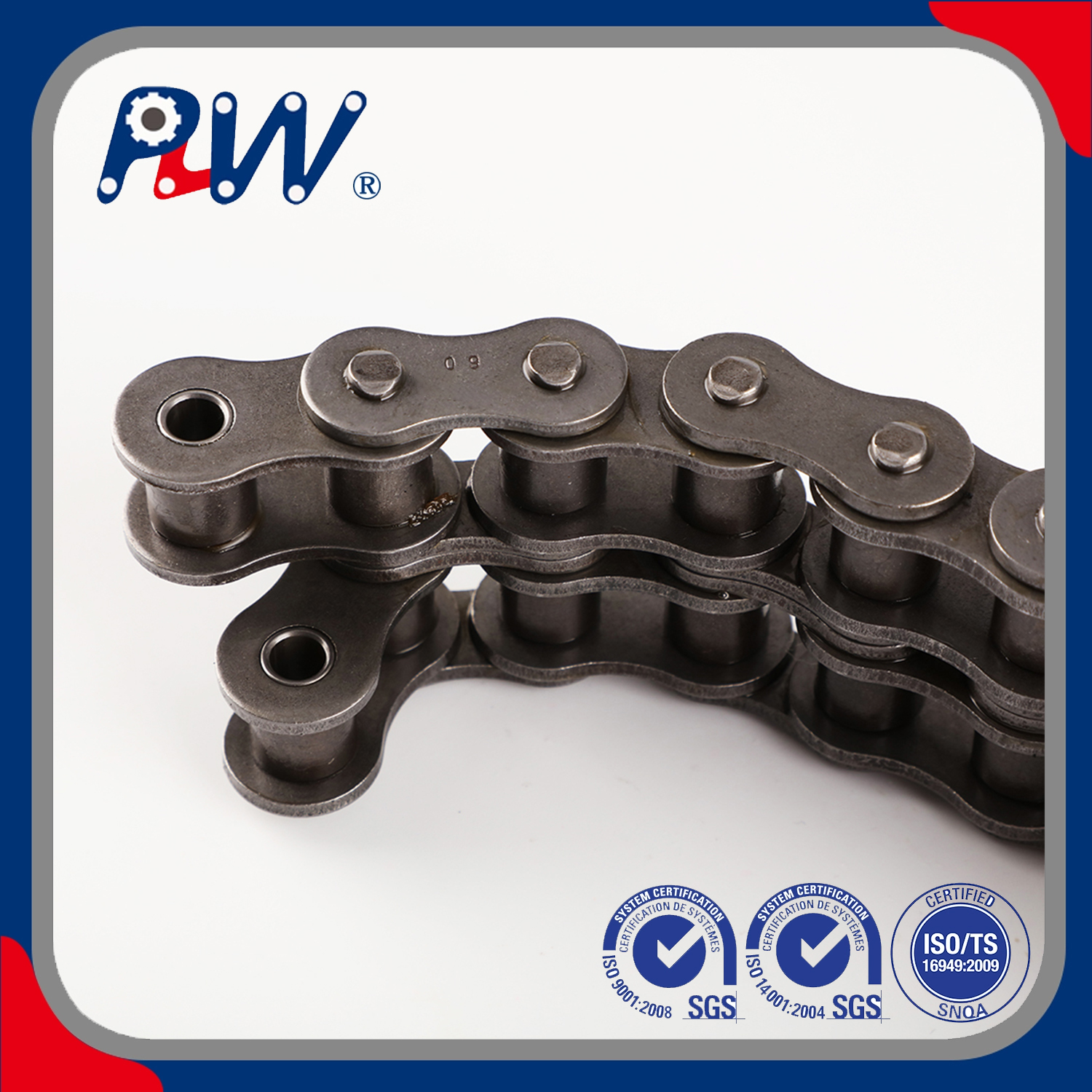

Double-Strand Heavy Duty Roller Chains

Double-strand chains provide two parallel rows of rollers and are designed for compatible duplex sprockets. They can be considered for applications requiring higher transmission capacity within the limits of the selected chain rating and drive design.

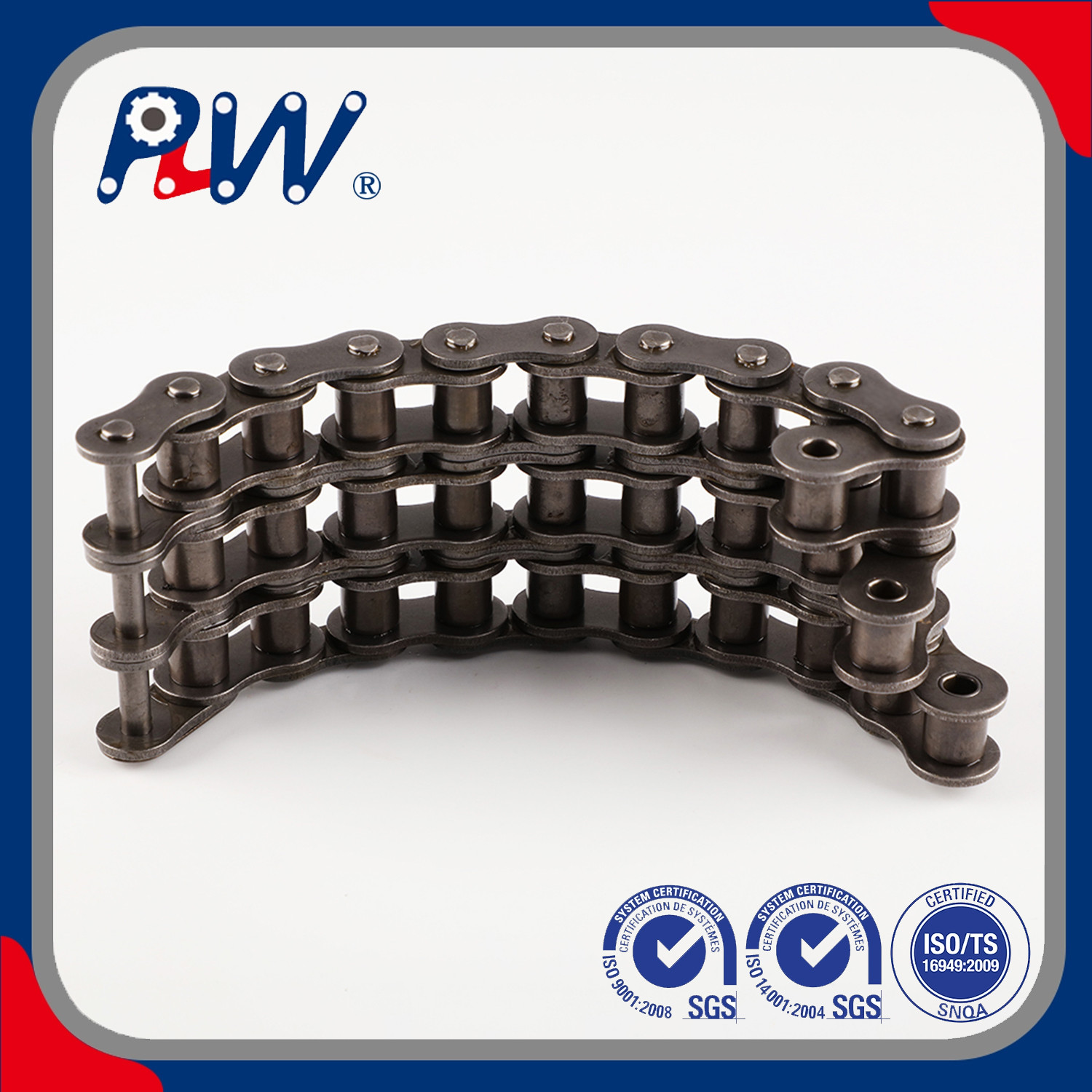

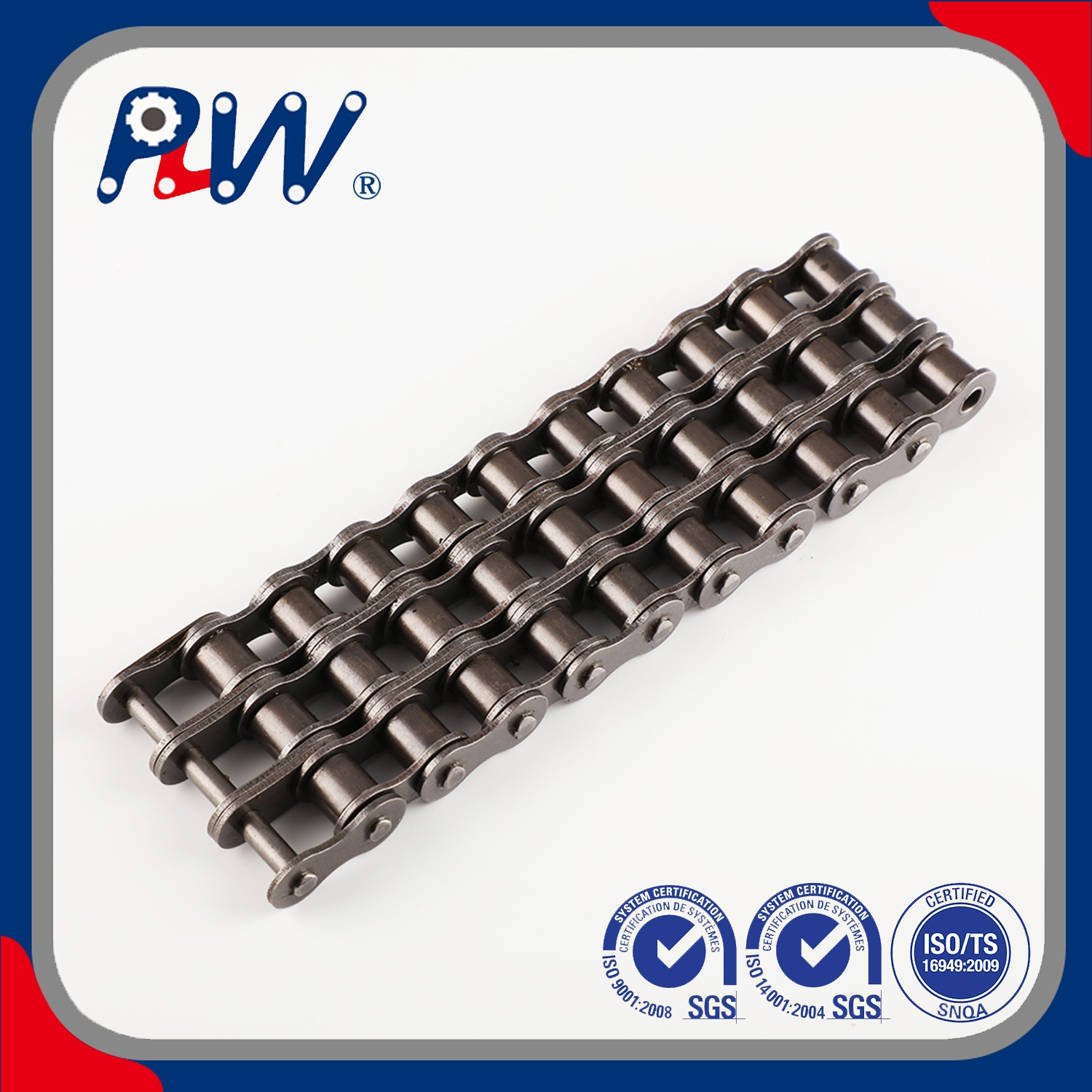

Triple-Strand Heavy Duty Roller Chains

Triple-strand chains are designed for compatible triplex sprockets and selected transmission systems requiring a multi-strand chain arrangement. Correct alignment, load distribution, and lubrication remain essential for reliable operation.

Custom Heavy Duty Roller Chains

Custom configurations may be available for specific dimensions, chain lengths, attachment requirements, and equipment designs, subject to technical review and manufacturing capabilities.

5. Industrial Applications

Industrial Machinery

Suitable for compatible mechanical drives in production equipment, manufacturing machinery, and industrial transmission systems.

Conveyor Systems

Used in selected conveyor drives and material handling equipment where chain strength and dimensional compatibility meet application requirements.

Agricultural Machinery

Can be specified for compatible agricultural equipment, crop handling machinery, and farm transmission systems.

Mining and Material Handling Equipment

Potentially suitable for selected heavy-duty conveying and material handling applications when the chain series is specifically rated for the operating load and environment.

Packaging and Processing Machinery

Used in compatible production lines and processing equipment requiring dependable mechanical chain transmission.

Industrial Maintenance and Replacement

Available for replacement applications where the existing chain model, sprocket compatibility, dimensions, and operating requirements can be verified.

6. Customization Options

We can evaluate heavy-duty roller chain solutions based on technical drawings, samples, equipment specifications, and operating requirements.

Chain Dimensions

Chain pitch, roller diameter, inner width, plate thickness, pin diameter, and chain length can be specified according to the selected series.

Strand Configuration

Single-strand, double-strand, and triple-strand options may be available according to the applicable chain series.

Attachment Options

Compatible attachment chains can be evaluated for conveying, positioning, feeding, and other equipment-specific functions.

Material Selection

Material specifications can be reviewed according to the required mechanical properties and working environment.

Surface Treatment

Applicable surface treatments can be considered for specific environmental conditions, subject to product design and manufacturing capability.

Chain Accessories

Connecting links, offset links, and other compatible accessories may be available according to the selected chain series.

OEM and Replacement Requirements

Custom or replacement chains can be evaluated using an existing model number, dimensional drawing, equipment information, or reference sample.

7. Quality Control

Quality control is essential to ensuring the dimensional consistency and mechanical performance of heavy-duty roller chains.

Inspection procedures may include:

• Verification of chain pitch and dimensional tolerances.

• Inspection of link plate thickness and component geometry.

• Verification of material specifications and heat treatment requirements.

• Inspection of pin, bushing, and roller assembly.

• Review of tensile strength and other specified mechanical test results.

• Inspection of chain articulation and assembly quality.

• Verification of compatibility with the specified sprocket and chain series.

Actual inspection procedures, testing standards, certificates, and performance values should be confirmed according to the manufacturer's documented quality system and the ordered product specification.

8. Why Choose Our Heavy Duty Roller Chains?

Reinforced Chain Construction

Heavy-duty designs can provide increased mechanical capacity compared with corresponding standard-duty chains, depending on the specific series.

Specification-Based Selection

Chain dimensions and mechanical ratings can be evaluated against the operating load, speed, sprocket configuration, and application environment.

Flexible Product Configurations

Multiple chain sizes, strand configurations, accessories, and attachment options may be available according to production capability.

Replacement and OEM Support

Existing chain specifications, drawings, and samples can help identify suitable replacement products or customized solutions.

Industrial Supply Support

Product requirements, order quantities, packaging, and delivery arrangements can be discussed with industrial buyers, distributors, and equipment manufacturers.

9. Frequently Asked Questions

Q1: What is a heavy-duty roller chain?

A heavy-duty roller chain is an industrial roller chain designed with reinforced construction, often including thicker or stronger link plates, to meet higher mechanical requirements than a corresponding standard-duty chain series.

Q2: What is the difference between standard and heavy-duty roller chains?

Heavy-duty chains generally feature reinforced components and may provide higher tensile strength or improved resistance to certain mechanical stresses. Actual performance differences depend on the chain series, dimensions, material, heat treatment, and manufacturer ratings.

Q3: Are heavy-duty roller chains suitable for high-load applications?

They may be suitable when the selected chain's allowable working load, fatigue performance, operating speed, lubrication requirements, and environmental conditions meet the application requirements. Proper engineering selection is essential.

Q4: Can heavy-duty roller chains be customized?

Customization may include chain length, compatible attachments, strand configuration, materials, and selected surface treatments, subject to the specific series and manufacturing capabilities.

Q5: How can I select the correct heavy-duty roller chain?

Confirm the chain model, pitch, roller diameter, inner width, sprocket specifications, required working load, operating speed, and working environment. For replacement projects, providing the existing chain sample or technical drawing is recommended.

Q6: What information is required for a quotation?

Please provide the chain model or standard, required dimensions, strand configuration, chain length, attachment requirements, order quantity, application, and delivery destination.

10. Contact Us

Looking for reliable Heavy Duty Series Roller Chains for industrial power transmission or material handling?

Send us your chain model, technical drawing, sample details, or equipment requirements. We can evaluate suitable chain configurations according to the required dimensions, operating conditions, and order quantity.

We welcome inquiries from industrial equipment manufacturers, wholesalers, distributors, maintenance providers, and OEM customers seeking heavy-duty roller chain solutions.
