High-Flexibility Side Bow Chains with Reinforced Side Plates
High-Flexibility Side Bow Chains with Reinforced Side Plates High-Flexibility Side Bow Chains with Reinforced Side Plates

loading

High-Flexibility Side Bow Chains with Reinforced Side Plates

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The side bend chain is a special type of chain, which is designed to have a larger gap between the inner and outer plates and the pin sleeve than the standard roller chain, which makes the chain have better lateral bending and twisting performance.

  • SB

  • PLW or Made to order

  • 7315119000

  • Carbon Steel

  • Plastic Bag+Carton Box+Plywood Case

  • PLW

  • CHINA

  • Standard

  • roller chain

Availability:
Quantity:
Inquire Add to Basket

High-Strength Side Bow Chains with Crown Wheel Pinion Gears - ANSI-Certified Flex Design (40SB)

Product Description

China Professional ISO DIN ANSI Zinc-Plated Industrial Transmission Roller Chain for Transportation with High Quality

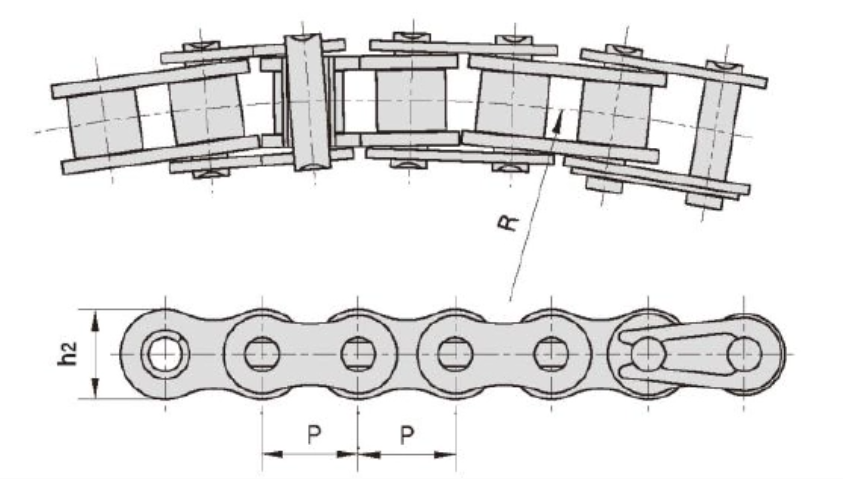

屏幕截图 2024-07-30 161120

CHAIN NO. Pitch Roller
    diameter		 Width
    between
    inner plates		 Pin
    diameter		 Pin   length Inner
    plate
    depth		 Plate
    thickness		 Side boW
    radus		 Ultimate
    tensile
    strength		 Average
    tensile
    strength		 Weight
    per meter
Cadena no Paso Diametro
    rodillo		 Ancho
    interior		 Diámetro
    pasador		 Longitud
    pasador		 Altura
    placas		 Ancho
    placas		 Radio
    curva
    lateral		 Resis.
    rotura		 Resis.
    media
    traccion		 Peso
    por metro
P d1
    max		 b1
    min		 d2
    max		 L
    max		 Lc
    max		 h2
    max		 t/T
    max		 R
    min		 Q
    min		 Qo q
mm mm mm mm mm mm mm mm mm kN/LB KN kg/m
40SB 12.700 7.95 7.85 3.96 16.9 18.1 11.7 1.50 350 13.8/3136 15.2 0.80
43SB 12.700 7.95 7.85 3.45 18.3 19.5 11.7 1.50 305 12.0/2727 13.2 0.64
50SB 15.875 10.16 9.40 4.37 20.7 22.7 14.9 2.03 400 20.6/4681 22.7 1.09
60SB 19.050 11.91 12.57 5.34 26.6 28.4 18.0 2.42 500 15.7/3568 17.3 1.54
63SB 19.050 11.91 12.68 5.08 28.8 30.6 17.2 2.42/2.03 350 12.5/2840 20.0 1.40
80SB 25.400 15.88 15.75 7.19 34.0 37.3 24.0 3.25 711 40.9/9201 42.0 2.60
06BSBF1 9.525 6.35 5.72 3.05 13.5 15.0 8.2 1.30 300 8.0/1818 8.8 0.60
08BSB 12.700 8.51 7.75 3.97 17.4 18.7 11.8 1.60 400 14.0/3182 15.4 0.70
08BSBF1 12.700 8.51 7.75 3.97 16.3 17.6 11.8 1.6/1.2 400 12.8/2909 14.1 0.65
10BSB 15.875 10.16 9.65 4.50 20.1 21.5 14.7 1.70 400 15.6/3545 172 0.93
12BSB 19.050 12.07 11.68 5.12 23.1 24.8 16.0 1.85 500 20.5/4658 22.6 1.16
16BSB 25.400 15.88 17.22 7.90 36.5 39.7 21.0 3.7/3.0 500 55.6/12635 64.0 2.53
C20505B 31.750 10.16 9.40 5.08 21.3 22.6 15.0 2.03 800 21.8/4954 24.0 0.84
C20605BF1 38.100 11.91 12.57 5.08 26.8 28.8 18.0 2.42 800 21.8/4954 24.0 1.17

High-Flexibility Side Bow Chains with Reinforced Side Plates

Our High-Flexibility Side Bow Chains with Reinforced Side Plates are engineered to excel in demanding curved and lateral-movement applications, combining exceptional lateral flexibility for navigating tight bends with reinforced side plates for superior durability and load-bearing capacity. Ideal for curved conveyors, packaging lines, material handling systems, and industrial automation, these chains deliver reliable, low-maintenance performance in challenging operational environments.

Core Features

  1. Enhanced Lateral Flexibility: Optimized pin-bushing clearances and precision link design enable smooth curving, twisting, and sideward motion, reducing jamming and misalignment risks during operation.

  2. Reinforced Side Plates: High-strength alloy steel side plates with increased thickness and precision heat treatment enhance fatigue resistance and ultimate tensile strength, supporting heavier loads versus standard side bow chains.

  3. Smooth Sprocket Engagement: Curved plate geometry ensures seamless interaction with sprockets, minimizing friction, noise, and wear for extended component life.

  4. Durable Construction: Hardened pins, bushings, and rollers, paired with corrosion-resistant finishes (e.g., zinc plating, stainless steel options), suit harsh industrial settings.

  5. Versatile Compatibility: Works with standard sprockets and supports custom attachments (e.g., flight bars, brackets) for diverse conveying needs.

Key Benefits

Benefit Description
Improved System Efficiency Reduced downtime from jams/misalignment; consistent material flow boosts throughput
Extended Service Life Reinforced plates and wear-resistant components lower replacement frequency and maintenance costs
Quiet, Low-Vibration Operation Smooth articulation minimizes noise and vibration for better workplace conditions and equipment longevity
Cost-Effective Integration Retrofits easily to existing conveyors with minimal workflow disruption

Technical Specifications (Typical)

Parameter Value
Pitch Sizes 0.500” (40SB) to 1.500”
Ultimate Tensile Strength 5,430–20,000+ lb (varies by pitch)
Material Options Carbon steel (heat-treated), stainless steel (304/316)
Side Bending Radius Customizable per application requirements
Strand Configurations Simplex, duplex, triplex
Attachments K1/K2 flight bars, extended pins, custom brackets

Applications

  • Packaging & Bottling: Curved conveyors for filling, labeling, and packaging lines

  • Food & Beverage: Sanitary stainless steel variants for processing and material handling

  • Automotive: Assembly lines requiring flexible part transport around workcells

  • Material Handling: Spiral elevators, spiral conveyors, and curved sorting systems

  • General Industry: Any curved/twisting conveyor needing reliable, heavy-duty performance

Installation & Maintenance Tips

  1. Alignment: Ensure sprockets and guides are correctly aligned to prevent side stress on links.

  2. Lubrication: Use high-performance lubricants (or self-lubricating options) to maximize wear resistance.

  3. Inspection: Regularly check for plate cracks, pin wear, or elongation; replace worn components promptly.

  4. Tensioning: Maintain proper chain tension to avoid excessive slack or tightness, which can accelerate wear.

Ordering Information

  • Standard Lengths: 10 ft boxes or 50 ft rolls; custom lengths available

  • Connector Links: Spring-loaded or riveted options included for easy assembly

  • Sprocket Compatibility: Works with standard ANSI sprockets; custom sprockets available for specialized curves

This chain combines high flexibility with rugged durability, making it the ideal choice for modern material handling systems requiring both agility and strength.
