Oil Field Chains for Heavy Duty Industrial Equipment
Share to:
Our chain solutions are available in different sizes and configurations to meet specific equipment requirements. Product selection should be based on chain dimensions, operating loads, working conditions, and equipment specifications.
Our Oil Field Chains are designed for reliable power transmission and operation in demanding industrial environments. Manufactured with quality materials and precision processing, these chains are suitable for various oilfield machinery and compatible industrial equipment.
With a focus on durability, wear resistance, and consistent performance, our oilfield chains help meet the requirements of industrial customers seeking dependable chain products for equipment maintenance, replacement, and new machinery manufacturing.

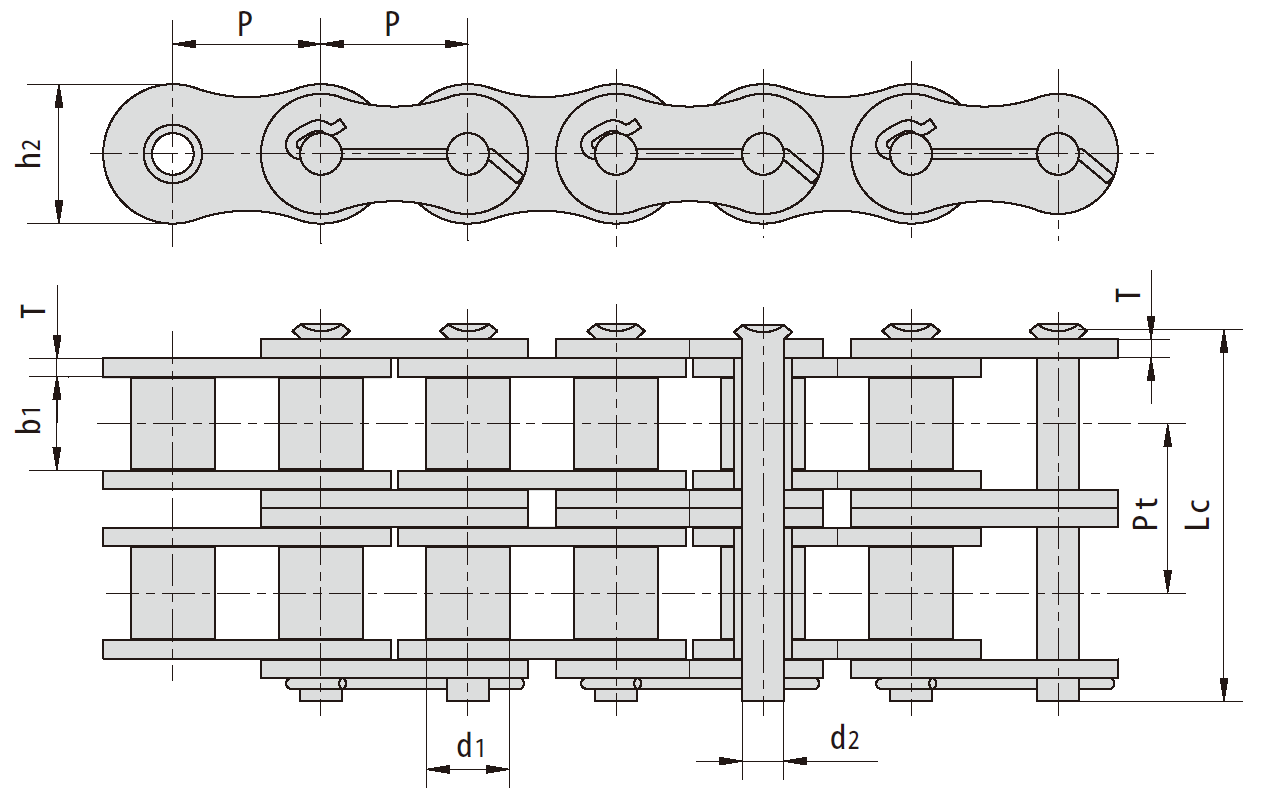

ANSI Chain No.
Chain No.
Pitch
Roller diameter
Width between inner plates
Pin diameter
Pin length
Inner plate depth
Plate thickness
Transverse pitch
Tensile strength
Weight per meter
P
d1max
b1min
d2max
Lcmax
h2max
Tmax
Pt
Qmin
q
mm
inch
mm
mm
mm
mm
mm
mm
mm
kN/lbf
kg/m
80
16S-1
25.400
1
15.88
15.75
7.92
37.55
24.1
3.25
-
55.60/12500
2.60
100
20S-1
31.750
1 1/4
19.05
18.90
9.53
44.30
30.0
4.00
-
86.87/19500
3.91
120
24S-1
38.100
1 1/2
22.23
25.22
11.10
54.40
36.2
4.80
-
125.10/28100
5.62
140
28S-1
44.450
1 3/4
25.40
25.22
12.70
59.00
42.2
5.60
-
170.27/38300
7.50
160
32S-1
50.800
2
28.58
31.55
14.27
69.60
48.2
6.40
-
222.40/50000
10.10
180
36S-1
57.150
2 1/4
35.71
35.48
17.46
78.60
54.3
7.20
-
281.47/63300
13.45
200
40S-1
63.500
2 1/2
39.68
37.85
19.85
87.20
60.3
8.00
-
347.50/78100
16.15
80-2
16S-2
25.400
1
15.88
15.75
7.92
66.80
24.1
3.25
29.29
111.20/25000
5.15
100-2
20S-2
31.750
1 1/4
19.05
18.90
9.53
80.50
30.1
4.00
35.76
173.74/39000
7.80
120-2
24S-2
38.100
1 1/2
22.23
25.22
11.10
99.70
36.2
4.80
45.44
250.20/56200
11.70
140-2
28S-2
44.450
1 3/4
25.40
25.22
12.70
107.80
42.2
5.60
48.87
340.54/76600
15.14
160-2
32S-2
50.800
2
28.58
31.55
14.27
127.50
48.2
6.40
58.55
444.80/100000
20.14
180-2
36S-2
57.150
2 1/4
35.71
35.48
17.46
144.40
54.3
7.20
65.84
562.94/126600
29.22
200-2
40S-2
63.500
2 1/2
39.68
37.85
19.85
158.80
60.3
8.00
71.55
695.00/156200
32.24
80-3
16S-3
25.400
1
15.88
15.75
7.92
96.10
24.1
3.25
29.29
166.80/37500
7.89
100-3
20S-3
31.750
1 1/4
19.05
18.90
9.53
116.30
30.1
4.00
35.76
260.61/58500
11.77
120-3
24S-3
38.100
1 1/2
22.23
25.22
11.10
145.20
36.2
4.80
45.44
375.30/84300
17.53
140-3
28S-3
44.450
1 3/4
25.40
25.22
12.70
156.80
42.2
5.60
48.87
510.81/114900
22.20
160-3
32S-3
50.800
2
28.58
31.55
14.27
186.60
48.2
6.40
58.55
667.20/150000
30.02
180-3
36S-3
57.150
2 1/4
35.71
35.48
17.46
210.20
54.3
7.20
65.84
844.41/189900
38.22
200-3
40S-3
63.500
2 1/2
39.68
37.85
19.85
230.40
60.3
8.00
71.55
1042.50/234300
49.03
200H-3
40HS-3
63.500
2 1/2
39.68
37.85
19.85
249.60
60.3
9.50
78.31
1042.50/234300
56.74

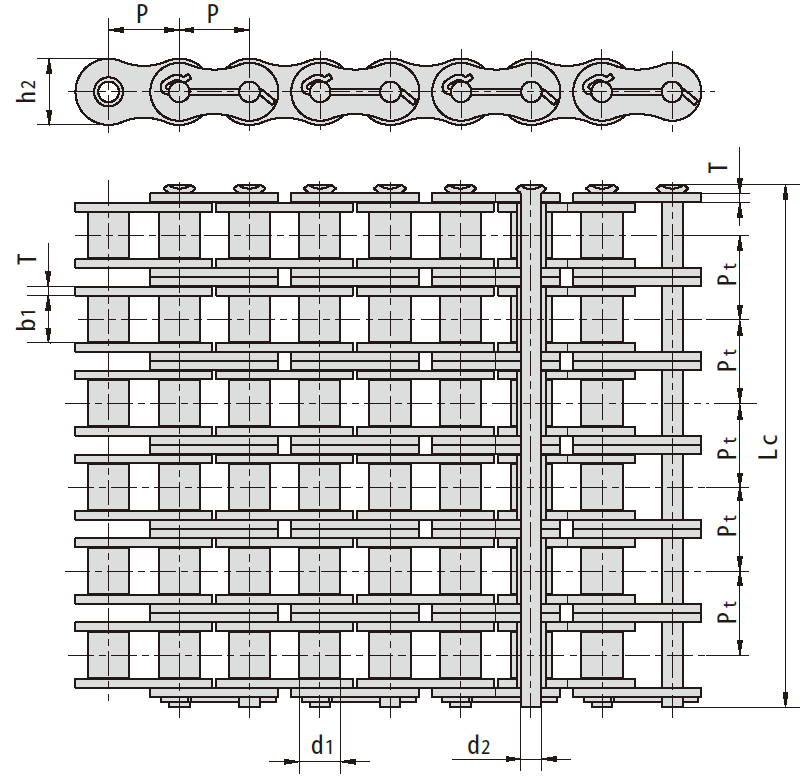

ANSI
Chain No.
Pitch
Roller diameter
Width between inner plates
Pin diameter
Pin length
Inner plate depth
Plate thickness
Transverse pitch
Tensile strength
Weight per meter
ANSI Chain No.
P
d1max
b1min
d2max
Lcmax
h2max
Tmax
Pt
Qmin
q
mm
inch
mm
mm
mm
mm
mm
mm
mm
kN/lbf
kg/m
80-4
16S-4
25.400
1
15.88
15.75
7.92
122.9
24.1
3.25
29.29
222.40/50000
10.24
100-4
20S-4
31.750
1 1/4
19.05
18.90
9.53
151.5
30.1
4.00
35.76
347.48/78000
15.39
120-4
24S-4
38.100
1 1/2
22.23
25.22
11.10
190.6
36.2
4.80
45.44
500.40/112400
22.19
140-4
28S-4
44.450
1 3/4
25.40
25.22
12.70
205.7
42.2
5.60
48.87
681.08/153200
29.63
160-4
32S-4
50.800
2
28.58
31.55
14.27
245.2
48.2
6.40
58.55
889.60/200000
39.94
200-4
40S-4
63.500
2 1/2
39.68
37.85
19.85
302.0
60.3
8.00
71.55
1390.00/312400
63.60
80-5
16S-5
25.400
1
15.88
15.75
7.92
152.2
24.1
3.25
29.29
278.00/62500
12.79
100-5
20S-5
31.750
1 1/4
19.05
18.90
9.53
187.8
30.1
4.00
35.76
434.35/97500
19.22
120-5
24S-5
38.100
1 1/2
22.23
25.22
11.10
236.1
36.2
4.80
45.44
625.50/140500
27.71
140-5
28S-5
44.450
1 3/4
25.40
25.22
12.70
254.6
42.2
5.60
48.87
851.35/193486
39.20
160-5
32S-5
50.800
2
28.58
31.75
14.27
303.3
48.2
6.40
58.55
1112.00/252724
52.40
80-6
16S-6
25.400
1
15.88
15.75
7.92
181.5
24.1
3.25
29.29
333.60/75000
15.34
100-6
20S-6
31.750
1 1/4
19.05
18.90
9.53
223.6
30.1
4.00
35.76
521.22/117000
23.05
120-6
24S-6
38.100
1 1/2
22.23
25.22
11.10
281.6
36.2
4.80
45.44
750.60/168600
33.24
140-6
28S-6
44.450
1 3/4
25.40
25.22
12.70
303.4
42.2
5.60
48.87
1021.62/229800
44.38
160-6
32S-6
50.800
2
28.58
31.55
14.27
362.3
48.2
6.40
58.55
1334.40/300000
59.83
200-6
40S-6
63.500
2 1/2
39.68
37.85
19.85
445.0
60.3
8.00
71.55
2085.00/468600
95.23
80-8
16S-8
25.400
1
15.88
15.75
7.92
240.1
24.1
3.25
29.29
444.80/100000
20.44
100-8
20S-8
31.750
1 1/4
19.05
18.90
9.53
295.1
30.1
4.00
35.76
694.96/156000
30.71
120-8
24S-8
38.100
1 1/2
22.23
25.22
11.10
372.4
36.2
4.80
45.44
1000.80/224800
44.28
140-8
28S-8
44.450
1 3/4
25.40
25.22
12.70
401.1
42.2
5.60
48.87
1362.16/309578
62.21
Product Features
1. Durable Construction Made from quality materials and manufactured according to specified requirements, our oil field chains are designed to provide dependable performance in suitable operating conditions.
2. Good Wear Resistance Precision manufacturing and appropriate processing help improve wear resistance and support stable chain operation during continuous use.
3. Reliable Power Transmission Carefully manufactured chain components help ensure smooth engagement and reliable power transmission in compatible mechanical systems.
4. Multiple Specifications Available Different chain sizes, pitches, configurations, and dimensions can be supplied according to product availability and customer requirements.
5. Custom Manufacturing Service OEM customization and special specifications can be discussed according to drawings, samples, or technical requirements.
Product Applications
Oil Field Chains can be used in suitable equipment and mechanical systems, including:
Oilfield machinery and related equipment
Oil drilling equipment
Industrial power transmission systems
Oil and gas industry machinery
Equipment maintenance and replacement applications
The appropriate chain type should be selected according to the equipment design, operating load, working environment, and manufacturer's specifications.
Product Specifications
Product Name: Oil Field Chains
Product Type: Industrial Chain
Material: According to product specifications
Chain Size: Standard or customized options, subject to availability
Chain Pitch: Available according to model
Surface Treatment: According to product requirements
Heat Treatment: According to manufacturing specifications
Application: Oilfield and industrial equipment
Customization: OEM / ODM available upon confirmation
Packaging: Standard export packaging or customized packaging options
Manufacturing and Quality Control
We focus on precision manufacturing and quality control throughout the production process. Depending on the chain type and specifications, manufacturing processes may include component machining, heat treatment, assembly, and inspection.
Product dimensions and quality requirements can be confirmed according to customer drawings, samples, or agreed technical specifications to help ensure compatibility with the intended equipment.
Why Choose Our Oil Field Chains?
Reliable products for industrial applications
Multiple specifications to meet different equipment requirements
Customized manufacturing according to technical requirements
Quality control throughout the manufacturing process
Support for wholesale orders and industrial customers
Professional communication and export order support
We aim to establish long-term business relationships with oilfield equipment manufacturers, industrial distributors, wholesalers, and international trading companies.
Ordering Information
To help us recommend a suitable oil field chain, please provide the following information:
Required chain model or part number
Chain pitch and dimensions
Application and equipment type
Required quantity
Drawings or product samples, if available
Packaging and customization requirements
Our team will review your requirements and provide suitable product information and a quotation.
Contact Us
Looking for a reliable Oil Field Chains supplier?
Contact us today to discuss your requirements, request product specifications, and explore OEM customization options. We look forward to supporting your business with suitable industrial chain solutions.
