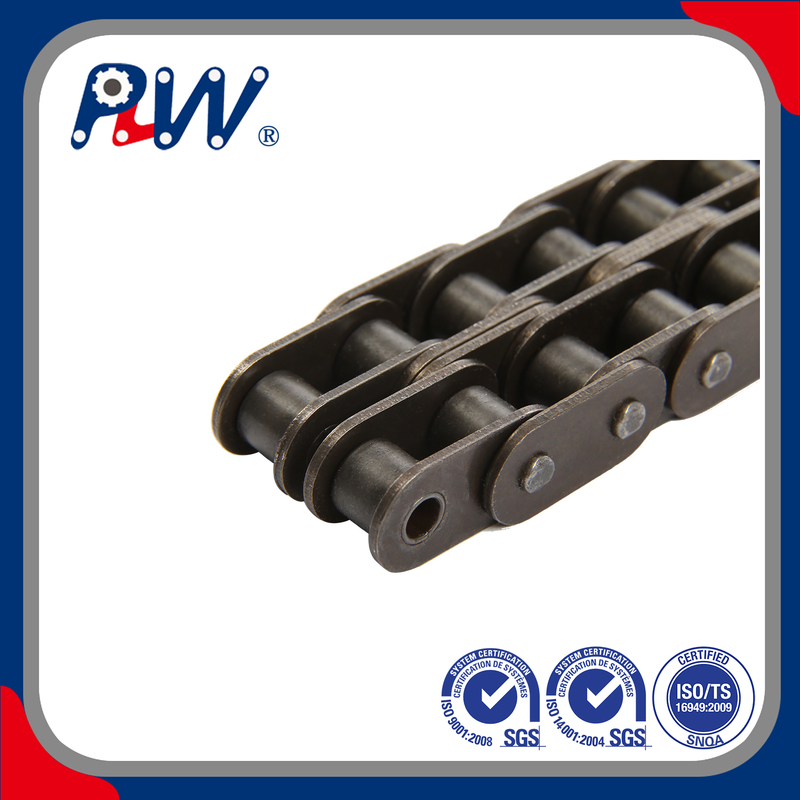

The straight-sided roller chain, as its name implies, features straight link plates with specially shaped sides to accommodate specific transmission requirements.
  • B series

  • PLW or Made to order

  • 7315119000

  • Carbon Steel

  • for Free

  • Plastic Bag+Carton Box+Plywood Case

  • Roller Chain

  • Oil Blooming

  • B series

  • Has linear sides

  • Standard

  • Manufacturing industry,Energy and mining,Transportation

Availability:
Quantity:

ROLLER CHAINS WITH STRAIGHT SIDE PLATES (A SERIES)

Product Description

China Professional ISO DIN ANSI Zinc-Plated Industrial Transmission Roller Chain for Transportation with High Quality

Straight side plate roller chain, as the name suggests, the chain plate is straight, and the side plate design has certain characteristics. This kind of chain is usually composed of an inner chain plate, an outer chain plate, a pin, a sleeve and a roller, wherein the roller and the sleeve, the sleeve and the pin are gap coordination, working between the inner and outer chain nodes can be relatively deflected, the sleeve can be freely rotated around the pin shaft, and the roller is set on the sleeve to reduce the wear between the chain and the sprocket. The design of the straight side plate helps to enhance the side stability of the chain and reduce the side offset, thus improving the transmission efficiency and accuracy.


Application:

Manufacturing industry: the transmission system used for all kinds of mechanical equipment, such as machine tools, textile machinery, packaging machinery, etc.

Energy and mining: used for conveying equipment and heavy machinery transmission in mining, oil, gas and other industries.

Transportation: In the field of railway, port, ship and other transportation, used to drive various equipment and systems.



24-1

DIN/ISO
Chain
No.
Pitch Roller
diameter
Width
between
Inner plates
Pin
diameter
Pin
length
Inner
plate
depth
Plate
thickness
Transverse
pitch
Ultimate
tensile
strength
Average
tensile
strength
Weight
per meter
DIN/ISO
Cadena
No
Paso Diámetro
rodillo
Ancho
interior
Diámetro
pasador
Longitud
pasador
Altura
placas
Ancho
placas
Paso
transversal
Resis.
rotura
Resis.
media
tracción
Peso
por
metro
P d1
max
bi
min
d2
max
L
max
Lc
max
h2
max
t/T
max
Pt Q
min
Qo q
mm mm mm mm mm mm mm mm mm kN/LB KN kg/m
C08B-1 12.700 8.51 7.75 4.45 16.7 18.2 11.8 1.60 - 18.0/4091 19.5 0.80
C10B-1 15.875 10.16 9.65 5.08 19.5 20.9 14.7 1.70
22.4/5091 27.9 1.06
C12B-1 19.050 12.07 11.68 5.72 22.5 25.2 16.0 1.85 - 29.0/6591 32.2 1.32
C16B-1 25.400 15.88 17.02 8.28 36.1 39.1 21.0/24.0 4.15/3.1
60.0/13636 72.8 3.08/3.49
C20B-1 31.750 19.05 19.56 10.19 41.3 45.0 26.4 4.5/3.5 - 95.0/21591 106.7 4.16
C24B-1 38.100 25.40 25.40 14.63 53.4 57.8 33.2 6.0/4.8 - 160.0/36364 178.0 7.47
C28B-1 44.450 27.94 30.99 15.90 65.1 69.5 36.7 7.5/6.0 - 200.0/45455 222.0 9.90
C32B-1 50.800 29.21 30.99 17.81 66.0 71.0 42.0 7.0/6.0 - 250.0/56818 277.5 10.45
C08B-2 12.700 8.51 7.75 4.45 31.2 32.2 11.8 1.60 13.92 32.0/7273 38.7 1.45
C10B-2 15.875 10.16 9.65 5.08 36.1 37.5 14.7 1.70 16.59 44.5/10114 57.8 2.00
C12B-2 19.050 12.07 11.68 5.72 42.0 44.7 16.0 1.85 19.46 57.8/13136 66.1 2.62
C16B-2 25.400 15.88 17.02 8.28 68.0 71.0 21.0/24.0 4.15/3.1 31.88 106.0/24091 133.0 6.10/6.92
C20B-2 31.750 19.05 19.56 10.19 77.8 81.5 26.4 4.5/3.5 36.45 170.0/38636 211.2 8.23
C24B-2 38.100 25.40 25.40 14.63 101.7 106.2 33.2 6.0/4.8 48.36 280.0/63636 319.2 14.77
C28B-2 44.450 27.94 30.99 15.90 124.6 129.1 36.7 7.5/6.0 59.56 360.0/81818 406.8 19.82
C32B-2 50.800 29021 30.99 17.81 124.6 129.6 42.0 7.0/6.0 58.55 450.0/102273 508.5 20.94
C08B-3 12.700 8.51 7.75 4.45 45.1 46.1 11.8 1.60 13.92 47.5/10795 57.8 2.10
C10B-3 15.875 10.16 9.65 5.08 52.7 54.1 14.7 1.70 16.59 66.7/15159 84.5 2.87
C12B-3 19.050 12.07 11.68 5.72 61.5 64.2 16.0 1.85 19.46 8607/19705 101.8 3.89
C16B-3 25.400 15.88 17.02 8.28 99.8 102.9 21.0/24.0 4.15/3.1 31.88 160.0/36364 203.7 9.12/10.34
C20B-3 31.750 19.05 19.56 10.19 114.2 117.9 26.4 4.5/3.5 36.45 250.0/56818 290.0 11.34
C24B-3 38.100 25.40 25.40 14.63 150.1 154.6 33.2 6.0/4.8 48.36 425.0/96591 493.0 22.10
C28B-3 44.450 27.94 30.99 15.90 184.2 188.7 36.7 7.5/6.0 59.56 530.0/120454 609.5 29.64
C32B-3 50.800 29.21 30.99 17.81 183.2 188.2 42.0 7.0/6.0 58.55 670.0/152273 770.5 31.27
