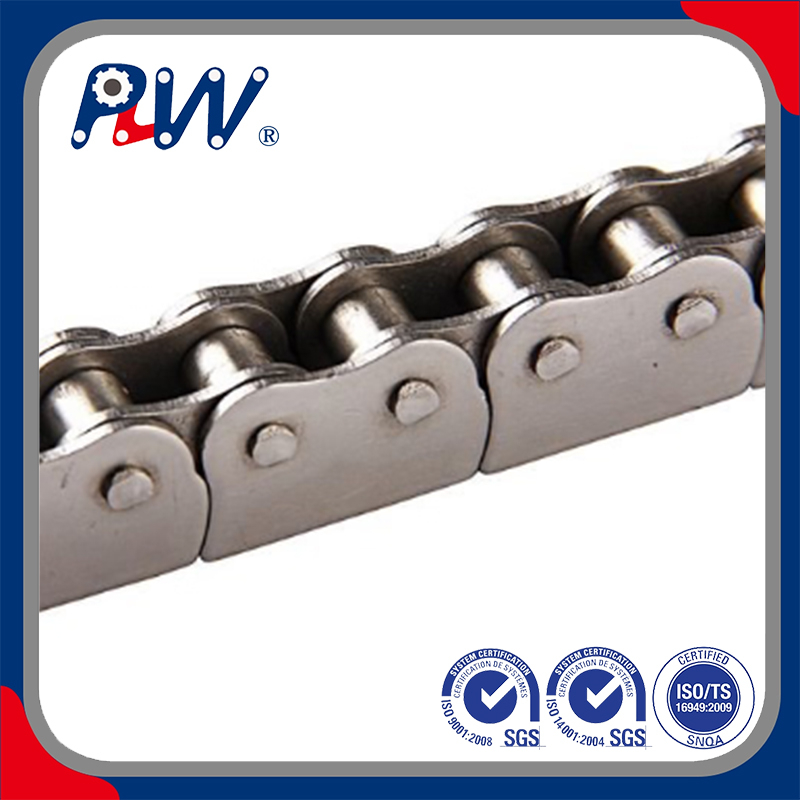

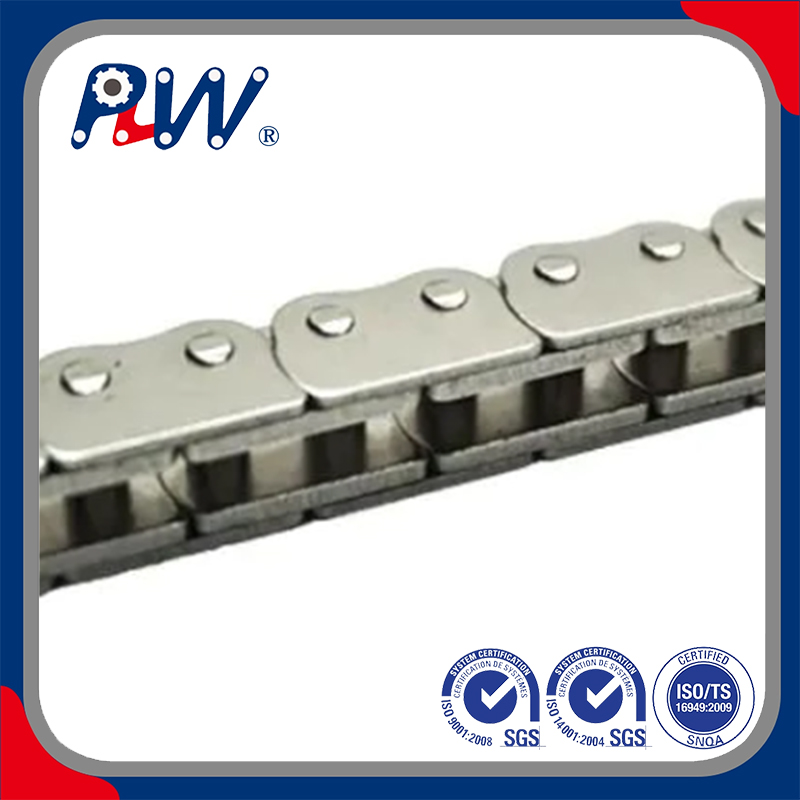

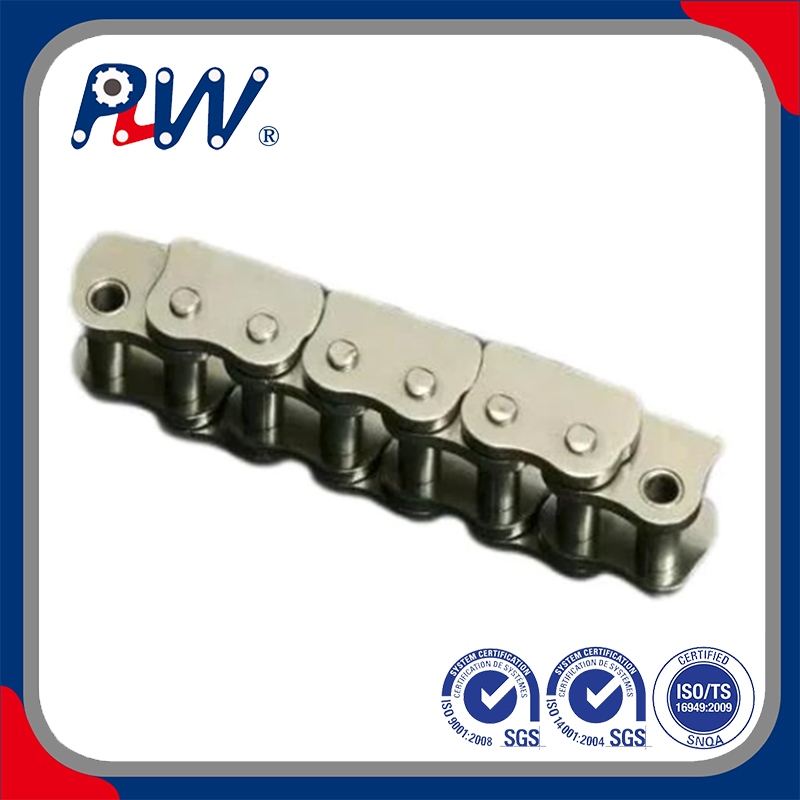

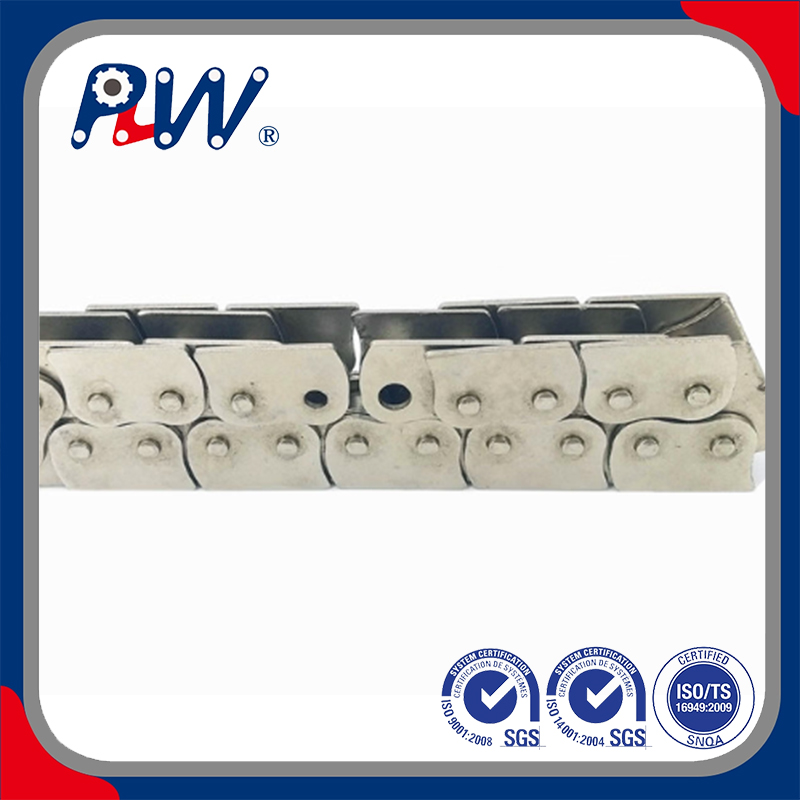

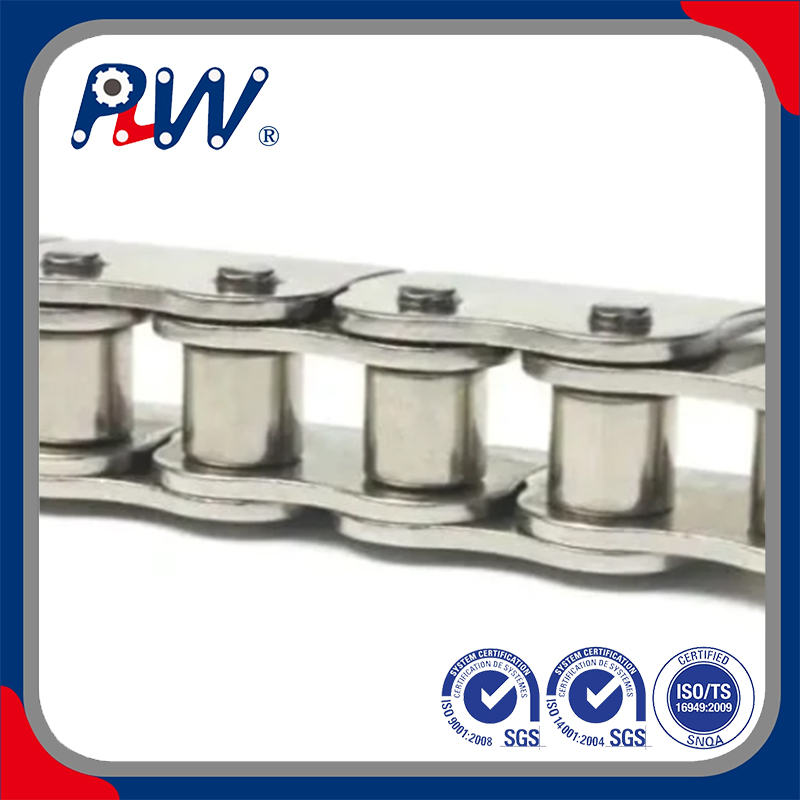

The Stainless Steel Anti-Sidebow Chain is designed for push-out and casement windows, providing controlled opening and helping prevent excessive window movement. Made from durable stainless steel, it offers reliable performance, corrosion resistance, and long-term use.

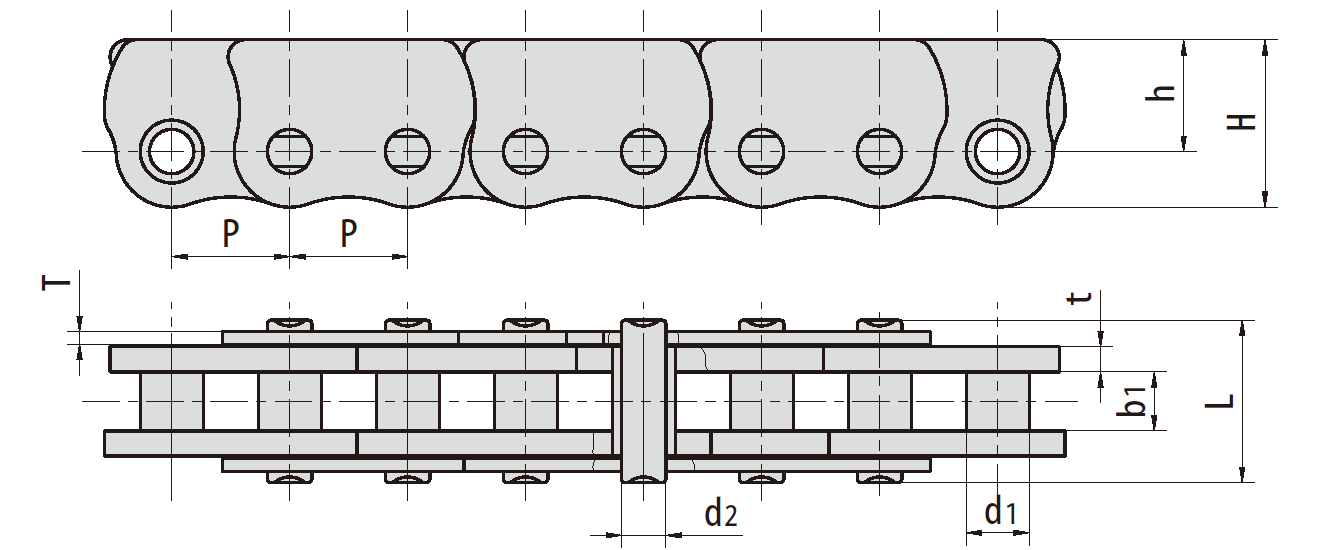

Chain No.
Pitch
Roller diameter
Width between inner plates
Pin diameter
Pin length
Plate dimension
Tensile strength
Weight per meter
P
d1max
b1min
d2max
Lmax
Hmax
h
t/Tmax
Qmin
q
mm
mm
mm
mm
mm
mm
mm
mm
kN/lbf
kg/m
06BF33SS
9.525
6.35
5.72
3.28
13.15
12.38
7.88
1.30
6.2/1394
0.63
06BF40SS
9.525
6.35
5.72
3.28
13.15
12.38
7.88
1.30
6.2/1394
0.63
*06CF49SS
9.525
5.08
4.77
3.58
14.80
13.20
8.80
2.03
8.0/1799
0.89
*06CF51SS
9.525
5.08
4.77
3.58
12.80
13.20
8.80
2.03/1.00
7.0/1574
0.69
08BSSF20
12.700
8.51
7.75
4.45
16.70
16.50
10.50
1.60
12.0/2698
1.06
08BF66SS
12.700
8.51
7.75
4.45
18.80
14.30
8.50
2.03
12.0/2698
1.07
08BSSF74
12.700
8.51
7.75
4.45
18.80
15.50
9.70
2.03/1.85
13.0/2922
1.19
*Bush chain:d1 in the table indicates the external diam enter of the bush.

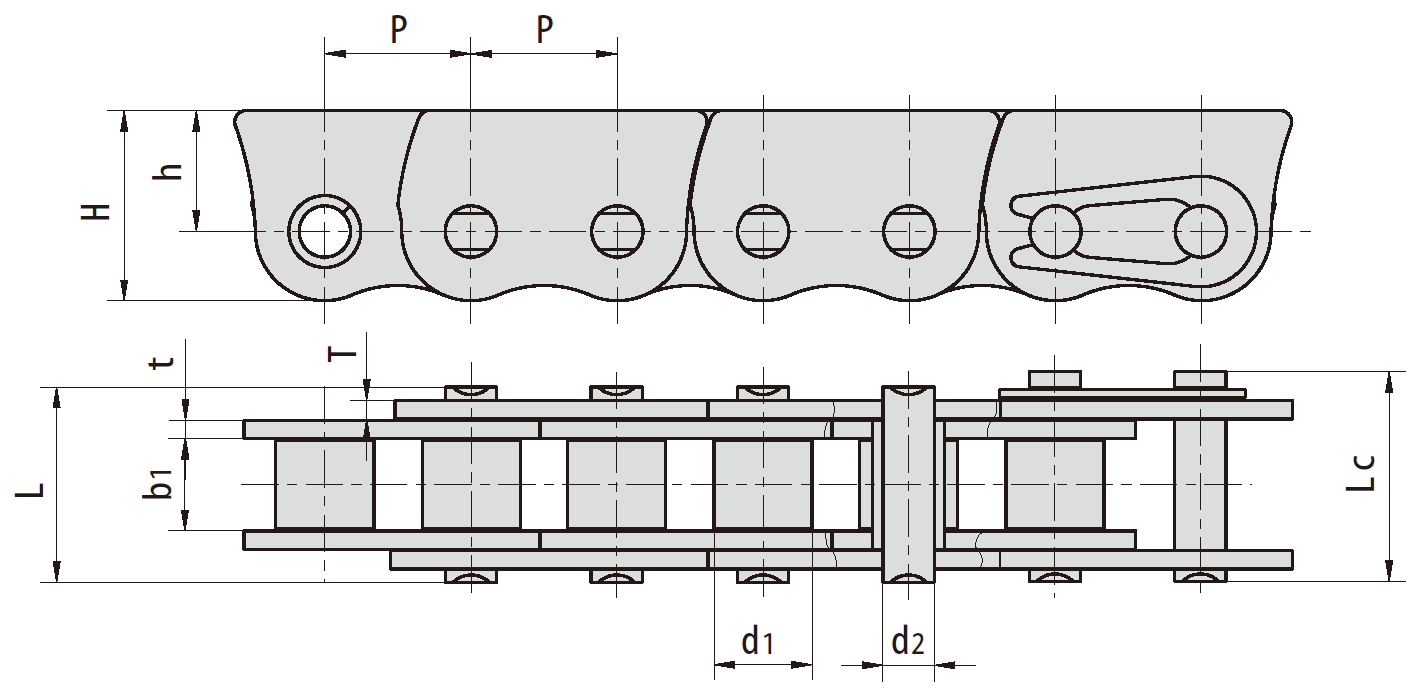

Chain No.
Pitch
Width between inner plates
Pin diameter
Pin length
Plate dimension
Tensile strength
P
b1 min
d2 max
d4 max
L max
H max
h
t/T max
Q min
m m
m m
m m
m m
m m
m m
m m
m m
kN
06CF31SS
9.525
4.50
3.58
5.08
11.50
12.40
7.90
1.30
5.2/1169
P12.7F3SS
12.700
5.50
4.45
7.50
15.60
14.30
8.90
2.03
12.0/2698

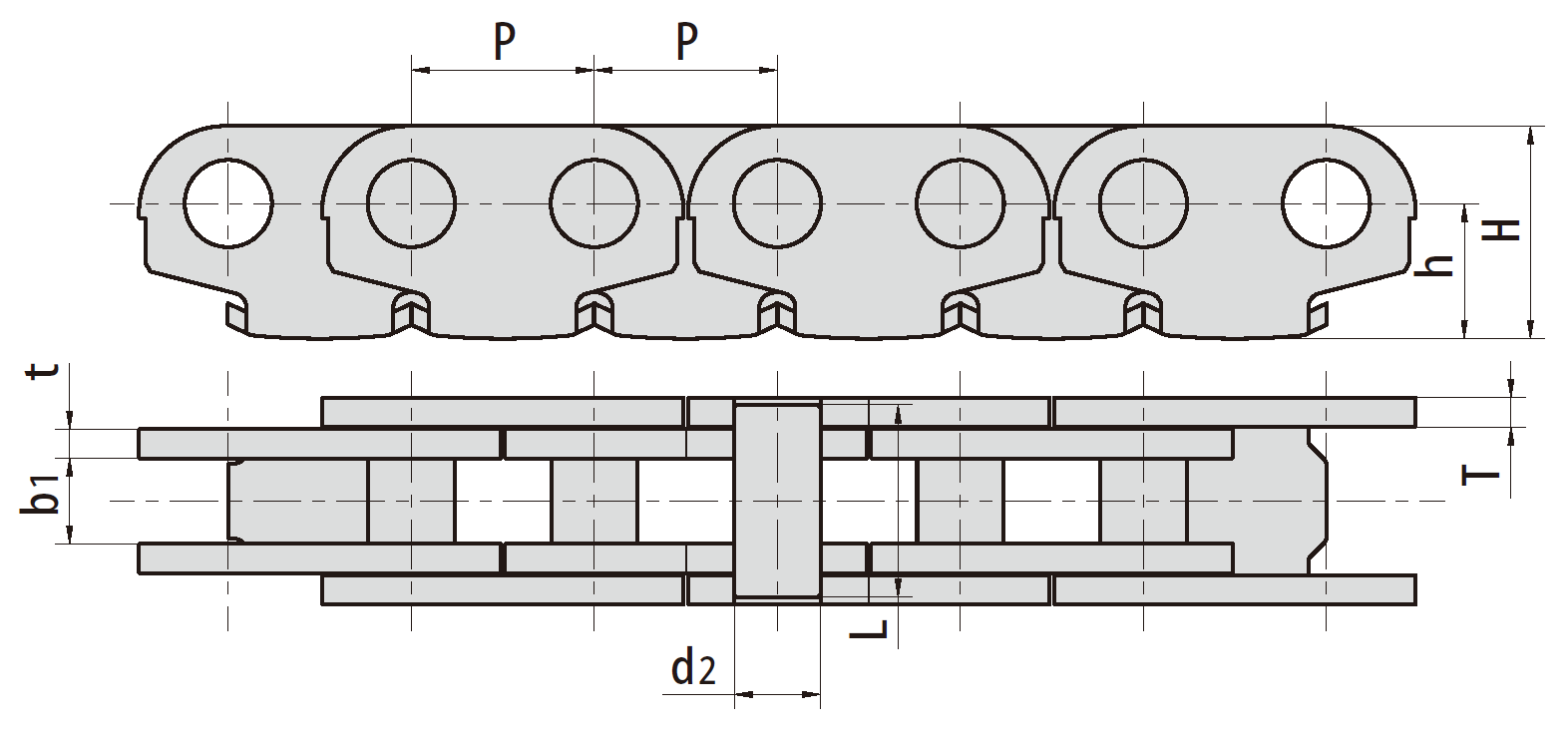

Chain No.
Pitch
Bush diameter
Width between inner plates
Pin diameter
Pin length
Plate dimension
Tensile strength
P
d1max
b1min
d2max
Lmax
Hmax
h
t/Tmax
Qmin
mm
mm
mm
mm
mm
mm
mm
mm
kN
06CF51SS
9.525
5.08
4.77
3.58
12.80
13.20
8.80
1.00/2.03
7.0/1574

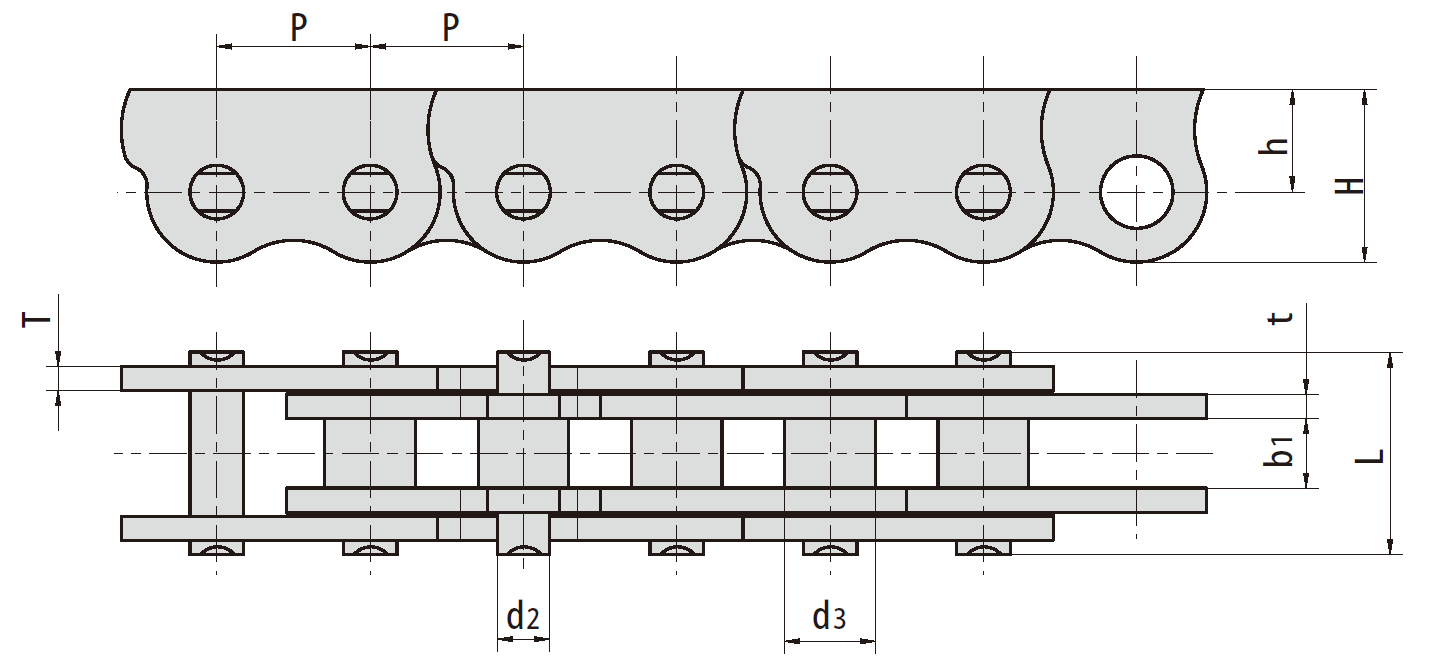

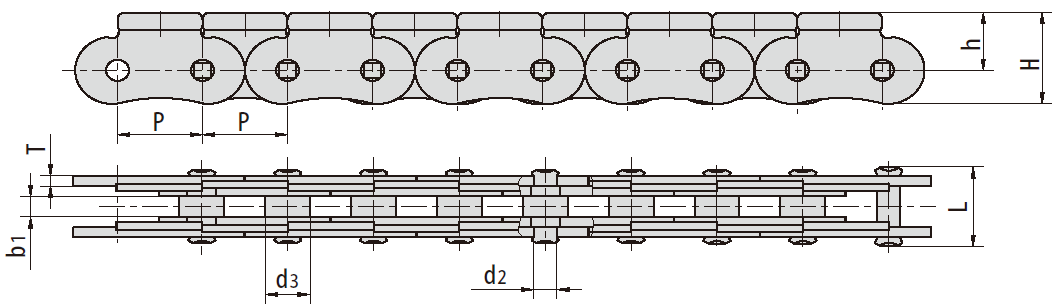

Chain No.
Pitch
Width between inner plates
Pin diameter
Pin length
Plate dimension
Tensile strength
P
b1min
d2max
d3max
Lmax
Hmax
h
Tmax
Qmin
mm
mm
mm
mm
mm
mm
mm
mm
kN
P11.5SS
11.500
3.00
3.00
6.00
108.0
13.50
8.50
1.50
5.5/1236
Chain No.
Pitch
Width between inner plates
Pin diameter
Pin length
Plate dimension
Tensile strength
Weight per meter
P
b1min
d2max
Lmax
Hmax
h
t/T
Qmin
q
mm
mm
mm
mm
mm
mm
mm
kN
kN/m
P12.7F14SBSS
12.70
5.94
6.00
13.40
14.76
9.38
2.03
10.0/2248
0.89
Key Features
Stainless Steel Construction – Durable and corrosion-resistant for long-term use.
Opening Control – Helps limit and control window movement.
Anti-Sidebow Design – Helps reduce excessive side movement of the window sash.
Easy Installation – Simple design for convenient installation.
Wide Application – Suitable for residential, commercial, and architectural windows.
Applications in Window Opening Systems
This window restrictor chain is suitable for various outward-opening window systems, including:
Push-out windows
Casement windows
Aluminum windows
Residential windows
Commercial windows
Architectural window systems
It can be used for window opening control, safety protection, and reducing excessive sash movement.
Why Choose Our Anti-Sidebow Chain?
Reliable Material Made from stainless steel for good strength, durability, and corrosion resistance.
Practical Design Designed to provide effective opening control without adding unnecessary complexity to the window system.
Easy to Install The compact chain design makes installation convenient for different window applications.
Suitable for Various Projects A practical solution for residential, commercial, and custom window hardware projects.
OEM & Customization Available We can provide customized specifications, finishes, packaging, and other solutions according to project requirements.
Product Advantages
Feature
Benefit
Stainless steel material
Corrosion resistance and durability
Restrictor chain design
Controlled window opening
Anti-sidebow function
Helps reduce excessive sash movement
Compact structure
Easy to integrate with window hardware
Multiple applications
Suitable for different window systems
FAQs
What windows is this chain suitable for?
It is mainly designed for push-out and casement windows, and can also be used with other compatible outward-opening window systems.
What material is the chain made of?
The chain is made of stainless steel, providing durability and good corrosion resistance.
Can the opening distance be customized?
Yes. Different chain lengths and specifications can be discussed according to your window design and project requirements.
Is OEM service available?
Yes. We can provide OEM and customized solutions, including product specifications, surface finish, packaging, and branding.
Is it suitable for outdoor applications?
The stainless steel construction provides good corrosion resistance, making it suitable for many indoor and outdoor window applications. The final suitability depends on the specific environment and stainless steel grade.
Can I order samples?
Yes. Samples can be provided for product evaluation and compatibility testing. Please contact us for sample availability and details.
Technical Information
Product Type
Window Restrictor / Anti-Sidebow Chain
Material
Stainless Steel
Application
Push-Out & Casement Windows
Function
Window Opening Control & Sash Movement Restriction
Installation
Screw/Fixing Installation
Customization
Available
OEM/ODM
Available
For Wholesale & Project Orders
Looking for reliable window hardware for your next project?
We supply stainless steel anti-sidebow chains for window manufacturers, hardware distributors, contractors, and architectural projects. Contact us for product specifications, samples, pricing, and customized solutions.
