Stainless Steel Sharp Top Conveyor Chain for Secure Material Handling

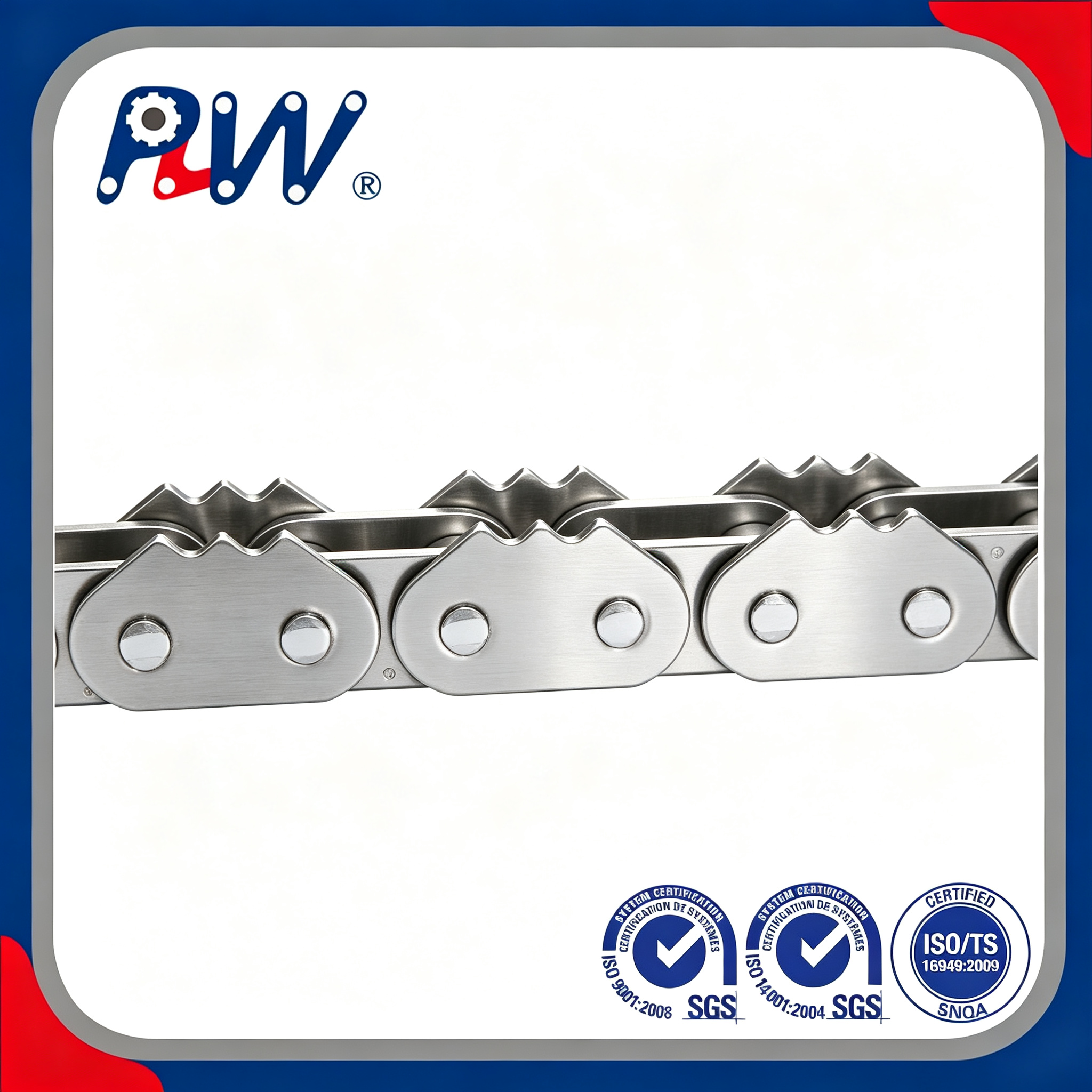

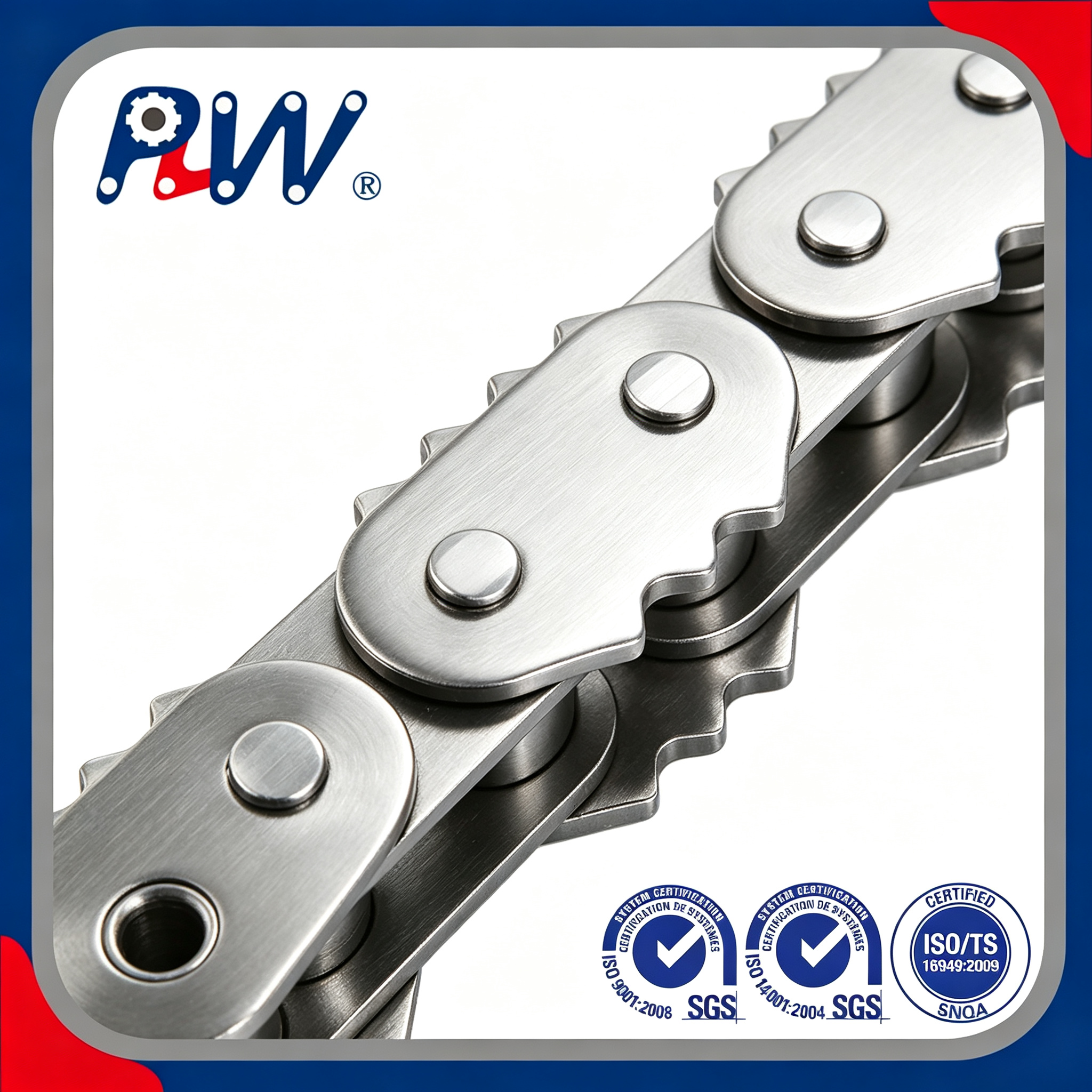

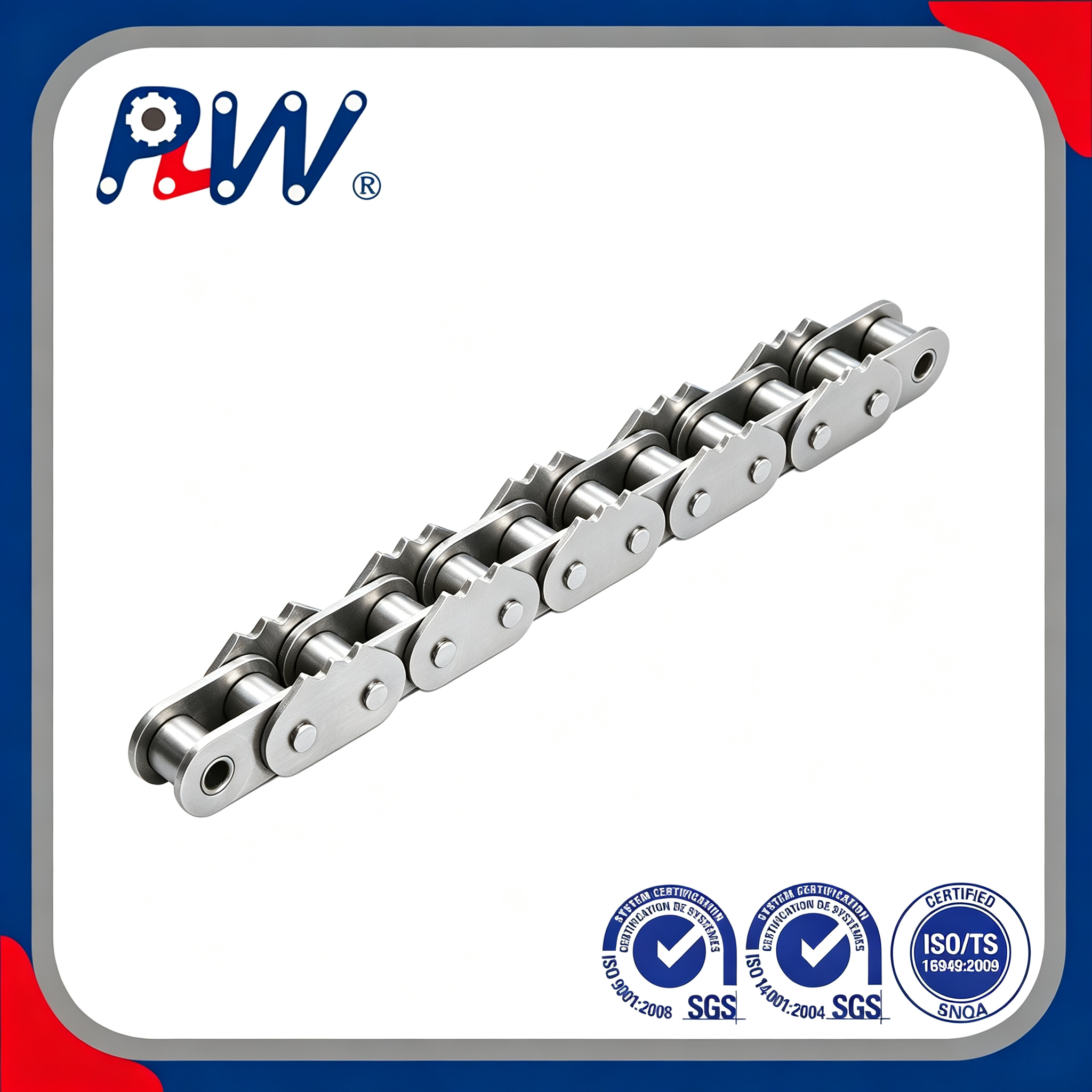

Stainless Steel Sharp Top Conveyor Chain

The Stainless Steel Sharp Top Conveyor Chain is specially designed for industrial conveyor systems that require reliable, continuous, and stable material handling. Its stainless steel construction provides excellent resistance to moisture, corrosion, and general industrial operating conditions, making it suitable for demanding production environments.

The sharp top profile is designed to improve contact and positioning between the conveyor chain and conveyed products. It can help maintain stable product movement during conveying and is suitable for applications where secure and controlled transportation is required.

The conveyor chain can be manufactured in different pitches, widths, attachment configurations, and material options according to the customer's conveyor equipment and operating requirements. It can be used in food processing, beverage production, packaging, material handling, and industrial production lines.

Main Advantages:

1. Stainless Steel Material
High-quality stainless steel provides good corrosion resistance and durability, making the chain suitable for wet or demanding working environments.

2. High Wear Resistance
Precision manufacturing and suitable material selection help improve wear resistance and extend the service life of the conveyor chain.

3. Stable Conveying Performance
The sharp top design provides effective contact with the conveyed products and helps maintain smooth and stable transportation.

4. Wide Application Range
Suitable for conveyor systems used in food processing, beverage, packaging, manufacturing, and material handling industries.

5. Customizable Design
Different chain sizes, pitches, widths, attachments, and material grades can be customized according to conveyor system requirements.

6. Easy Integration
The chain can be designed to match existing sprockets and conveyor equipment, helping customers replace or upgrade their existing conveyor chains.

Technical Specifications

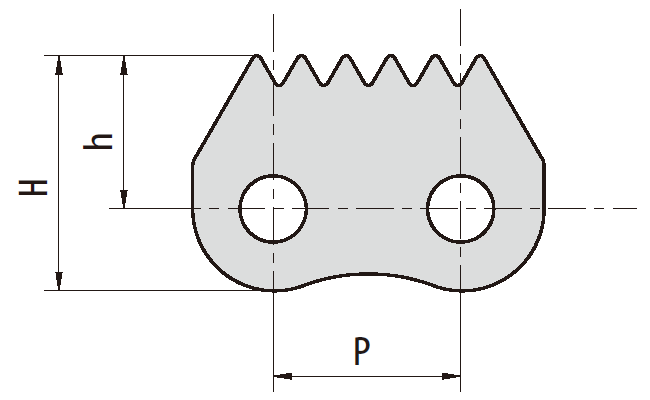

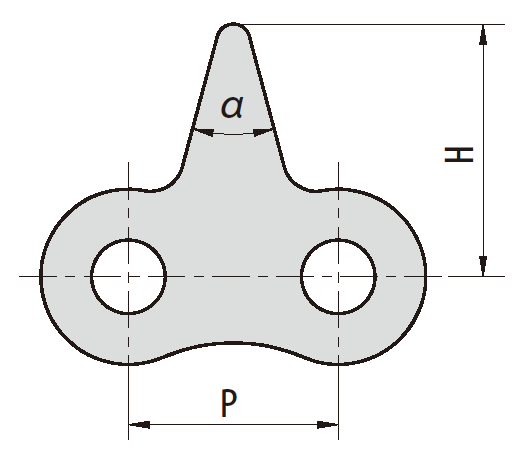

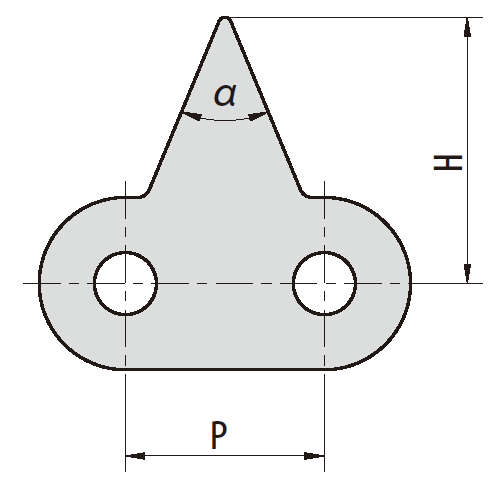

	P	H	α
	mm	mm
08AF9SS	12.70	17.00	45°

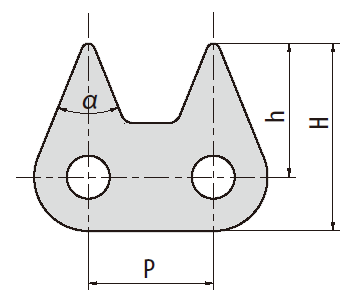

	P	H max	h
	mm	mm	mm
16AF44SS	25.40	30.30	50.00

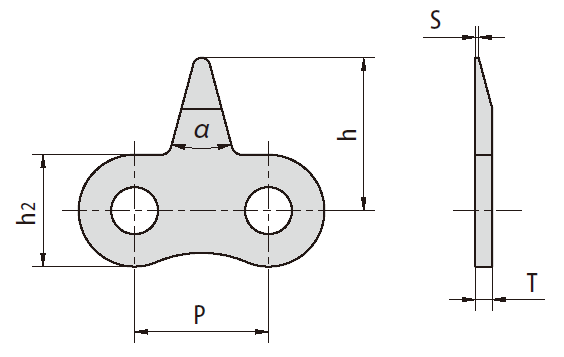

	P	h2 max	h	T	s	α
	mm	mm	mm	mm	mm
08BF30SS-1STA	12.70	10.60	14.50	1.60	0.30	30°

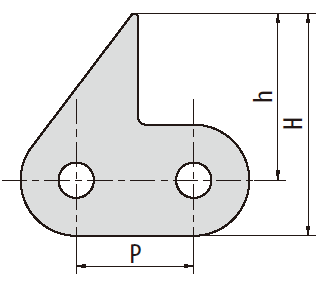

	P	H max	h
	mm	mm	mm
C 20ASS-1STCF1	31.75	60.00	45.00

	P	H max	h	α
	mm	mm	mm	mm
06BSS-2STC	9.525	14.30	10.20	44°

	P	H max	h
	mm	mm	mm
08BSS-941	12.70	15.80	10.30

Need Help Matching Your Existing Sharp Top Chain?

Send us your chain number, pitch, tooth profile, dimensions or existing chain drawing. We can help identify a compatible sharp top chain for your conveyor.

Get Chain Selection Support

Applications of Stainless Steel Sharp Top Chains

Stainless Steel Sharp Top Chains are designed for conveying applications that require secure product handling, reliable traction, and corrosion resistance. The sharp-top profile provides additional grip on the conveyed products, while the stainless steel construction is suitable for demanding industrial and hygienic environments.

Food Processing & Packaging

Suitable for conveying food products and packaged goods where corrosion resistance, reliable product handling, and easy cleaning are important.

Beverage & Bottling Lines

Used in beverage production and bottling systems to provide stable conveying performance in wet or frequently cleaned environments.

Inclined Conveying

The sharp-top profile provides additional grip to help reduce product slipping when conveying products on inclined or elevated conveyor sections.

Packaging Machinery

Suitable for packaging lines where products need to be positioned and transported securely throughout the conveying process.

Material Handling

Used for controlled movement of products, containers, cartons, and other materials where additional traction is required.

Automated Conveyor Systems

Can be integrated into automated production and material-handling systems requiring reliable chain movement and consistent product positioning.

Harsh or Corrosive Environments

Stainless steel construction provides improved resistance to moisture and corrosion, making the chain suitable for demanding operating environments.

Custom Conveying Applications

Sharp-top chains can be customized in terms of chain dimensions, top attachment configuration, material, and other specifications to meet specific conveying requirements.

What Is Sharp Top?

A Sharp Top is a specially designed top attachment integrated into the conveyor chain to provide additional grip and support for conveyed products.

Unlike a standard roller chain, the sharp-top design creates a raised contact surface that helps hold products securely during conveying. It is particularly useful for applications where products may slip, shift, or require additional traction during transportation.

Sharp Top Conveyor Chain Structure

The main components typically include:

• Chain Plates – Provide the main structural support and connect the chain links.

• Pins – Connect the chain plates and allow the chain to articulate around sprockets.

• Bushings & Rollers – Reduce friction and enable smooth chain movement.

• Sharp Top Attachment – Provides additional contact and gripping force between the chain and the conveyed product.

• Sprockets – Engage with the chain to transmit motion and drive the conveyor system.

How Does the Sharp Top Work?

As the conveyor chain moves, the raised sharp-top surface comes into contact with the conveyed product. This additional contact helps reduce product movement and slipping, providing more stable and controlled conveying.

The sharp-top configuration can be selected according to the product shape, conveying angle, load, and application requirements.

Why Choose a Sharp Top Conveyor Chain?

The Sharp Top design can be beneficial for:

• Improved product grip

• More stable conveying

• Reduced product slipping

• Inclined or demanding conveying applications

• Customized product handling requirements

Different sharp-top shapes, dimensions, materials, and configurations can be customized according to your conveyor design and product requirements.

FAQ

1. What is a Stainless Steel Sharp Top Conveyor Chain?

A Stainless Steel Sharp Top Conveyor Chain is a conveyor chain made from stainless steel and equipped with pointed or sharp-top attachments designed to provide increased grip and controlled product handling during conveying. It is commonly used for applications where products need to be held securely during transport.

2. What are the advantages of Stainless Steel Sharp Top Conveyor Chains?

The main advantages include good corrosion resistance, high mechanical strength, reliable conveying performance, and enhanced product gripping. The stainless steel construction also makes the chain suitable for demanding industrial and hygienic environments.

3. How does a Sharp Top Conveyor Chain work?

The sharp-top attachments create additional contact with the conveyed product, helping prevent slipping or movement during transportation. The chain runs over compatible sprockets to provide continuous and controlled conveying.

4. What materials are used for Stainless Steel Sharp Top Conveyor Chains?

Stainless steel is commonly used for the chain plates, pins, rollers, and other components, depending on the specific design. Different stainless steel grades can be selected according to corrosion resistance, strength, temperature, and application requirements.

5. Are Stainless Steel Sharp Top Conveyor Chains corrosion-resistant?

Yes. Stainless steel construction provides good resistance to moisture, oxidation, and many corrosive environments. The actual corrosion resistance depends on the stainless steel grade and the operating environment.

6. What applications are Stainless Steel Sharp Top Conveyor Chains used for?

They are commonly used in food processing, beverage production, packaging, material handling, and other conveyor systems where reliable gripping and corrosion resistance are required.

7. Can Stainless Steel Sharp Top Conveyor Chains be used in food-processing applications?

Yes, suitable stainless steel versions can be used in food-processing and related applications. The appropriate material grade, surface finish, cleaning requirements, and applicable hygiene regulations should be considered when selecting the chain.

8. Do your Stainless Steel Sharp Top Conveyor Chains comply with international standards?

Our conveyor chains can be manufactured according to applicable international standards and customer specifications. Depending on the chain series and application, options may be available to meet relevant ISO, DIN, or ASME/ANSI requirements.

9. Can Stainless Steel Sharp Top Conveyor Chains be customized?

Yes. Customization options may include chain dimensions, stainless steel grade, sharp-top attachment design, pitch, roller configuration, surface finish, and special attachment requirements. OEM and custom solutions are available based on drawings or technical specifications.

10. How do I choose the right Stainless Steel Sharp Top Conveyor Chain?

The selection depends on conveyor speed, conveying load, product type, chain pitch, sprocket dimensions, operating temperature, working environment, and required corrosion resistance. Providing your conveyor specifications and application details will help us recommend a suitable chain.
