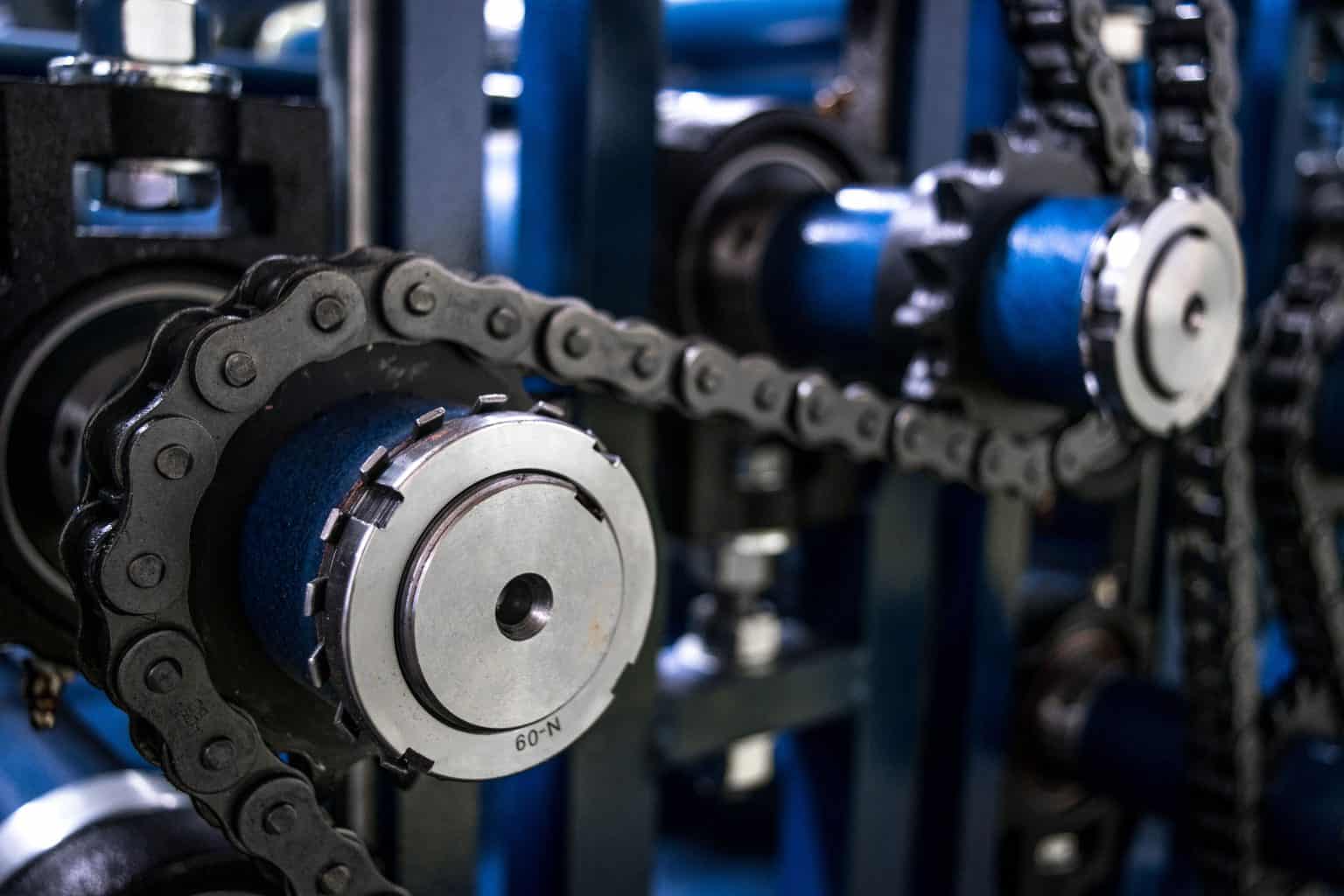

The ultimate guide to heavy-duty roller chains

Industrial power transmission relies entirely on rugged, predictable components. Plant managers, mechanical engineers, and procurement specialists understand this operational reality deeply. Standard chains frequently fail prematurely under sudden shock loads. Continuous high-stress operations easily break them down. This inevitably leads to catastrophic equipment failure. Unplanned facility downtime becomes incredibly costly for your daily operations.

Upgrading to a properly specified heavy-duty roller chain solves these persistent problems. It actively delivers up to 98% power transmission efficiency. You just need to match it accurately with your correct environmental and load profiles. In this guide, you will learn how to identify specific equipment stressors. We will explore core evaluation criteria and material matching strategies. You will also discover key maintenance realities to maximize your component lifespan. Let us dive into the engineering specifics you need.

Key Takeaways

• Heavy-duty differentiation: Thicker side plates and optimized roller diameters provide superior shock-load resistance compared to standard ANSI chains.

• Crucial metrics: Procurement should prioritize fatigue strength (long-term degradation resistance) alongside tensile strength (peak break load).

• Wear limits are absolute: Operating chains past 1.5% to 3% elongation drastically increases the risk of sprocket damage and mechanical failure.

• Accessories matter: Integrating UHMW (Ultra-High Molecular Weight Polyethylene) chain guides can prevent 5% side-plate wear, preserving structural integrity.

When to Upgrade to a Heavy-Duty Roller Chain

Engineers often face a difficult choice when replacing broken drive components. They must decide whether to stick with a standard specification or upgrade to a heavier alternative. Understanding the structural architecture makes this decision much easier.

Standard vs. Heavy-Duty Architecture
Heavy-duty versions possess distinct structural differences. The "Heavy Series" designation generally means the inner and outer link plates are thicker. In fact, manufacturers often use the plate thickness of the next larger pitch size. For example, a heavy 60-pitch chain utilizes the thicker plates of an 80-pitch chain. They also feature larger inner rollers. These optimized roller diameters absorb severe impact forces. This robust architecture prevents dangerous side-plate fatigue. It keeps the entire assembly intact during aggressive mechanical cycles.

Identifying Equipment Stressors
Certain industrial scenarios demand an immediate upgrade. Standard components will simply stretch or snap under these specific conditions. You should consider heavy-duty intervention if your facility experiences the following stressors:

• Frequent start/stop cycles: Rapid acceleration forces immense stress onto link plates.

• Heavy lifting systems: Vertical hoists require massive yield strength to hold suspended loads safely.

• Agricultural equipment: Harvesters and balers encounter unpredictable debris and terrain variations.

• Manufacturing conveyors: Material handling lines often suffer sudden shock loads from dropped pallets.

Cost-Benefit Realities
You will notice a higher upfront procurement cost for heavier chains. Premium steel alloys and thicker profiles naturally increase the manufacturing price. However, you must frame this initial cost against a much larger operational reality. You eliminate unplanned maintenance completely. You minimize production downtime. A single hour of factory downtime often costs far more than the chain itself. Investing in the proper specification generates immediate operational relief.

Core Evaluation Criteria for Specification

Selecting the right drive component requires precise engineering evaluation. You cannot simply guess the required dimensions or load ratings. You must analyze specific technical metrics.

Tensile Strength vs. Fatigue Strength

Many procurement teams focus entirely on peak break loads. This is a common engineering mistake. You must differentiate between a chain’s ability to withstand a one-time extreme load versus its long-term endurance.

Tensile strength represents peak yield. Fatigue strength guarantees your equipment runs smoothly for years. Heavy-duty applications require extremely high fatigue resistance. The thicker plates directly boost this critical endurance metric.

Sizing, Pitch, and Strand Configurations

You must decide how wide the chain needs to be. Strand selection involves simple but crucial decision logic. You must meet working load requirements without over-engineering the footprint.

1. Calculate total load: Determine the horsepower and RPM of your drive system.

2. Apply service factors: Multiply the base load by a factor of 1.5 or 2.0 for extreme shock loads.

3. Select strands: Choose between single, double, triple, or quad-strand configurations. Multiple strands distribute massive loads horizontally. This allows you to use a smaller pitch size while maintaining high capacity.

Standardization verification remains absolutely necessary. Always verify ANSI (sizes 25-240) or ISO 606 standards. This ensures seamless integration with your existing drive systems. Matching standard pitches prevents you from having to replace entire gearboxes.

Sprocket Alignment and Drive Geometry

You must maintain strict engineering constraints for chain-to-sprocket engagement. Operational geometry dictates component lifespan. We highly recommend a minimum of 15 teeth on the small sprocket. Fewer teeth create a harsh polygon effect. This effect causes rough running and extreme stress spikes.

Conversely, you should observe a maximum of 120 teeth on the large sprocket. As normal wear occurs, the chain pitch elongates slightly. On sprockets larger than 120 teeth, this slight elongation causes the rollers to ride up the gear teeth. This geometry error rapidly accelerates wear and causes premature slipping.

Matching Chain Materials to Harsh Environmental Conditions

Standard carbon steel performs poorly in extreme environments. You must match your materials to the specific atmospheric challenges of your facility.

Temperature Extremes
Most standard components operate safely within a -9°C to 60°C window. Operations outside this range require specialized metallurgy. High-temperature alloys can withstand blistering environments up to 400ºC. These are common in industrial bakeries and metal foundries. Alternatively, specialized cold-weather steel resists brittleness down to -20ºC. Food freezing facilities rely heavily on these cold-rated materials.

Corrosion and Contamination
Moisture and chemicals destroy standard steel quickly. You have distinct evaluation criteria for corrosive spaces. Nickel-plated options provide cost-effective moisture resistance. They repel basic water condensation perfectly. However, food-grade processing requires a different approach. Highly corrosive chemical environments demand 304 or 316 stainless steel. Stainless steel sacrifices some tensile strength but completely eliminates rust risks.

Lubrication Limitations
Lubrication presents unique challenges in dusty environments. Standard oil attracts abrasive dust and wood shavings. This creates a destructive grinding paste. You must address these scenarios carefully. We recommend specifying oil-filled or self-lubricating designs. Sealed O-ring designs keep internal grease locked away from external contaminants. They drastically reduce maintenance intervals in abrasive applications.

Material Selection Summary Chart

Implementation Risks and Maintenance Realities

Even the strongest materials fail without proper installation. You must protect your procurement investment through smart implementation and diligent maintenance practices.

Protecting the Investment with UHMW Guides

Unprotected chains suffer continuous lateral friction. They rub against machine frames during long conveyor runs. This lateral friction quickly wears down the side plates. You must actively mitigate this wear.

We introduce UHMW (Ultra High Molecular Weight Polyethylene) guides as a mandatory accessory. UHMW rails provide a low-friction channel for the assembly to travel through. They prevent critical side-plate wear. Losing just 5% of side-plate material severely degrades overall chain strength. UHMW guides preserve this structural integrity and eliminate damaging metal-on-metal scraping.

Measurable Replacement Thresholds

Maintenance teams need concrete numbers, not guesswork. The elongation metric provides a hard operational rule. Over time, internal pins and bushings wear down. This internal wear causes the entire chain to stretch.

You must inspect your drives regularly. You must replace them when elongation reaches 1.5% to 3%. Operating beyond this strict threshold stretches the pitch permanently. A stretched pitch no longer matches the sprocket teeth perfectly. It will rapidly destroy your expensive sprockets. It is always cheaper to replace a stretched chain than an entire drive system.

Furthermore, you must control your alignment tolerance. Improper shaft alignment acts as a leading cause of premature failure. It bends the side plates on every revolution. Parallel shaft verification must become a mandatory part of your installation protocol. Use laser alignment tools to ensure perfect geometry.

Shortlisting a Reliable Supplier and Partner

Sourcing your mechanical parts correctly matters just as much as engineering them. You need a responsive, technically capable supply partner to keep your operations running smoothly.

Supply Chain Resilience
Global supply chains frequently experience unpredictable delays. Emergency breakdowns demand immediate replacement parts. Finding a dependable roller chain manufacturer near me mitigates severe lead-time risks. Regionally stocked distributors can ship critical heavy-duty parts the same day. This local resilience saves facilities thousands of dollars during sudden mechanical failures.

Engineering Support
Do not settle for simple parts vendors. You must evaluate suppliers based on their deeper technical capabilities. Look for teams willing to provide comprehensive load calculation assistance. They should offer accurate 3D CAD models for your design software. Additionally, superior partners possess custom attachment capabilities. They can weld specialized paddles or pins directly to your required specifications.

Quality Assurance Transparency
Trust requires data. Look for manufacturers that openly share their quality assurance metrics. They should provide pre-stressing (often called pre-stretching) data for every batch. Pre-stressing settles the internal components before shipping. This drastically reduces initial elongation during the break-in period. Furthermore, ask for metallurgical certifications. These documents validate their fatigue strength claims and prove you are buying premium steel.

Conclusion

Upgrading your industrial drives requires a systematic approach. You must follow a precise specification framework to ensure success. First, assess the exact operational load and environmental stressors. Next, select the proper size and strand configuration to distribute that load safely. Then, match your material metallurgy to any harsh facility conditions. Finally, specify necessary accessories like UHMW guides to protect your investment.

Take proactive steps today. Prompt your engineers and buyers to review your current maintenance logs. Look closely for any recurring standard-chain failures. These failures highlight where upgrades are urgently needed. Consult a technical specialist immediately to calculate the exact heavy-duty specifications required for your facility. Your equipment longevity depends on proper specification.

FAQ

Q: What is the difference between standard and heavy-duty roller chains?

A: Heavy-duty versions feature significantly thicker inner and outer link plates. They also utilize optimized, thicker inner rollers. This robust architecture absorbs sudden shock loads much better than standard ANSI chains, preventing side-plate fatigue and premature snapping.

Q: How do I calculate the working load for a heavy-duty roller chain?

A: First, determine your drive system's operational horsepower and rotational speed (RPM). Then, apply an environmental service factor. For heavy shock loads, you typically multiply your base load by 1.5 or 2.0 to find the required working load capacity.

Q: At what elongation percentage should a heavy-duty roller chain be replaced?

A: You must replace it when elongation reaches the 1.5% to 3% industry standard. Operating beyond this strict threshold permanently stretches the pitch, causing the chain to ride up and destroy expensive sprocket teeth.

Q: Can I run heavy-duty roller chains on standard sprockets?

A: Yes, the basic pitch remains identical to standard ANSI chains. However, heavy-duty variations feature wider side plates. You must always perform clearance checks to ensure these thicker plates do not rub against machine housings or adjacent sprockets.
