Chain Plastic Guides: Wear-Resistant Guiding Core Components in Industrial Transmission Systems

Views: 0 Author: Site Editor Publish Time: 2026-02-24 Origin: Site

Inquire

In the field of industrial transmission and conveying, chains, as the core carriers of power transmission and material conveying, their operational stability and smoothness directly determine the efficiency, service life and operating cost of the entire equipment. As key guiding and supporting components matching chain operation, chain plastic guides, with their prominent advantages such as light weight, wear resistance, self-lubrication and corrosion resistance, have gradually replaced traditional metal guides and are widely used in multiple industries such as automatic production lines, food processing, warehousing and logistics, and mining machinery, becoming an important support for the upgrading and optimization of industrial equipment.

I. Core Definition and Structural Characteristics of Chain Plastic Guides

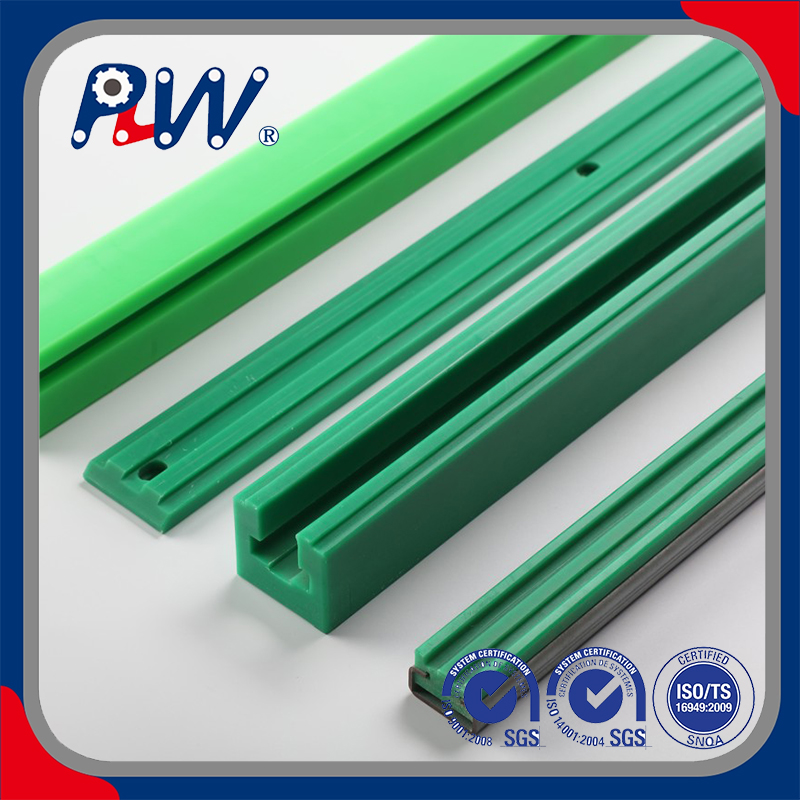

Chain plastic guides, also known as chain guides or chain supporting strips, are static guiding components formed by precision injection molding and machining of high-performance engineering plastics. They are used to limit the chain operation trajectory, bear the chain load and reduce the friction loss between the chain and the guide. Their core structure fits the chain tooth shape or chain plate contour, and they are divided into various specifications such as linear, curved and special-shaped. They can be customized and processed according to the chain model (such as roller chain, bushing chain, conveyor chain) and equipment operation trajectory to ensure perfect adaptation to the chain and avoid chain deviation, derailment and other faults.

Compared with traditional metal guides, the structural design of chain plastic guides is more targeted. They do not require complex lubrication systems and achieve "self-lubrication and low friction" by virtue of their own material properties. At the same time, they have the advantages of light weight (only 1/3 to 1/5 of metal guides), convenient installation and not easy to damage the chain, fundamentally solving the pain points of metal guides such as easy rust, easy wear of the chain and high lubrication and maintenance costs.

II. Core Material Selection: Determining the Performance and Application Scenarios of Guides

The performance core of chain plastic guides depends on the material of the engineering plastics used. Different materials have great differences in wear resistance, temperature resistance and impact resistance. It is necessary to accurately select materials according to specific application scenarios (such as temperature, load, medium and chain type). At present, the commonly used materials in the industry are mainly divided into the following 4 categories, each with clear application boundaries:

1. UHMW-PE (Ultra-High Molecular Weight Polyethylene) Guides

This is the most widely used material in chain plastic guides. Its molecular weight is as high as 1.5 million to 9 million. It has extremely low friction coefficient (only 0.05-0.1, much lower than that of metal), super strong wear resistance (wear resistance is more than 10 times that of carbon steel), excellent impact resistance and chemical corrosion resistance. At the same time, it is non-absorbent and non-adhesive, suitable for most general industrial scenarios. The applicable temperature range is -20℃ to +80℃, which can bear medium load. It is often used for guiding ordinary roller chains and conveyor chains, such as warehousing and logistics conveyors, automatic production lines, agricultural machinery and equipment, with extremely high cost performance.

2. POM (Polyoxymethylene) Guides

POM material, also known as "polyacetal", has excellent rigidity, wear resistance and dimensional stability. Its friction coefficient is slightly higher than that of UHMW-PE, but its mechanical strength is stronger and it is not easy to deform, suitable for high-load and high-precision guiding scenarios. The applicable temperature range is -40℃ to +100℃, which can bear large chain impact force. It is often used for guiding precision transmission chains and high-speed operation chains, such as machine tools, precision automatic equipment, automobile parts production lines, especially suitable for scenarios requiring high dimensional accuracy of guides.

3. PA (Nylon) Guides (including reinforced PA6/PA66)

PA material has good toughness, impact resistance and wear resistance. Its mechanical strength and heat resistance can be improved by adding reinforcing agents such as glass fiber and carbon fiber. The bearing capacity of reinforced PA guides is close to that of metal guides, and it also has a certain shock absorption and noise reduction effect. The applicable temperature range is -30℃ to +120℃, with strong chemical corrosion resistance, suitable for medium and high load scenarios with slight corrosive media, such as mining machinery, chemical equipment, food processing equipment (need to meet food-grade standards), among which food-grade PA guides can directly contact food materials.

4. PEEK (Polyether Ether Ketone) Guides

This is a high-end engineering plastic guide, which has extremely high heat resistance (applicable temperature range -50℃ to +260℃), super strong wear resistance and chemical corrosion resistance. It can operate stably for a long time in high temperature, high pressure and strong corrosive media, and also has excellent electrical insulation, suitable for extreme working conditions. However, its cost is high, and it is mainly used in high-end precision equipment and high-temperature environment equipment, such as aerospace components, high-temperature conveyors, nuclear industry auxiliary equipment and other special fields.

Supplement: Material Customization for Special Scenarios

For special scenarios, customization can be realized through material modification, such as adding graphite and molybdenum disulfide to improve self-lubricating performance, adding flame retardants to achieve flame retardant effect, and adding antistatic agents for explosion-proof scenarios (such as coal mines, chemical flammable and explosive environments), ensuring the adaptability of the guide to the overall equipment.

III. Key Performance Indicators: Core Basis for Judging Guide Quality

When purchasing chain plastic guides, it is necessary to focus on the following 5 key performance indicators, which directly determine the service life of the guide and the operational stability of the equipment, and avoid premature wear of the guide and damage to the chain caused by improper selection:

1. Wear Resistance

Taking "wear amount" as the core evaluation standard, it is usually measured by Martindale wear test or actual working condition wear test. The wear amount of high-quality plastic guides should be ≤0.05mm/1000h (under conventional load). Wear resistance directly determines the service life of the guide. Especially in high-speed and high-load operation scenarios, priority should be given to materials with excellent wear resistance (such as UHMW-PE and PEEK).

2. Friction Coefficient

The lower the friction coefficient, the smaller the resistance during chain operation, the lower the energy consumption, and at the same time, it can reduce the wear of the chain and the guide, extending the service life of the chain. The static friction coefficient of high-quality plastic guides should be ≤0.15, and the dynamic friction coefficient should be ≤0.1. Smooth operation can be achieved without additional lubricants, reducing maintenance costs.

3. Dimensional Accuracy

The dimensional accuracy of the guide (such as guide width, thickness, guide groove size, straightness) directly affects the adaptability to the chain. If the dimensional deviation is too large, it will cause chain deviation, jamming and even damage the chain. The dimensional tolerance of conventional plastic guides should be controlled within ±0.05mm, and within ±0.02mm for precision scenarios to ensure perfect fit with the chain.

4. Bearing Capacity

Select according to the actual load (static load + dynamic load) of the chain during equipment operation. Different materials have great differences in bearing capacity: UHMW-PE guides are suitable for medium load (≤50N/mm), POM guides are suitable for medium and high load (≤80N/mm), reinforced PA guides are suitable for high load (≤120N/mm), and PEEK guides are suitable for extremely high load (≤150N/mm), avoiding guide deformation and fracture caused by insufficient bearing capacity.

5. Temperature Resistance and Corrosion Resistance

It is necessary to match the operating environment temperature of the equipment to avoid the guide softening, deforming at high temperature or brittle fracture at low temperature; at the same time, it is necessary to consider the environmental medium (such as acid-base solution, oil pollution, dust) and select materials with appropriate corrosion resistance. For example, PEEK and UHMW-PE guides are preferred for chemical scenarios, and food-grade PA and UHMW-PE guides are selected for food scenarios.

IV. Wide Application Scenarios: Covering Transmission and Conveying Needs of Multiple Industries

With the improvement of industrial automation level, chain plastic guides, with their unique advantages, have penetrated into the transmission and conveying systems of multiple industries and become indispensable core components. The main application scenarios include:

1. Automatic Production Lines and Intelligent Equipment

This is the most important application scenario of chain plastic guides, such as electronic component production lines, automobile parts assembly lines, 3C product production lines, etc. They are used for guiding and supporting roller chains and synchronous chains to realize precise material conveying and stable power transmission. Their self-lubricating and low-noise characteristics can ensure the high-speed and smooth operation of the production line, reduce equipment failures and improve production efficiency.

2. Food Processing and Packaging Industry

The food industry has extremely high hygiene requirements for equipment. Chain plastic guides (food-grade materials) have the advantages of no peculiar smell, non-adhesion, easy cleaning and corrosion resistance, and can directly contact food materials. They are often used in food conveyors, packaging machines, filling equipment, such as biscuit production lines, beverage filling lines, meat processing conveyors, etc., avoiding the problems of metal guide rust and lubricating grease polluting food.

3. Warehousing and Logistics Industry

In equipment such as stereoscopic warehouses, conveyors and sorters, chain plastic guides are used for guiding and supporting conveyor chains. Their light weight and convenient installation can reduce the overall weight of the equipment and energy consumption; at the same time, they are wear-resistant and impact-resistant, suitable for long-term high-frequency operation, which can effectively extend the service life of the equipment, reduce maintenance costs, and adapt to the efficient and continuous operation needs of the logistics industry.

4. Mining and Construction Machinery

The operating environment of mining and construction machinery is harsh, with much dust, much oil pollution and large load. Chain plastic guides have the advantages of corrosion resistance, wear resistance and impact resistance, and can be used for chain guiding of mining conveyors, excavators, loaders and other equipment, replacing traditional metal guides, solving the pain points of metal guides such as easy rust, fast wear and frequent maintenance, and improving the reliability of the equipment.

5. Other Special Industries

In special fields such as aerospace, nuclear industry and medical equipment, high-end plastic guides (such as PEEK guides) are used for guiding precision transmission systems by virtue of their high temperature resistance, high pressure resistance, corrosion resistance and electrical insulation characteristics to meet the operation needs of special working conditions; in agricultural machinery equipment, UHMW-PE guides can adapt to harsh outdoor environments, with UV resistance and anti-aging advantages, extending the service life of the equipment.

V. Selection Skills and Daily Maintenance: Extending the Service Life of Guides and Chains

The selection and daily maintenance of chain plastic guides directly affect their service life and the operational stability of the equipment. Mastering the following skills can effectively reduce operating costs and improve equipment reliability:

1. Core Selection Skills

Step 1: Clarify the chain model and specifications, and determine the guide groove size and width of the guide according to the chain pitch, chain width and roller diameter to ensure perfect adaptation to the chain; Step 2: Determine the guide material according to the equipment operating conditions (refer to the previous material selection), focusing on the three factors of temperature, load and medium; Step 3: Confirm the dimensional accuracy and installation method, and select linear, curved or special-shaped guides according to the equipment installation space to ensure convenient installation and accurate positioning; Step 4: Prioritize products from regular manufacturers to ensure material purity and processing accuracy, and avoid chain wear and equipment failures caused by inferior guides.

2. Daily Maintenance Points

① Regularly clean the dust and oil on the guide surface to avoid impurities entering the guide groove, causing chain jamming and guide wear; ② There is no need to add lubricants frequently. Only in high-temperature and high-load operation scenarios, a small amount of special lubricants (compatible with the guide material to avoid corrosion of the guide) can be added; ③ Regularly check the wear of the guide. If scratches, excessive wear or deformation of the guide groove are found on the guide surface, it should be replaced in time to avoid damaging the chain; ④ Avoid severe impact on the guide to prevent guide fracture and deformation; ⑤ When storing, place the guide in a dry and ventilated environment to avoid moisture and exposure to the sun, preventing material aging and deformation.

VI. Industry Development Trends: Lightweight, Precision and Customization

With the advancement of Industry 4.0, the demand for automatic and intelligent equipment is constantly increasing, and the chain plastic guide industry presents three major development trends:

First, lightweight upgrading. With the improvement of equipment energy-saving demand, the application of lightweight plastic guides will become more widespread. Through material modification, on the premise of ensuring bearing capacity and wear resistance, the weight of the guide will be further reduced, and equipment energy consumption will be reduced; second, precision improvement. High-end precision equipment has higher and higher requirements for the dimensional accuracy and operational stability of guides. The application of precision injection molding and CNC machining technology will promote plastic guides to develop in the direction of high precision, low friction and long service life; third, customization normalization. Different industries and different equipment have great differences in operating conditions. Customized guides (special-shaped structure, special material, special performance) will become the mainstream to meet the application needs of various special scenarios.

Conclusion

As the core supporting component of industrial transmission and conveying systems, the performance of chain plastic guides directly affects the efficiency, service life and operating cost of equipment. From material selection, performance judgment to scenario adaptation and daily maintenance, each link needs to be accurately controlled to give full play to its advantages of self-lubrication, wear resistance, corrosion resistance and light weight. With the continuous progress of engineering plastic technology and the upgrading and optimization of industrial equipment, chain plastic guides will be widely used in more industries, becoming an important support for the development of industrial automation, and providing a strong guarantee for enterprises to reduce maintenance costs and improve production efficiency.
