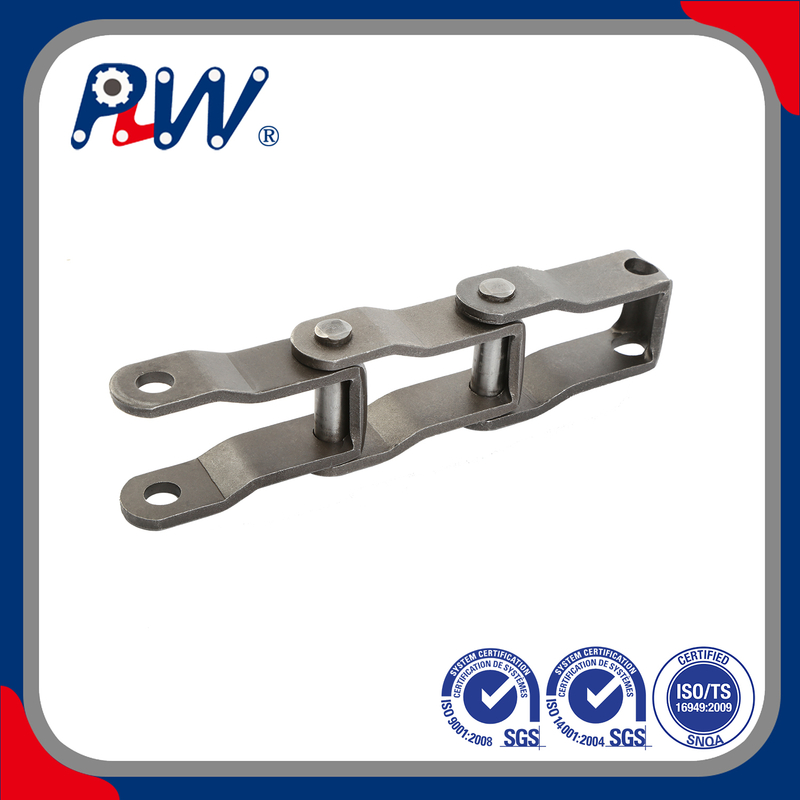

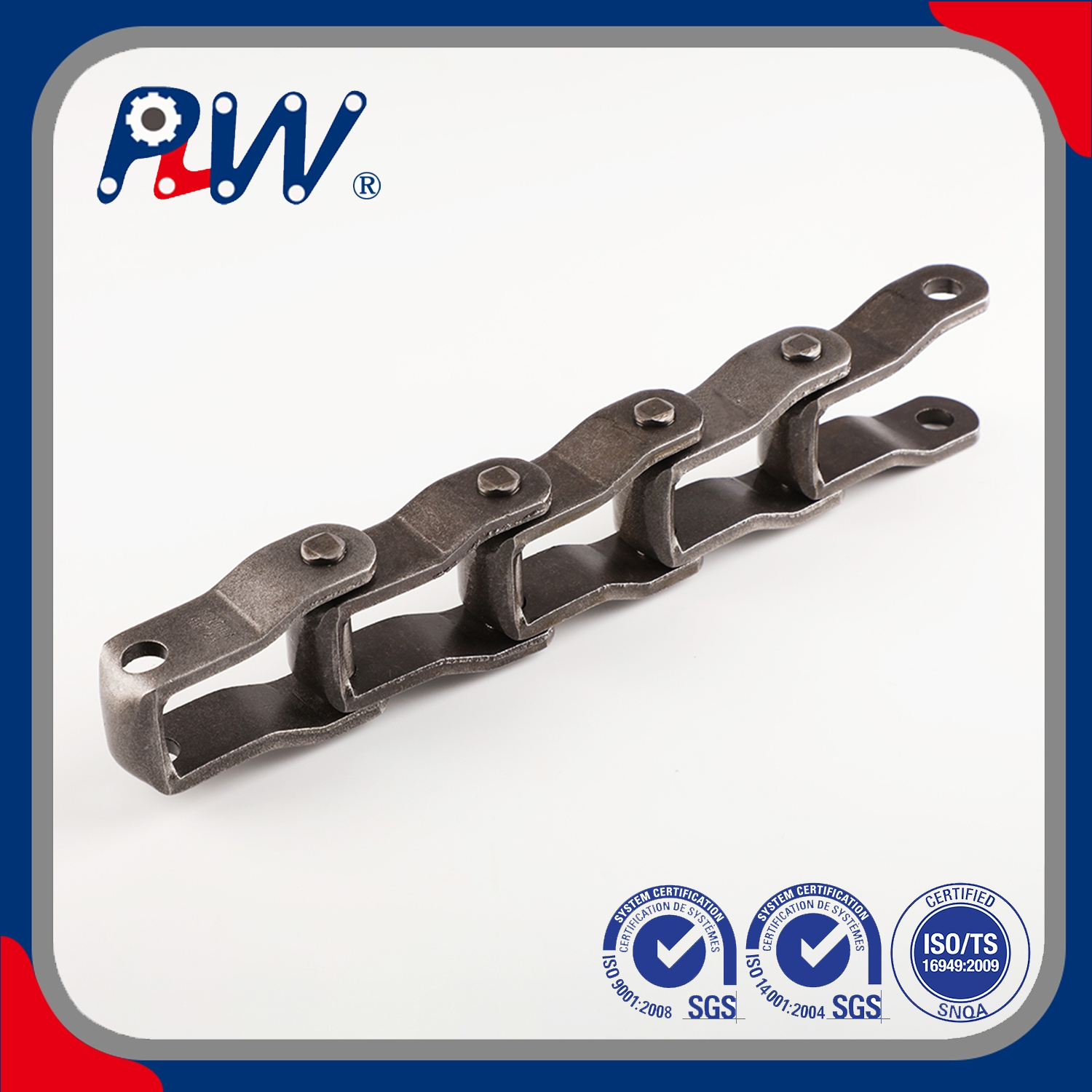

Introduction to Steel Pintle Conveyor Chain

Structural Composition

• Pintle Links: These are the main load-bearing elements, typically made from high-grade carbon steel or alloy steel. Each link features a protruding "pintle" (a cylindrical pin) on one end and a corresponding socket on the other, allowing adjacent links to interlock.

• Pintle Pins: The cylindrical pins that connect adjacent pintle links, forming a flexible yet strong joint. They are often heat-treated to enhance wear resistance and tensile strength.

• Rollers (Optional): Some designs include rollers around the pintle pins to reduce friction when the chain interacts with sprockets or guide rails, improving efficiency and extending service life.

• Connecting Links: Specialized links used to join the ends of the chain into a continuous loop, ensuring easy installation and maintenance.

Material and Performance Characteristics

• High Strength and Load Capacity: Constructed from high-quality steel (e.g., 1045 carbon steel or alloy steel), the chain can withstand heavy static and dynamic loads, making it suitable for conveying bulky or dense materials like 矿石，scrap metal, or construction debris.

• Durability and Wear Resistance: Components undergo heat treatment (e.g., carburizing, quenching, or tempering) to harden surfaces, resisting abrasion, impact, and fatigue even in long-term, high-cycle operations.

• Flexibility in Design: The pintle joint allows for a certain degree of articulation, enabling the chain to navigate curved conveyor paths or inclines/declines without compromising stability.

• Adaptability to Harsh Environments: While not inherently corrosion-resistant like stainless steel chains, steel pintle chains can be coated (e.g., with zinc or paint) or treated to resist rust in moderately damp or dusty environments. They also perform well in high-temperature settings compared to plastic or rubber conveyors.

• Easy Maintenance: Replaceable components (e.g., pintle pins, links) simplify repairs, reducing downtime. Regular lubrication of joints further extends service life.

Specification Standards

• Pitch: The distance between consecutive pintle centers (e.g., 2 inches, 4 inches), determining the chain’s size and load capacity.

• Link Thickness/Width: Affecting the chain’s strength and compatibility with sprockets or conveyor frames.

• Working Load Limit: The maximum load the chain can safely convey under normal operating conditions.

Application Fields

• Mining and Quarrying: Conveying coal, ore, gravel, and other extracted materials.

• Waste Management: Handling municipal solid waste, recyclables, or industrial scrap.

• Construction and Aggregates: Transporting sand, concrete blocks, or demolition debris.

• Agriculture: Moving bulk crops (e.g., grain, hay) or heavy farm equipment parts.

• Manufacturing and Heavy Industry: Assisting in production lines for automotive parts, steel products, or large machinery components.
