Competitive Price Bright Surface And High Precision Mechanical Equipment Accessories Stainless Steel Chain Sprocket

Competitive Price Bright Surface and High Precision Mechanical Equipment Accessories Stainless Steel Chain Sprocket

Material

• Common stainless steel materials include 201, 304, and 316. Among them, 304 stainless steel is widely used due to its excellent corrosion resistance; 316 stainless steel offers even stronger corrosion resistance, making it particularly suitable for highly corrosive environments such as chemical and marine industries.

Characteristics

• Strong Corrosion Resistance: It can maintain stable performance in humid, acid, alkali, or salt-containing corrosive environments, effectively preventing rust and corrosion. For example, in the chemical industry with strong corrosive substances, it can work stably for a long time to ensure the normal operation of production equipment.

• Good Wear Resistance: The high hardness of stainless steel reduces wear caused by friction during meshing transmission with chains, lowering the risk of chain loosening or breakage and extending equipment service life.

• Stable and Efficient Transmission: Through precise tooth profile design, it meshes with chains to maintain a constant transmission ratio, ensuring stable and reliable power transmission with high efficiency. It effectively avoids slipping, making it suitable for occasions requiring high transmission accuracy.

• Wide Adaptability to Working Conditions: It can operate normally in complex conditions such as high temperature, dust, and oil pollution, with strong environmental adaptability. Meanwhile, it can flexibly adjust the number of sprocket teeth and chain specifications according to different load and speed requirements to meet diverse transmission needs.

Tooth Profile Design

• Straight Line-Arc Tooth Profile: This tooth profile ensures smooth and free engagement and disengagement of the chain, minimizes impact and contact stress during meshing, has a strong capacity to accommodate chain pitch growth due to wear, and is relatively easy to process.

• Double Arc Tooth Profile: It offers excellent meshing performance, enabling more uniform contact between chain links and sprockets, reducing local wear, improving transmission efficiency, and is also easy to manufacture.

Models and Specifications

• Non-standard Sprockets: Customized according to drawings provided by customers to meet special size, installation requirements, or transmission needs of mechanical equipment.

• Standard Sprockets: There are two main standards: American (inch-based) and metric. The size of a sprocket is determined by its diametral pitch and the number of teeth, while the specific model is selected based on installation dimensions, speed ratio, torque, and equipment application.

Application Fields

• Food Industry: In food processing and packaging equipment, stainless steel sprockets do not contaminate food due to corrosion, meeting food hygiene requirements.

• Chemical Industry: In environments with various acids, alkalis, salts, and other strong corrosive substances, stainless steel sprockets can work stably for a long time, ensuring the continuity of production processes.

• Pharmaceutical Industry: In pharmaceutical production equipment, the corrosion resistance and hygiene of stainless steel sprockets ensure drug quality and safety, avoiding impurities from equipment corrosion that may affect drug quality.

• Mechanical Engineering: In the transmission systems of various mechanical equipment, stainless steel sprockets stably transmit power under different working conditions, reducing maintenance costs and improving equipment operating efficiency.

• Logistics and Transportation: In equipment such as conveyors and elevators, stainless steel sprockets adapt to various environmental conditions, ensuring smooth cargo transportation.

• Paper Industry: In the transmission systems of papermaking machinery, stainless steel sprockets resist moisture and chemical erosion, ensuring stable equipment operation and improving paper production quality.

• Printing Industry: In printing equipment, stainless steel sprockets ensure transmission accuracy, making the printing process more stable and improving the quality of printed products.

03-085sprocket.pdf

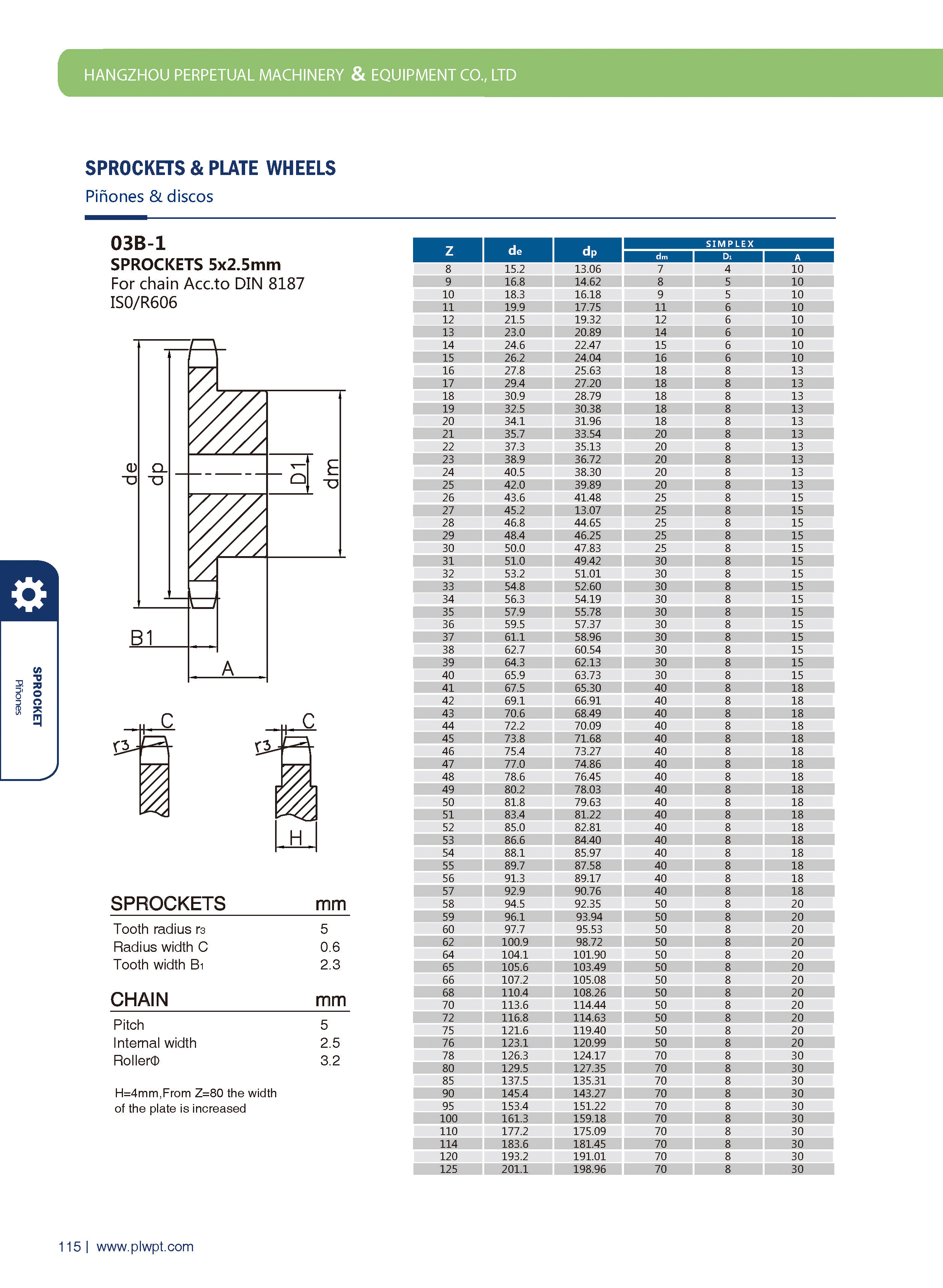

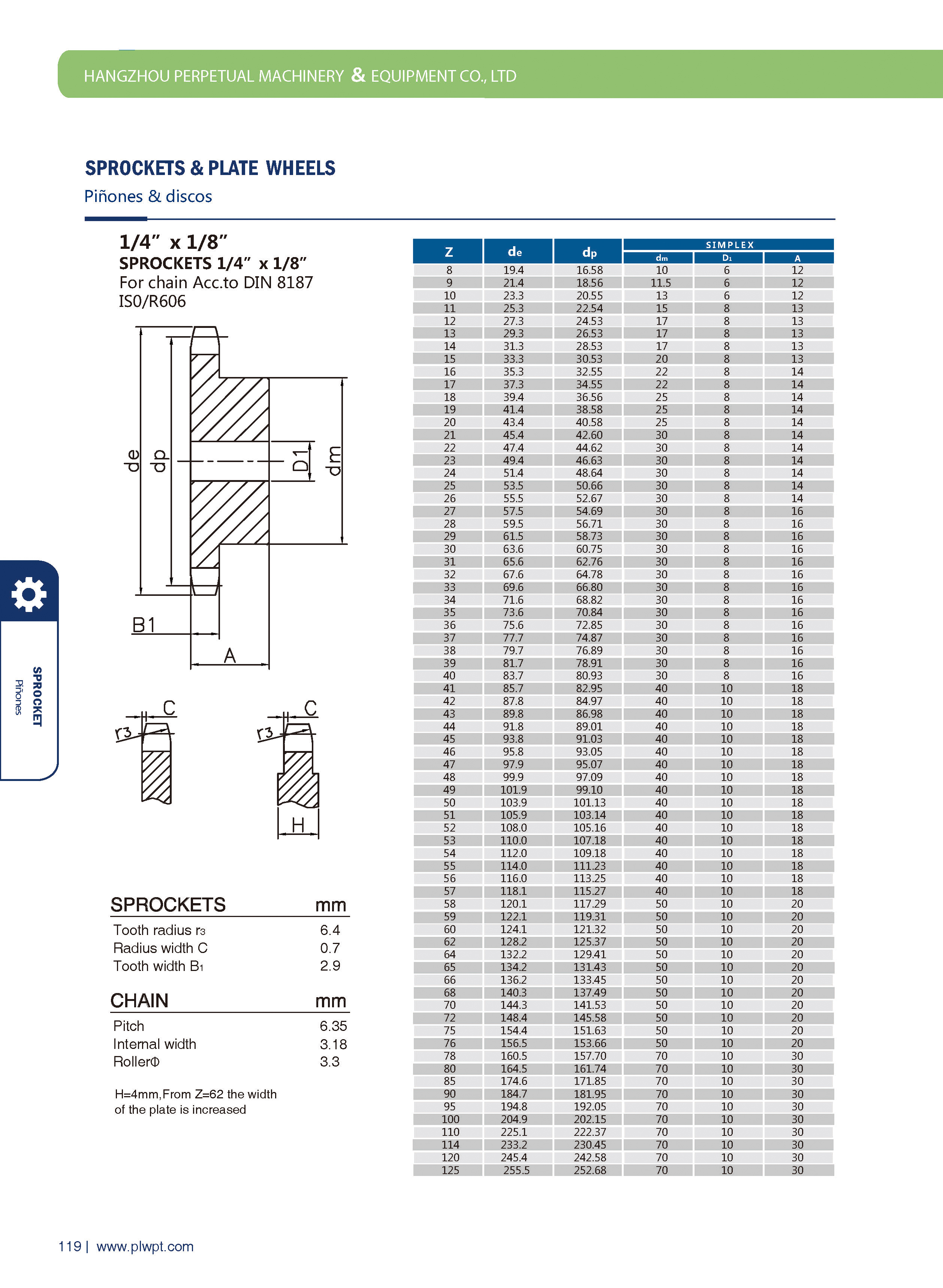

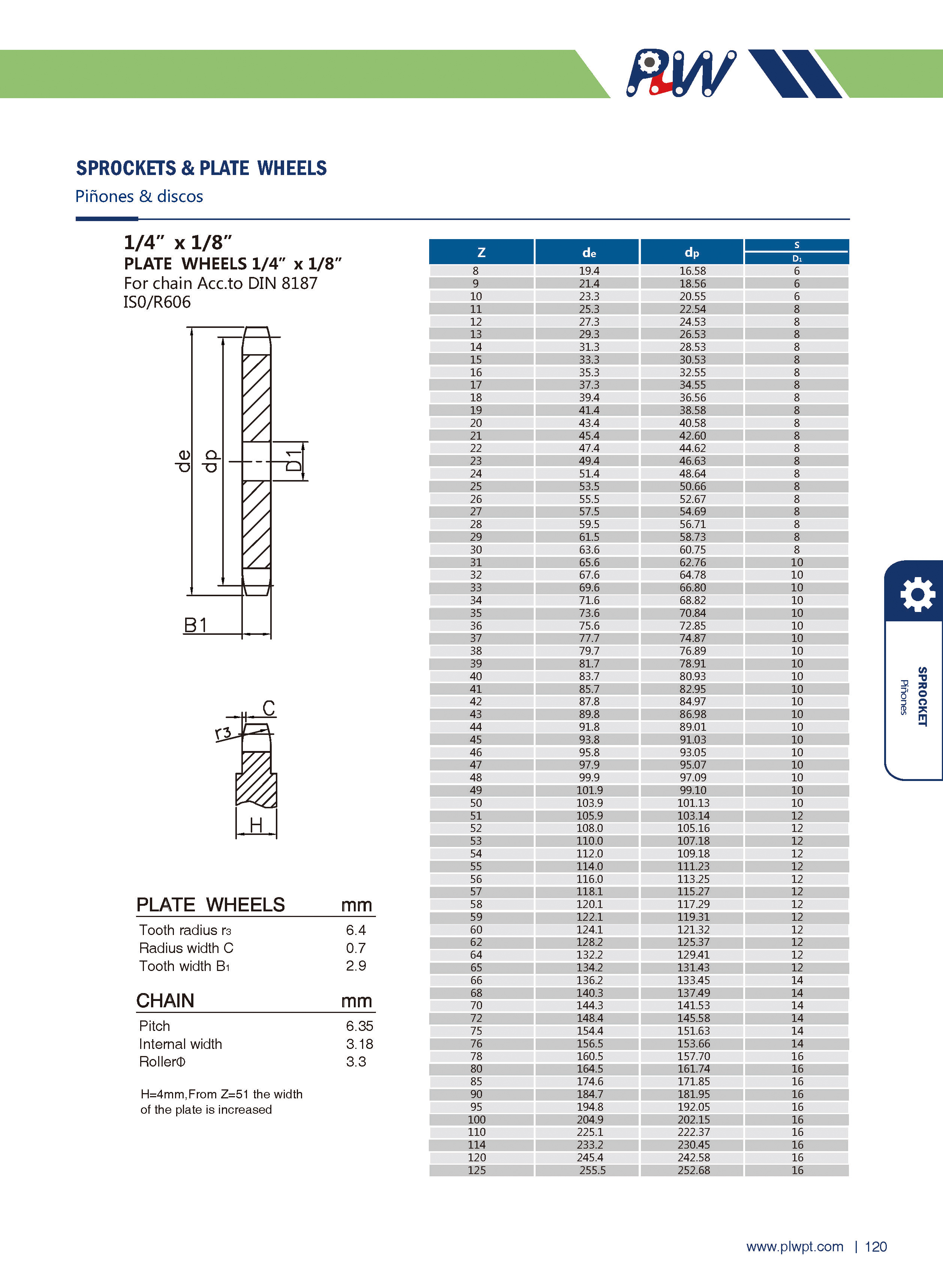

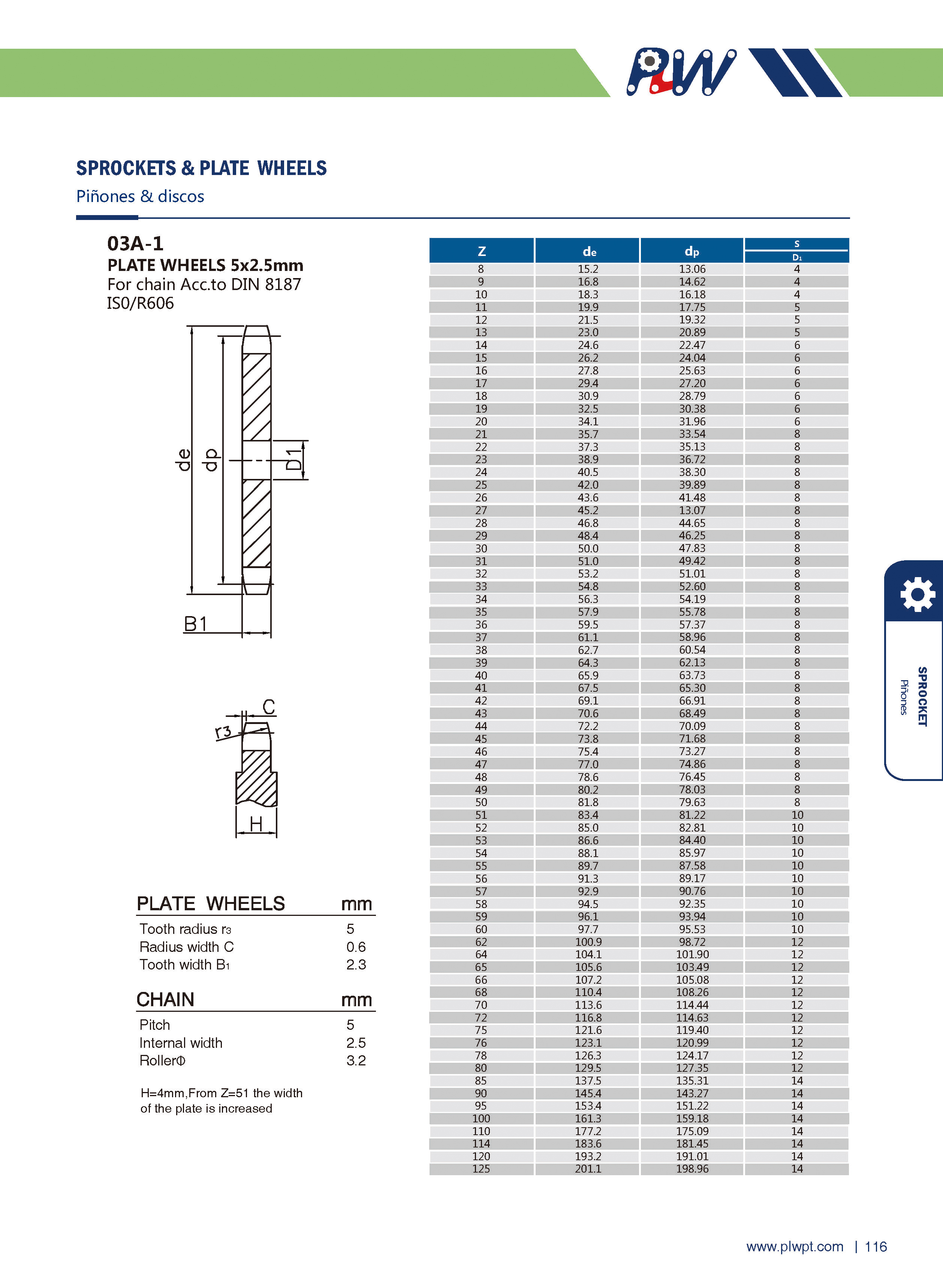

Chain Wheel Catalog.pdf

Application

High temperature environment, corrosive environment
