What Are The Common Materials for Gears? In What Scenarios Are They Each Applicable To?

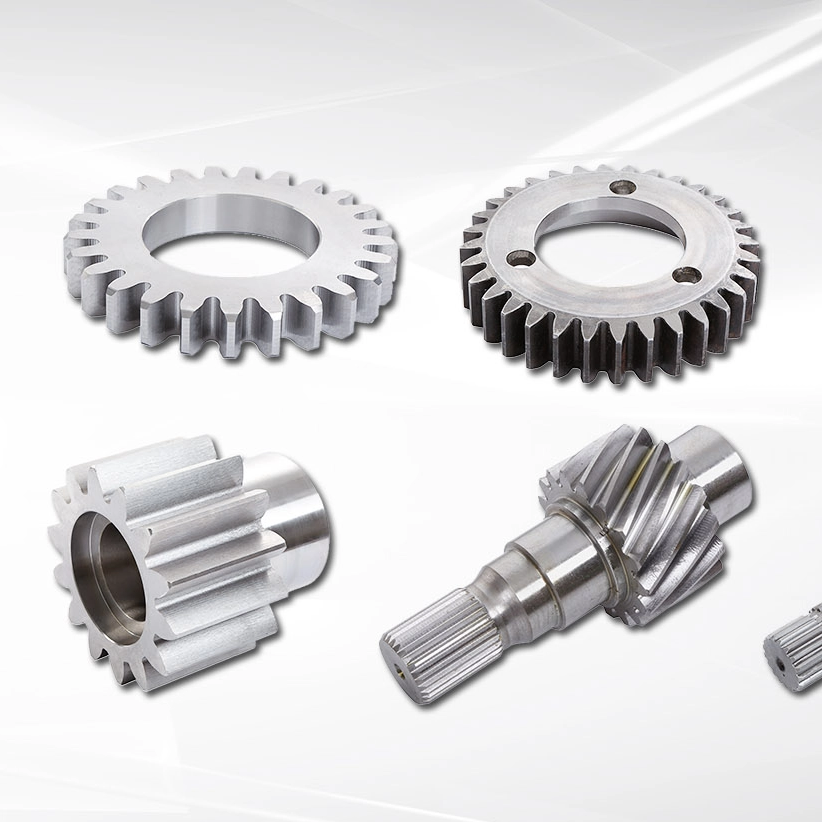

Gears are crucial in power transmission as they transfer motion and torque between components. The performance of gears depends on the kind of raw material used to construct them. This article will answer the question, "What are the common materials for gears?” You’ll also learn the material’s advantages and applicable scenarios.

Copper Alloy Gears

Copper alloys are used for harsh operating conditions. The three most common ones are brass, phosphor bronze, and aluminum bronze.

• Brass: Brass is a copper alloy made of copper and zinc. The amount of zinc content is different in brass alloys, and its content changes the ductility of the alloy. For example, low zinc content maintains a high level of ductility, while a high zinc content reduces the alloy’s ductility. The copper content results in easy machinability and antimicrobial benefits.

Brass gears, such as spur gears, are mostly used in low-load environments where stress is minimal.

• Phosphor bronze: Phosphor bronze is a copper alloy made of copper, tin, and phosphorus. The tin content increases the alloy strength ,while the phosphorus improves stiffness. Phosphor bronze is most suitable in high-friction drive components. It is also used to produce worm wheels, which can resist degradation due to the lubricant.

• Aluminum bronze: Aluminum bronze is a copper alloy made of copper, aluminum, iron, nickel, and manganese. Gears made from aluminum bronze alloys include crossed-axis helical gears, which are known as screw gears and worm wheels.

Advantages of Copper Alloy Gears

• Corrosion resistance: Copper alloys have high corrosion resistance due to their tin and copper content. Furthermore, the addition of phosphorus improves its wear resistance, making it capable of handling more loads than other gear material types.

• Ductility: Copper alloys with low zinc content have high ductility. This means that copper alloy gears are malleable. Their form can be changed without compromising their toughness.

Applicable Scenarios of Copper Alloy Gears

Copper alloy gears are used in applications that can withstand high torque, high speed, and shock loading without failure. Some of these applications include:

• Heavy-duty machinery

• Mining equipment

• Automotive transmission systems

• High-load industrial operations

• Construction equipment

Iron Alloy Gears

Iron alloys are used in situations where a gear design requires a superior material strength. In its raw form, gray iron can be machined into gears. There are different types of iron alloy gears.

• Cast iron: Cast iron gears are a traditional material for gears, available in different forms. It is an ideal choice for gears that demand vibration control and affordability.

• Steel gears: Steel is an alloy of carbon, iron, and other elements. There are carbon steel and stainless steel. Carbon steel alloys are used for most types of gears because they can be hardened and are widely available. Carbon steel can be further classified into mild steel, medium-carbon steel, and high-carbon steel.

Mild steel carbon alloys have less than 0.3% carbon content. High-carbon steel has a carbon content greater than 0.6%, while medium-carbon steel has a carbon content that falls between. These steels are used to produce spur gears, helical gears, gear racks, worms, and bevel gears.

Carbon steels can be induction hardened, laser hardened, or carburized. Carbon alloy steels contain additional elements like aluminum, chromium, copper, and nickel that make them stronger than plain carbon steel.

Stainless steels have a minimum chromium content of 11% and contain additional elements like nickel, nitrogen, sulfur, phosphorus, and silicon. Stainless steel is further divided into ferritic, austenitic, martensitic, and precipitation-hardened.

Ferritic steel gears are magnetic and are designated as 300 series stainless steels, while austenitic gears are not magnetic and are designated as 400 series stainless steels.

Advantages of Iron Alloy Gears

• Wear resistance: Iron alloy gears boast of exceptional wear resistance and can handle heavy loads. They can also resist wear for more cycles.

• Noise-dampening properties: Iron alloy gears have excellent vibration and noise-dampening properties. Thus, they are useful in situations that require smooth and quiet operation.

• Corrosion resistance: Iron alloy gears have improved corrosion resistance, making them ideal for wet environments or hygienic applications.

• Easy machinability: Iron alloy gears are easy to machine and can be cast into complex shapes. They are also inexpensive, as you can find them around you.

Applicable Scenarios of Iron Alloy Gears

Iron alloy gears are used in large, heavy-duty applications that require quiet operation. Examples of these include:

• Heavy machinery bases

• Large industrial gearboxes

• Low to medium speed systems

Tool Steel Alloy Gears

Tool steel alloys have traces of cobalt, molybdenum, tungsten, and vanadium. These additional elements

Advantages of Tool Steel Alloy Gears

• Heat resistance: Tool steel alloys maintain their hardness even at high temperatures, making them ideal for die-casting applications.

• Durability and stability: These gears are stable and resist deformation under high mechanical stress, ensuring high precision and tight tolerances.

• Hardness and wear resistance: Tool steel alloys have high wear resistance, maintaining their sharp edges over time.

Applicable Scenarios of Tool Steel Alloy Gears

• High-speed automotive transmission

• Metal forming

• Aerospace application

• Mining and heavy machinery

• High-temperature operating environments

Aluminum Alloy Gears

Aluminum alloys are a good alternative to iron alloy gears in applications that require a high strength-to-weight ratio. These alloys are one-third the weight of steel alloys of the same size. They usually undergo a surface finish, known as passivation, to protect them from oxidation and corrosion. Passivation coats the surface, protecting the gears from further damage.

Aluminum alloy gears are used to produce spur gears, helical gears, straight tooth bevel gears, and gear racks.

Advantages of Aluminum Alloy Gears

• Easy to machine: These gears have improved machinability that makes them easily form into complex shapes and designs.

• Stress resistance: Aluminum alloy gears, especially the 2024 and 7075 aluminum, have high strength that is resistant to stress loading.

• Corrosion resistance: These gears, with a combination of silicon and magnesium, have good corrosion resistance. They are also weldable.

Applicable Scenarios of Aluminum Alloy Gears

Aluminum alloy gears are used in the following applications:

• Aerospace industry

• Robotics and automation, including automotive subsystems

• Marine and outdoor equipment

• High-speed or enclosed gearboxes

Thermoplastic Gears

Thermoplastics gears are often machined like metallic gears. However, some thermoplastics are suitable for manufacturing via injection molding. One of the most common gears produced this way is acetal, which is also called polyacetal or polyoxymethylene (POM).

Polyoxymethylene is available in two forms: (1) homopolymer and (2) copolymer. Gears like spur gears, helical gears, bevel gears, and gear racks can be made from either of them.

Another form of themoplastics is the nylon gear. Nylon gears can be produced with fiberglass or carbon fibers, possessing high mechanical strength. They are used to produce worm wheels, gear racks, spur gears, and straight tooth bevel gears.

Advantages of Thermoplastic Gears

• Dimensional stability: These gears maintain dimensional stability under large temperature ranges.

• Self-lubricating: These gears are self-lubricating, thus possessing an excellent material for wear surfaces.

• Absorb vibration: Thermoplastics, such as nylon, are excellent at absorbing vibration, making them suitable for quiet operation.

Applicable Scenarios of Thermoplastic Gears

Thermoplastic gears are used in scenarios that require low noise and weight reduction. Here are some examples of these:

• Consumer electronics and home appliances

• Medical and health care devices

• Industrial and robotic applications

• Toys and hobbies

• Office equipment and specialized tools

Factors Influencing Gear Material Selection

• Application Requirements: Select your gear material depending on the application requirements. For example, if the gear will operate under heavy load, use high-strength alloy steel. A stainless steel gear is most suitable in moist or chemically corrosive environments.

• Operating conditions: Take into account operating conditions, e.g., temperature, humidity, and chemical corrosion. Select a gear that can withstand the operating conditions and remain stable and durable.

• Cost: When choosing gear material, assess the overall cost-effectiveness. Choose a gear that has high-performance if it is within your budget. This will provide significant benefits of a longer lifespan.

• Use modern technology: Utilize modern technology to examine the performance of your gear material. This will assist you in choosing a gear material option that will work well under certain conditions and avoid failures.

• Choose a reputable supplier: Partner with a trusted supplier closely to provide quality and consistency of gear material. Their experience will help you to select the most suitable gear for your application.

• Conduct material testing: Conduct continuous material testing to ascertain the performance of gears. This will provide you with knowledge of the mechanical qualities and wear resistance of the gears. It will also assist you in the process of identifying the possible weak areas and troubleshooting at an early stage.

Conclusion

This article has outlined the common materials for gears, their applicable scenarios, and how you can select the most suitable one. The right material will enhance the efficiency and reliability of your transmission system and, in addition, enable your business to succeed in a competitive environment.

Get in touch with HANGZHOU PERPETUAL MACHINERY & EQUIPMENT Co., LTD. in case you would like to learn more or if you are in need of an expert.

FAQs

What is the strongest material for gears?

The strongest material for gears is the carburized alloy steel. These gears offer high surface hardness with high ductility to prevent fatigue and wear.

Are plastic gears durable enough for industrial use?

Yes, plastic gears are durable enough for industrial use, as long as they are applied to light-to-medium duty applications. However, they are not ideal for heavy-duty machinery.

What is the most cost-effective gear material?

Carbon steel is the most cost-effective gear material. It is widely available and is easy to machine, making it ideal for low-cost applications.

What is the best material for gears?

Steel is the best material for gears, offering high strength, wear resistance, durability, and hygienic properties. Thus, steel gears, especially stainless steel, are used in moist areas or scenarios where hygiene is required.

Can aluminum be used for gears?

Yes, aluminum can be used for gears as they possess corrosion resistance, low weight, and low inertia. They are used in aerospace, robotics, and consumer electronics.
