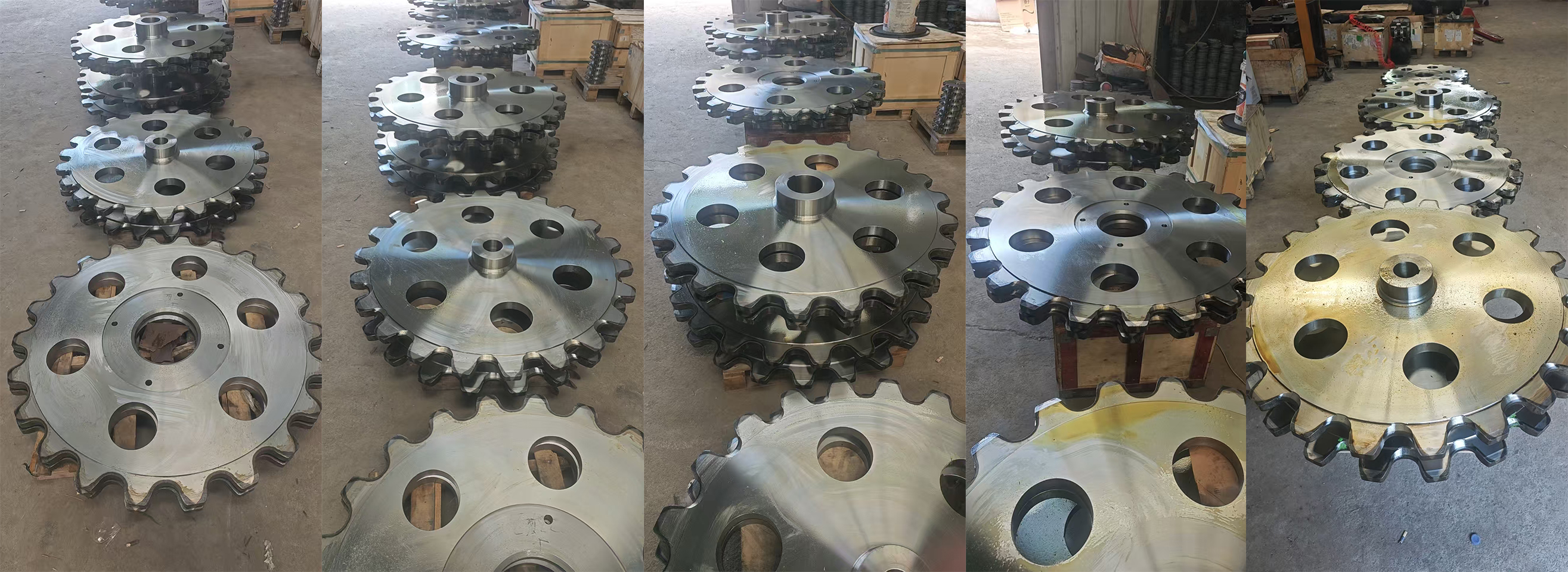

Flame Cut Sprockets: The Cost-Effective Choice for Large-Size & Non-Standard Sprockets

A sprocket may look like a relatively simple mechanical component, but its dimensional accuracy, tooth profile, concentricity, and material properties have a direct impact on chain engagement, transmission efficiency, noise, and service life.

For heavy-duty industrial sprockets, a typical manufacturing process can be organized into several key stages:

Steel Plate → Flame Cutting → CNC Machining → Tooth Milling → Heat Treatment → Inspection

Each stage plays an important role in achieving the required performance and reliability of the finished sprocket.

1. Steel Plate Selection

The manufacturing process starts with the selection of suitable steel plate according to the sprocket's application, load requirements, dimensions, and operating environment.

Common materials include carbon steel and alloy steel grades such as Q235, 45# steel, 40Cr, and other engineering steels, depending on the customer's technical requirements.

Material selection should consider:

• Tensile and yield strength

• Hardness requirements

• Wear resistance

• Machinability

• Heat treatment compatibility

• Operating load and service conditions

For heavy-duty sprockets, material quality is particularly important because the teeth are continuously subjected to contact stress and impact loads during chain engagement.

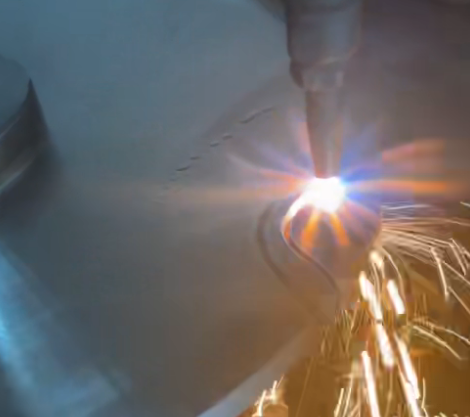

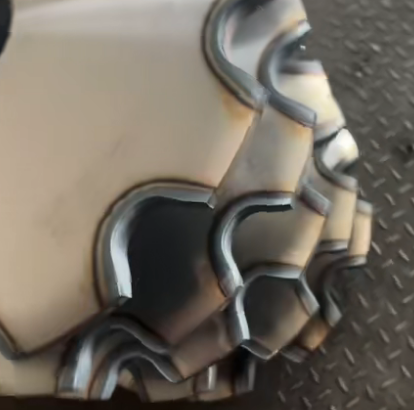

2. Flame Cutting of the Steel Plate

After material selection, the steel plate is cut into the approximate sprocket blank using an oxy-fuel flame cutting process.

Flame cutting is particularly suitable for large-diameter and relatively thick steel plates because it provides an economical way to produce large sprocket blanks.

At this stage, the objective is not to achieve the final sprocket dimensions. Instead, sufficient machining allowance is reserved for subsequent CNC machining and tooth milling.

The cutting process needs to be properly controlled to minimize:

• Excessive heat input

• Cutting deformation

• Edge irregularities

• Dimensional deviation

For large sprockets, reasonable cutting parameters and sufficient machining allowance are important for maintaining dimensional stability during subsequent machining.

Advantages

• Suitable for large-diameter sprockets. When forging or casting is costly, flame-cut blanks are more economical with shorter lead times.

• Flexible for small batches and non-standard sizes, no mould required.

• Steel plate raw materials are easy to source.

Disadvantages (Key Points)

1. Low accuracy: Flame-cut tooth surfaces are rough with thermal deformation and kerf. Large errors in tooth pitch and tooth profile; the teeth cannot be directly used as finished teeth.

2. Heat-affected zone: High cutting temperature hardens the material near the cut edge and creates residual internal stress, which may lead to cracking. Stress relief treatment is required in subsequent processes.

3. Not suitable for high-speed and high-precision transmission (e.g., high-speed conveying, precision drive sprockets).



Applicable vs Non-applicable Scenarios

✅ Applicable: Mining, agricultural machinery, large conveying equipment, low-speed scraper chains, large-pitch chains, large-diameter non-standard sprockets.

❌ Non-applicable: High-speed, precision transmission and small-size sprockets; applications requiring high tooth surface wear resistance and low noise (for these cases, forged blanks + gear hobbing are preferred).

Comparison with Forged Sprockets

• Flame-cut sprocket: Blank cut from steel plate, low cost and fast delivery; low precision, for low-speed heavy-load service.

• Forged sprocket: Forged blank with continuous and dense metal grain structure; superior strength and wear resistance, suitable for medium/high speed and severe load conditions.

3. CNC Machining of Bore and Faces

After flame cutting, the sprocket blank is transferred to the machining process.

The center bore, mounting surfaces, keyways, and other critical dimensions are machined according to the technical drawing.

The bore and end faces are particularly important because the sprocket must maintain proper concentricity with the shaft.

Typical machining operations may include:

• CNC turning

• Boring

• Face machining

• Keyway machining

• Drilling and tapping

• Chamfering

Accurate machining of the bore and reference surfaces provides a reliable datum for the subsequent tooth milling process.

Poor concentricity between the bore and tooth profile can result in uneven chain engagement and increased vibration during operation.

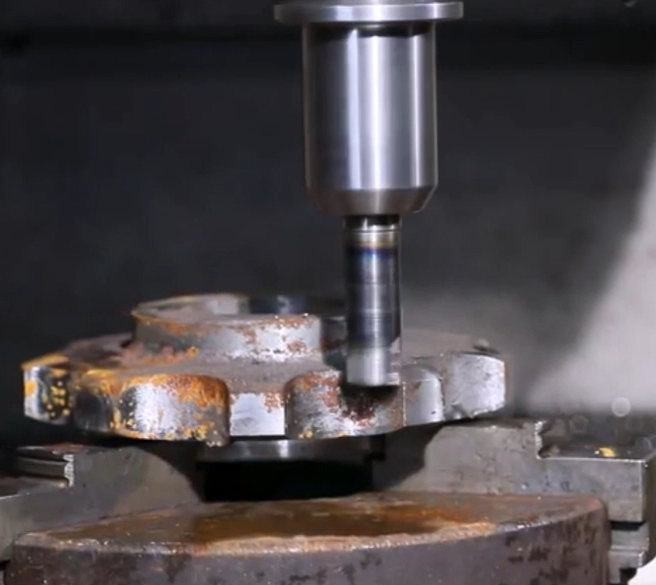

4. Tooth Milling

Tooth machining is one of the most critical stages in sprocket manufacturing.

The sprocket tooth profile must correspond accurately to the chain specification to ensure smooth engagement between the roller chain and sprocket.

Depending on the sprocket design and production requirements, tooth profiles can be produced using CNC milling, sprocket milling machines, or other dedicated machining processes.

Important parameters include:

• Number of teeth

• Pitch

• Roller diameter

• Tooth profile

• Tooth width

• Root diameter

• Outside diameter

• Pitch diameter

The tooth profile must be controlled carefully because dimensional errors can affect chain engagement, transmission smoothness, and sprocket service life.

For industrial applications, the machining process should be performed according to the applicable chain and sprocket standards or the customer's technical drawings.

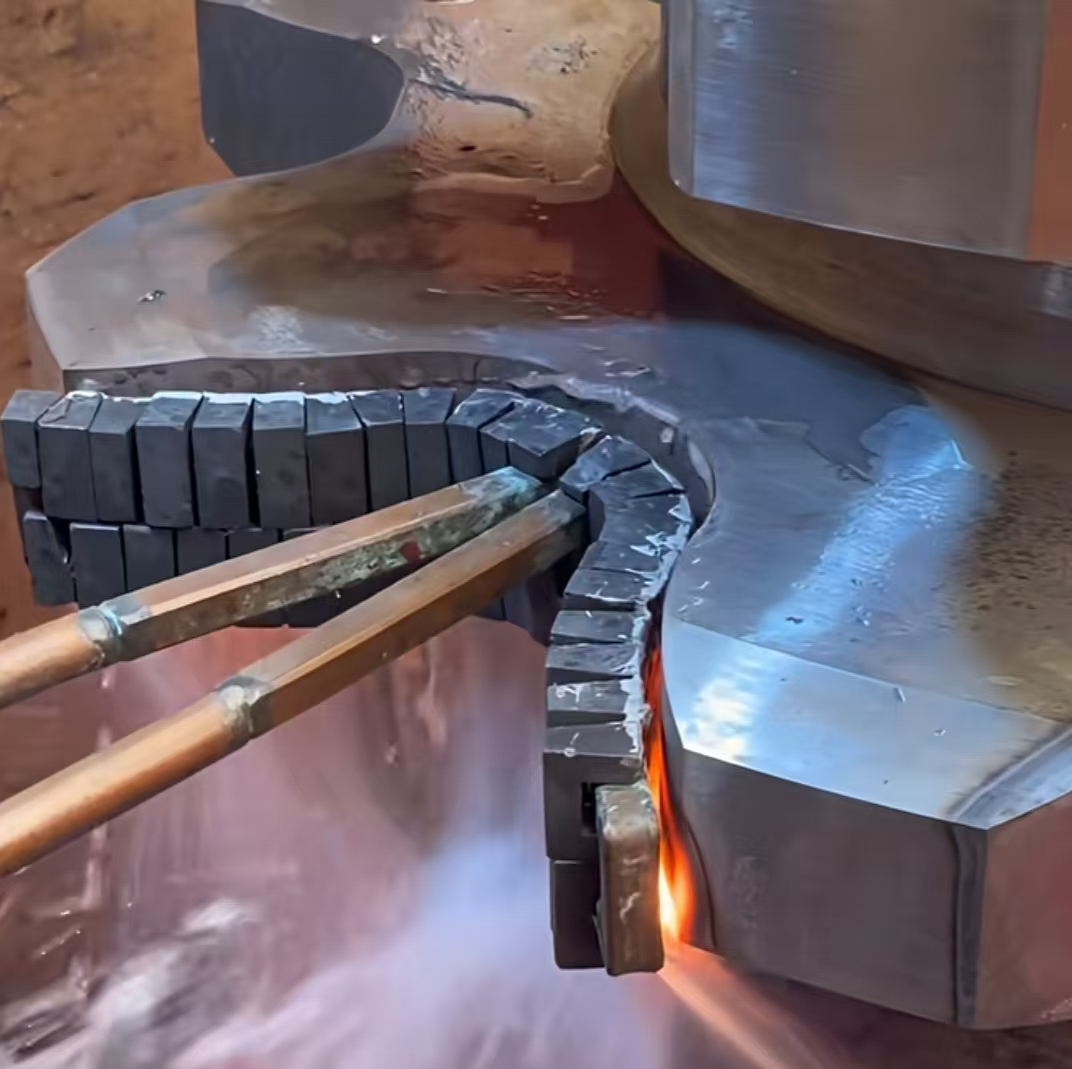

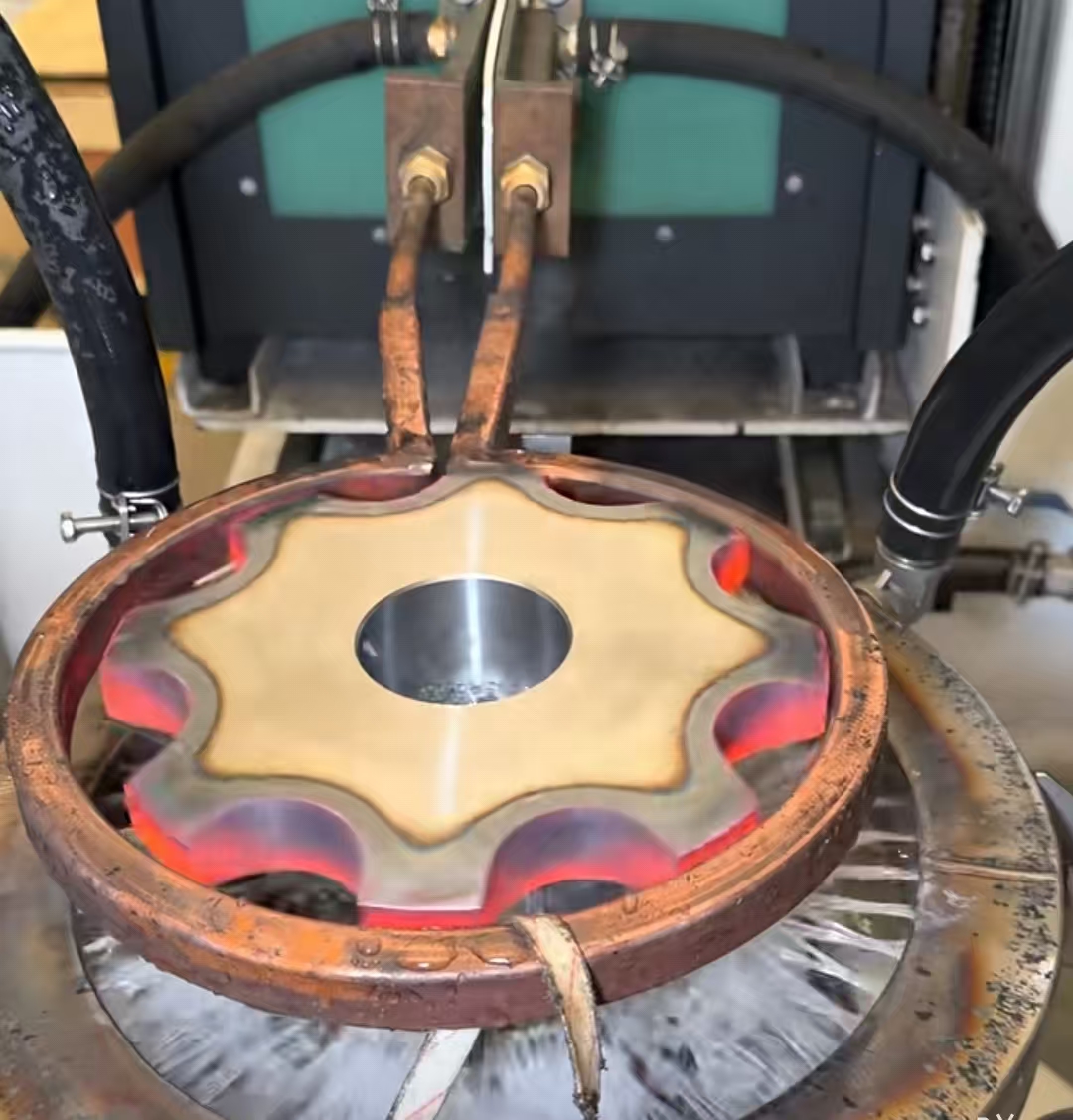

5. High-Frequency Induction Hardening

After tooth machining, the sprocket teeth can be treated using high-frequency induction hardening.

Unlike conventional bulk heat treatment, induction hardening uses an electromagnetic field to rapidly heat the selected surface area, followed by controlled quenching.

For sprockets, the process can be concentrated on the tooth working surfaces where wear and repeated contact stresses are most significant.

Why High-Frequency Induction Hardening?

High-frequency induction hardening provides several advantages for sprocket applications:

• Increased surface hardness

• Improved tooth wear resistance

• Enhanced resistance to repeated contact stress

• Localized treatment of critical working areas

• Relatively limited heating of the surrounding material

• Good repeatability when process parameters are properly controlled

The hardened tooth surface provides improved resistance to wear, while the underlying material can retain a comparatively tougher structure.

This combination of a hard working surface and a tougher core is particularly useful for sprockets used in demanding chain transmission applications.

Key Process Parameters

The induction hardening process needs to be carefully controlled according to the sprocket material, tooth geometry, and required hardness.

Important parameters include:

• Heating frequency

• Heating temperature

• Heating time

• Induction coil design

• Scanning or rotation speed

• Quenching method

• Quenching temperature

• Required hardened depth

Different sprocket sizes and materials may require different process parameters. Therefore, the induction hardening procedure should be developed according to the specific material and technical requirements.

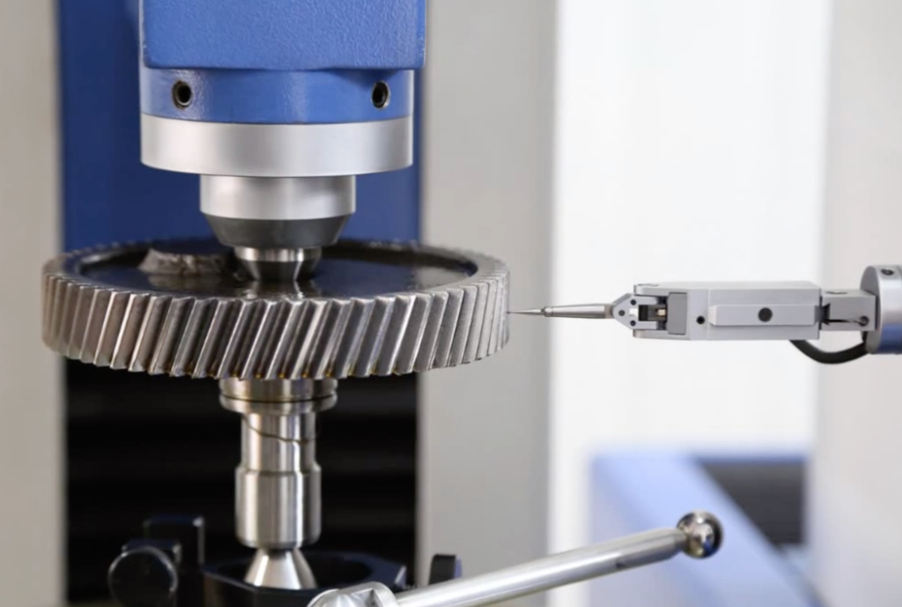

6. Final Inspection

After heat treatment, the sprocket undergoes final inspection before shipment.

Key inspection items may include:

• Outside diameter

• Bore diameter

• Pitch diameter

• Tooth profile

• Tooth thickness

• Concentricity

• Face runout

• Keyway dimensions

• Hardness

• Overall dimensions

For critical applications, additional dimensional inspection or hardness testing can be performed according to the customer's quality requirements.

The purpose of final inspection is to verify that the finished sprocket meets the technical drawing, applicable standards, and agreed quality specifications.

7. Why the Manufacturing Process Matters

The quality of a sprocket is not determined by a single machining operation. It is the result of the entire manufacturing process.

Steel selection determines the basic mechanical properties.

Flame cutting provides an economical and efficient method for producing large blanks.

CNC machining establishes accurate reference surfaces, bore dimensions, and mounting geometry.

Tooth milling determines the accuracy of chain engagement.

Heat treatment improves the mechanical properties and wear resistance required for demanding applications.

Finally, inspection verifies that the finished sprocket meets the required dimensional and performance specifications.

A well-controlled manufacturing process helps produce sprockets with consistent dimensions, reliable chain engagement, and stable performance in industrial power transmission systems.

Conclusion

From a simple steel plate to a finished industrial sprocket, every manufacturing stage contributes to the final product's performance.

For large and heavy-duty sprockets, the combination of flame cutting, precision machining, tooth milling, and appropriate heat treatment provides an effective manufacturing route that balances production efficiency, dimensional accuracy, durability, and cost.

By controlling each stage of the process and maintaining appropriate inspection standards, manufacturers can provide sprockets suitable for a wide range of industrial applications, including conveyors, material handling equipment, agricultural machinery, mining equipment, and power transmission systems.
