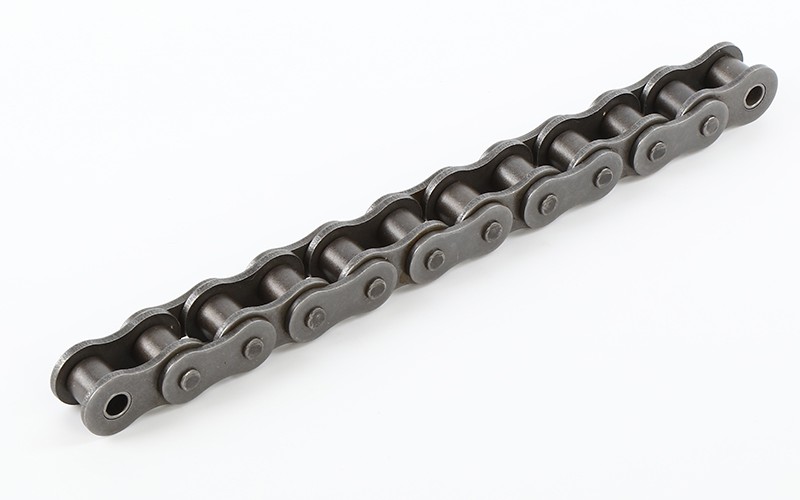

Is a 420 chain the same as a 40 chain?

No, a 420 chain is not the same as a 40 chain. You will notice the main difference in the width and overall strength. These differences matter because they affect how well the chain fits on your sprocket and how much power it can handle. Using the wrong chain can lead to poor performance or even damage to your equipment.

Key Takeaways

• 420 and 40 chains have the same pitch but differ in width and strength.

• Using the wrong chain can lead to poor performance and equipment damage.

• Always match chain pitch and width to sprocket specifications for optimal fit.

• 420 chains are stronger and suited for high-powered applications like mini bikes.

• Check chain specifications carefully to avoid confusion and ensure safety.

420 Chain vs 40 Chain

Pitch and Length Comparison

You might think that chains with similar numbers have different measurements, but both the 420 chain and the 40 chain share the same pitch. Pitch refers to the distance between the centers of two consecutive pins. This measurement is important because it determines how the chain fits onto the sprocket teeth. If you use a chain with the wrong pitch, the chain will not mesh properly with the sprocket. This can cause uneven tension and extra wear on the sprocket teeth.

Here is a table showing the pitch for both chains:

You can see that both chains have a pitch of 1/2 inch. This means they will fit sprockets designed for this pitch. However, you must always check the pitch before installing a chain. Using a chain with incorrect pitch can lead to problems like chain stretching and damage to the sprocket.

Tip: Always match the pitch of your chain to the pitch of your sprocket to avoid mechanical issues.

Width and Strength Differences

Although the pitch is the same, the width and strength of the chains are not. The width affects how tightly the chain fits on the sprocket. Even a small difference can change how the chain performs. Here is a table comparing the widths:

The 40 chain is slightly wider than the 420 chain. This small difference can cause extra side play if you use a 40 chain on a sprocket made for a 420 chain. Side play means the chain can move sideways, which can lead to faster wear and less efficient power transfer.

Strength is another key difference. The 420 chain is known for its higher tensile strength. You can use it for high-powered applications like mini bikes and go-karts. The 40 chain is more common in light industrial settings. It does not handle as much force and is considered lower quality for demanding uses.

You should also consider the material and pre-stretching. Manufacturers often pre-stretch the 420 chain during production. This process helps reduce initial stretching when you first use the chain. The steel used in the 420 chain is usually thicker and stronger. This makes it last longer and perform better under stress.

Maintenance requirements differ as well. Some 40 chains, like the HySecurity Lube-Free #40 Chain Replacement Kit, require less maintenance. You can use them in high-traffic areas without frequent lubrication. The 420 chain usually needs more regular maintenance to keep it running smoothly.

If you need replacement parts, you will find both chains in the Fun Kart and Mini Bike industry. You can easily buy them in the market.

Note: Choosing the right chain for your equipment ensures better performance and longer life. Always check the width, pitch, and strength before making a decision.

Compatibility and Interchangeability

Sprocket Fit and Side Play

You need to pay close attention to how your chain fits on the sprocket. Even a small difference in width can change how your equipment works. The 420 chain and the 40 chain have almost the same pitch, but their roller widths are not identical. Here are the recommended sprocket widths:

• 420 chain roller width: 6.35mm

• #41 sprocket width: 6.38mm

If you use a 40 chain on a sprocket made for a 420 chain, you will notice extra side play. Side play means the chain can move sideways on the sprocket. This movement can cause the chain to slip or wear out faster. You may also hear unusual noises or feel vibrations during operation.

Industry standards, such as ANSI/ASME and ISO British standards, help define roller chain sizes. These standards make sure chains and sprockets match correctly. The pitch of a 420 motorcycle chain matches ANSI 40 and 41 chains, but the 420 chain is narrower. This difference makes them incompatible for most uses.

Tip: Always check the roller width and sprocket size before installing a new chain. A tight fit improves performance and reduces wear.

Here is a table showing how side play changes when you use the wrong chain:

Risks of Mixing Chains

You might think you can swap chains if the pitch matches, but mixing chains can cause problems. When you use a 40 chain on a 420 sprocket, the chain sits too loosely. This loose fit increases side play and can lead to chain skipping or jumping off the sprocket. You risk damaging both the chain and the sprocket.

Mixing chains also affects safety. A chain that does not fit well can break under stress. You may face sudden failures, which can cause accidents or damage your equipment. You should always follow industry standards for chain and sprocket compatibility.

• Roller chain sizes are standardized to ensure proper fit.

• The pitch may match, but the width difference makes the chains incompatible.

Note: Using the correct chain for your sprocket keeps your equipment safe and reliable. You protect your investment and avoid costly repairs.

If you want your equipment to last longer and perform better, choose the right chain every time. You will avoid unnecessary risks and keep your machines running smoothly.

Why the Confusion?

Similar Appearance

You might notice that the 420 chain and the 40 chain look almost identical. Both chains have the same pitch, and their links appear similar when you place them side by side. This similarity can trick you into thinking they are interchangeable. Many people make mistakes because they rely on visual checks instead of measuring the width or checking the specifications.

You often see confusion in equipment manuals. Vendors sometimes list conflicting information about the number of links. Some say a chain has 100 links, while others claim 124 links. Brochures may describe a chain as sealed, but you find the actual product is non-sealed. Manuals sometimes fail to specify whether the chain is a 420 size, which leads to uncertainty. These inconsistencies make it hard for you to choose the right chain.

• Vendors disagree about link counts, causing confusion.

• Brochures may claim sealed chains, but products are non-sealed.

• Manuals often do not clarify if the chain is a 420 size.

Tip: Always measure the chain and check the specifications before making a purchase. Do not rely only on appearance or vague descriptions.

Naming and Numbering

You may wonder why the names and numbers for these chains are so similar. The naming conventions follow industry standards, but they use different systems for motorcycles and industrial equipment. The 420 chain is common in motorcycles, while the 40 chain is used in industrial machines. Each chain has specific pitch and width dimensions, but the numbers do not always reflect these differences clearly.

Here is a table showing how naming conventions differ:

You see that the 420 chain and the 40 chain serve different purposes. Manufacturers use numbers that look similar, but the chains are not the same. This naming system can confuse you if you do not check the application and specifications.

Note: Always match the chain type to your equipment. The right name and number help you avoid mistakes and keep your machine running safely.

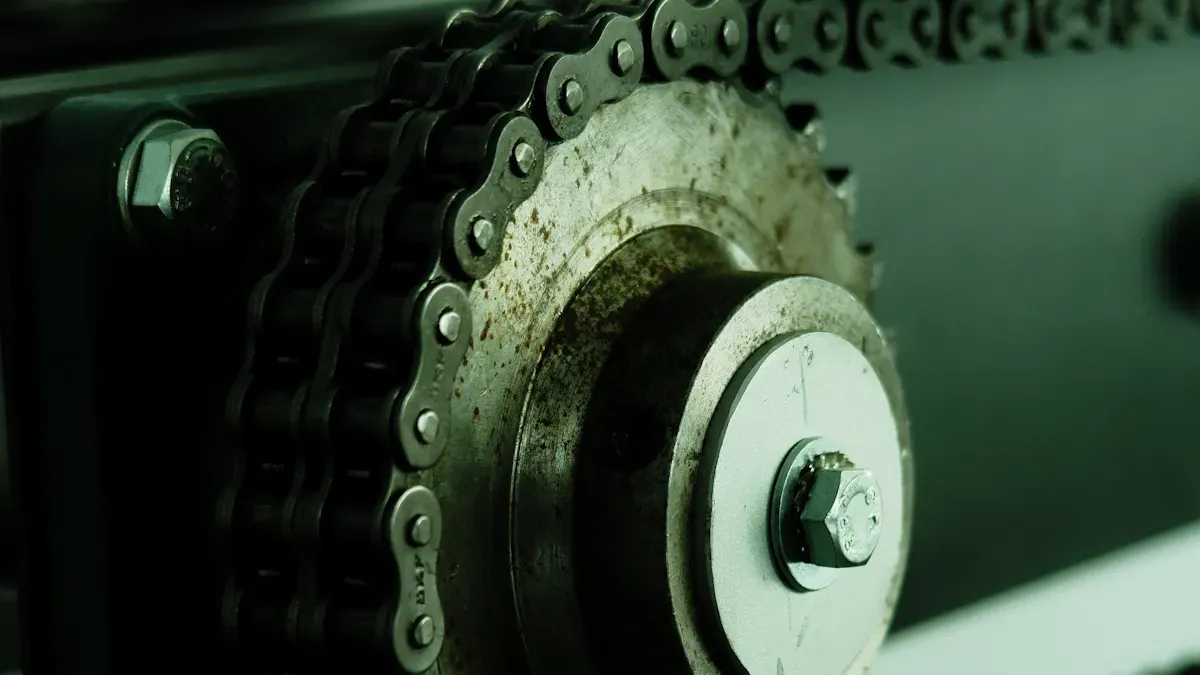

Choosing the Right Chain

Application Recommendations

You need to match the chain type to your vehicle or equipment. Each chain serves a specific purpose. The table below shows where you will most often find each type:

If you work with go karts or mini bikes, you should look for a 420 chain. This chain handles higher speeds and more stress. For machines with less power, such as small conveyors or light-duty equipment, the 40 chain works well. Always check your owner's manual or the manufacturer's recommendations before you buy a replacement chain.

Tip: Measure your old chain and sprocket before you order a new one. This step helps you avoid mistakes and saves time.

Performance and Safety Considerations

Choosing the wrong chain can cause serious problems. If you use a chain that is too wide or too narrow, it may not sit correctly on the sprocket. This poor fit can lead to extra wear, noise, or even chain failure. A chain that breaks during use can damage your equipment or cause injury.

You should also think about the strength of the chain. The 420 chain offers more durability for high-stress applications. If you use a weaker chain on a powerful machine, you risk stretching or snapping the chain. This mistake can shorten the life of your equipment and increase repair costs.

• Always match the chain to the sprocket size and application.

• Replace worn chains before they fail.

• Inspect your chain for signs of rust, stretching, or damage.

Note: Your safety depends on using the right chain. Take time to choose carefully and follow maintenance guidelines.

You now know that 420 and 40 chains differ in width, strength, and application. Always check these key factors before choosing a chain:

• Match the pitch and number of teeth to your sprocket.

• Ensure the bore size and type fit your shaft.

• Confirm the sprocket configuration supports your power needs.

For expert guidance, consult industry organizations or supplier resources that focus on safety, resilience, and environmental standards. Careful selection keeps your equipment running safely and efficiently.

FAQ

Can you use a 40 chain on a 420 sprocket?

You should not use a 40 chain on a 420 sprocket. The width difference causes extra side play. This can lead to faster wear and possible chain failure.

How do you measure chain pitch and width?

You measure pitch by checking the distance between two consecutive pins. You measure width by checking the space between the inner plates. Use a caliper for accurate results.

What happens if you mix chain types?

Mixing chain types can cause poor fit and performance. You may notice noise, vibration, or chain skipping. You risk damaging your sprocket and chain.

Which chain is stronger, 420 or 40?

The 420 chain is stronger. Manufacturers use thicker steel and pre-stretch the chain. You get better durability and performance for high-powered machines.

Where do you find chain size information?

You find chain size information in your equipment manual or on the chain itself. Look for stamped numbers or check the manufacturer’s website for specifications.
