How To Calculate The Length of A Conveyor Chain?

Conveyor chains are versatile workhorses that ensure smooth material handling in power transmission systems. However, the performance of a conveyor system depends on an accurate chain length calculation. An incorrect chain length can cause excessive wear, vibration, and downtime.

This comprehensive guide will show you step by step how to calculate the length of a conveyor chain. We’ll also explore factors affecting the length and common mistakes to avoid when picking the right one for the job.

Why Conveyor Chain Length Matters

Here are some reasons why conveyor chain length matters:

• Proper Sprocket Engagement: Conveyor chains are designed to be compatible with sprockets. If a chain is of the wrong length, the rollers will not properly engage the sprocket teeth. In the long run, this will lead to stress, wear, and system failure.

• Proper tension regulation: A chain longer than it should be will cause improper shifting, high vibration and poor functionality. A chain that is not long enough will cause too much load on other parts, which will cause more friction and wear. This is the reason why it is important to carefully compute the length of a conveyor chain.

• System accuracy: The length of the conveyor chain is important when it comes to the accurate placement of items. The improper length will cause misalignment and improper positioning, and this will influence the whole system.

• Durability: An incorrect conveyor chain length can shorten the lifespan of the chain and sprockets. Conversely, the proper chain length leads to even load distribution, optimizing its life cycle.

• Safety and reliability: A wrong chain length will heighten the risk of failure, which may result in damaged equipment. Correct chain length provides safe working conditions to the people around the machinery.

Factors that Affect Conveyor Chain Length

Calculating the correct conveyor chain length involves more than just measuring the distance between two sprockets. Here are some factors you need to understand to ensure smooth operation and long service life.

1. Center distance: The distance between the shafts of the driving and driven sprockets is what is known as center distance (C). This is one of the major determining factors of the chain length. The longer the center distance, the greater the number of chain links required, whereas the shorter the distance, the fewer the number of chain links required.

2. Sprocket size: The number of teeth on a sprocket has a direct impact on the manner in which the chain passes around a sprocket. An unequal sprocket system will need modifications when calculating to obtain an appropriate length. Thus, you need to be aware of the number of teeth on the sprockets in advance.

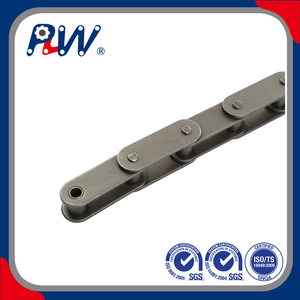

3. Chain Pitch: The chain pitch (P) is the distance between the centers of two consecutive pins. This is what dictates the scale of the chain in general and should be similar to the sprocket design. Even a slight misfit would lead to big issues, such as slippage or early wear.

4. Tension adjustment: There are numerous conveyor systems that require tension adjustment at various times. This compensation balances out the extension of the chain in operation. The provision of extra length means stability and low maintenance.

5. Chain type and configuration: Different conveyor chains may need different calculations. Their geometry and design of links can also be different, and this makes a difference in calculating. Therefore, know the chain type and configuration before you calculate.

6. Operating conditions: The load, temperature, and lubrication are some of the factors to be taken into consideration when installing. As an example, a longer chain may be required to expand properly in high-temperature environments.

How to Calculate Conveyor Chain Length

Method 1: The Standard Formula

The standard formula method is best for design and engineering calculations. It is given as follows:

L = 2CP + N1+N22 + N2 - N12 . P42C

Where:

L = chain length in pitches (that is, the number of roller spacings)

C = center distance between the sprocket shafts (same units as P, e.g., mm)

P = chain pitch (that is, the distance between roller centers)

N1 = number of teeth on the driving sprocket

N2 = number of teeth on the driven sprocket

Step-by-step explanation of each variable

1. C (center distance): Measure along the line between the two sprocket shaft centers. Use mm or inches consistently.

2. P (pitch): Take the pitch from the chain specifications. For example, 25.4mm = 1 inch. Ensure the pitch matches the sprocket tooth spacing.

3. N₁ and N₂ (teeth): Count teeth on each sprocket or refer to the manufacturer’s specifications. A smaller sprocket equals fewer teeth.

4. The third term, N2 - N12 . P42C, is a correction of unequal sprocket sizes.

Let’s go through a worked example:

Assuming:

C = 1500mm

P=25.4mm (1 inch)

N1=20, N2=40

Compute these terms into the equation.

2CP = 2 x 150025.4 = 300025.4 = 118.11

20+402 = 602 = 30

N2 - N12 . P42C = (40-20)2 . 25.44  2  1500 = 400  25.44  9.8696044  1500 = 10,16059,217.6264

= 0.17

Sum up all the terms:

L = 118.11 + 30 + 0.17 = 148.2 pitches.

Most chains require an even number of pitches. Therefore, you can round up L to the nearest whole number, that’s 148 pitches.

After getting the pitches, you convert to the actual length.

Actual Length = L x P = 148 x 25.4 = 3,759.2 mm = 3.7592 m.

Method 2: Step-by-Step simple measurement

This method is suitable when measuring an existing conveyor or installing a new chain. These are the steps to follow:

Step 1: Measure the center distance (C). You can get this by measuring from the center of one sprocket shaft to the center of the other. Use a tape or laser distance tool to get an accurate measurement. Record in mm or in inches and keep units consistent.

Step 2:  Determine pitch (P) and sprocket teeth (N₁, N₂). Read the chain stamp or refer to the manufacturer’s specification for the pitch (e.g., 12.7 mm, 19.05 mm, 25.4 mm). Count the number of teeth on both sprockets or read the sprocket specifications.

Step 3: Apply the formula from Method 1 by inputting the measured values into the formula. This will give you the number of pitches.

Step 4: Round to the nearest even number to get the whole number of pitches. For example, if your calculation gives you 148.28, you can round it up to 148 pitches.

Step 5: Convert to the actual length to get your calculation in mm, inches, or meters.

Step 6: Verify the alignment and tension adjustment. Install the chain and set the tensioner to ensure that there is correct tension according to the manufacturer’s specifications. Check the sprocket alignment (axial and parallel) as a slight misalignment can cause rapid wear. Re-check chain elongation and readjust after the first hours of operation.

Method 3: Using an online calculator

Using an online chain-length calculator or CAD tool modules is one of the fastest and convenient ways to calculate the length of a conveyor chain. These calculators are useful for fast checks and estimates. Here’s how to use an online calculator properly:

1. Prepare your input data. Your center distance, pitch, sprocket teeth, and units should be ready.

2. Online calculators assume the pitch matches the sprocket. Ensure you enter the exact pitch and teeth for accurate results.

3. Choose the units and maintain consistency. Do not mix. If you’re using mm or inches, be consistent with it.

4. Review the output. Online calculators give the chain length in pitches and actual length. Some give wrap angle and roller count. Ensure you understand the results.

5. The results may contain fractional pitches. Round the figures to the nearest even whole number to get the pitch for installation.

6. Confirm with a manual check to verify before ordering or cutting a chain.

Here are a few cautions to keep in mind:

• Not all calculators account for multiple sprocket arrangements or a variety of chain types.

• Check for default assumptions, as some tools assume metric pitch series.

• Verify the calculator result by checking the tension range and actual installation constraints.

Common Mistakes to Avoid in Chain Length Calculation

• A common mistake that causes inaccurate results in chain-length calculation is failing to include the take-up allowance. Over time, conveyor chains may elongate due to wear between pins and bushings. Allowing extra allowance for tension adjustment will ensure a smooth operation. Thus, allow for a take-up range of 1% - 2% of the total chain length, depending on the conveyor’s load and speed.

• The pitch defines how well the chain engages the spsrockets. Assuming the wrong pitch size can lead to poor engagement, vibration, and noise. To avoid this, measure the pitch from the center of one roller pin to the next, and verify that it is compatible with the sprocket’s design specifications.

• Installing mismatched sprockets can cause uneven chain wear and improper meshing. Sprockets with different pitch profiles can lead to inaccurate chain length and can cause slippage under heavy load. Always pair new chains with sprockets of the same pitch and tooth profile.

• Neglecting environmental factors is another mistake that commonly affects accurate chain length calculation. High-temperature environments can cause the chain to expand. If you don’t consider this, the chain might become too tight during operation. Therefore, it is recommended that you leave a small clearance in this situation or use self-adjusting tensioners.

• Skipping alignment checks can throw your system off balance. It can further cause uneven load distribution, increased chain stress, and reduced lifespan. After installation, use a straight edge or laser alignment tool to ensure both sprockets are properly aligned on the same plane.

• Not rounding the chain length properly is another mistake you should avoid. Chain length calculation often includes fractions in the number of pitches. Using a fractional number can affect the accuracy. Always round the result to the nearest even number to ensure consistent link engagement with the sprockets.

Conclusion

Calculating the length of a conveyor chain is simple, straightforward, and easy. Getting accurate results ensures smooth performance and longer equipment life. This guide has explored three methods to guide you in achieving the best results.

If you're still unsure and need expert guidance, contact HANGZHOU PERPETUAL MACHINERY & EQUIPMENT CO., LTD. We're always happy to help.

FAQs

What is the formula for chain length?

The standard formula for calculating conveyor chain length is as follows:

L = 2CP + N1+N22 + N2 - N12 . P42C

Where L is the length in pitches, C is the center distance, P is the chain pitch, N1 is the number of driving sprockets, and N2 is the number of teeth in the driven sprockets.

What if my conveyor uses more than two sprockets?

If your conveyor uses more than two sprockets and you want to get the chain length, the primary thing to do is to determine the total length and the varying chain tension at different points. The core principles of speed, power, and individual sprocket parameters remain the same, but the overall system analysis changes.

How often should I inspect chain tension or elongation?

Inspection of chain tension or elongation should be done at different intervals, from daily visual checks to deep checks every 500 - 1000 operating hours, that is, monthly or quarterly. Inspection frequency depends on the application and operating conditions.

Does lubrication affect chain length?

No, lubrication does not directly affect a chain’s length. However, it is crucial for preventing elongation. Proper lubrication reduces friction between the chain’s internal paths, which is the main reason why chains elongate over time. Without proper lubrication, increased friction can lead to increased chain length.

Can I reuse an old conveyor chain after resizing?

No, it is not recommended to reuse an old conveyor chain after resizing. Doing so compromises the chain’s original length and integrity, potentially leading to failure or equipment damage.

Do I need a new chain if I change sprocket size?

It is generally known that chains wear out faster than sprockets. Thus, it is recommended that you replace your chain when installing a new sprocket or changing sprocket size.
