How to Select the Right Sprocket for Your Application

Selecting the right sprocket for your application is important when it comes to attaining efficiency in the power transmission systems. Nevertheless, it is not always so simple, since there are numerous types. But not to worry - we've got you covered.

Whether you're operating a conveyor system or an industrial machine, this guide will give a comprehensive overview of the factors to consider before you make such a strategic decision.

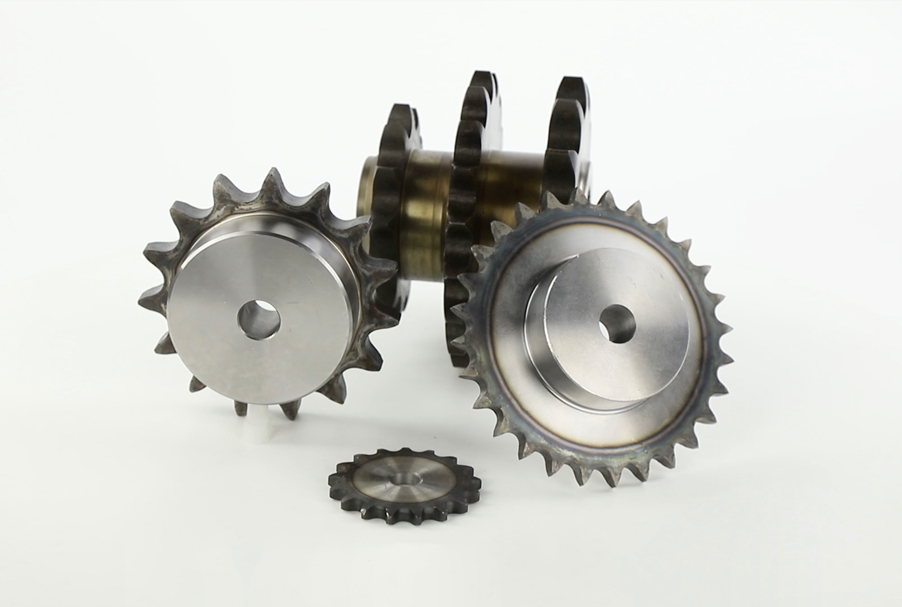

What is a Sprocket?

A sprocket is a toothed wheel which is incorporated with a chain to convey rotary motion in power transmission systems. It is generally available in motorcycles, bicycles and industrial machinery. There are various types of sprockets, including roller chain sprockets, timing belt sprockets, and silent chain sprockets.

Sprockets are simple, yet powerful components in power transmission systems that help to facilitate smooth work operation, efficiency, and improved productivity. Without them, you won’t get things done. This is why it is essential to select the right one that will fit your project's needs.

Factors to Consider when Selecting a Sprocket

Application Requirements

One of the foremost things to consider when selecting a sprocket is the application requirement, that is, where it will be used. Since all sprockets are made equal, the application requirement must be considered based on load capacity, speed and torque, continuous operation and environmental conditions.

Load Capacity

In light-duty applications, such as a food packaging facility, textile production, or light-duty conveyor systems, the load capacity is not extreme. Thus, sprockets that are lightweight, like steel or engineered plastics, may be used. These sprockets are more concerned with accuracy, sanitation, and minimal sound.

However, in heavy-duty applications, such as mining, construction, or other industrial settings, the load capacity may be extreme. Thus, robust sprockets that can handle the pressure and stress are needed to transmit high torque. They are made of sprocket material such as cast iron or hardened steel and sometimes coated with special materials to make them durable.

Speed and Torque

High-speed systems, like electric motors, need sprockets that are particularly machined to reduce vibration while at the same time maintaining efficiency. Low-speed systems with high-load capacity, like agricultural conveyors, need sprockets with large teeth to resist wear from the constant work cycle.

Environmental conditions

Moisture, dust, and temperature can affect your choice of sprockets. If you’re using them outdoors or in areas frequently exposed to external contaminants, you should use sprockets that are designed to withstand these harsh conditions. Choosing the right sprocket in this instance will extend both its lifespan and that of your machine.

Continuous Operation

Consider, too, whether the sprockets will be used continuously or intermittently. If your application is continuous, then choose sprockets that are highly durable with advanced lubrication. If your application is intermittent, choose lightweight sprockets without impacting the lifespan.

Number of Teeth

The teeth number directly influences the speed, torque, wear patterns and general efficiency of the power transmission. Wrong tooth count may cause inefficiencies, early wear or machine breakdown. This can cause delays and downtimes, which slows down productivity.

Small Sprockets

A small sprocket, that is, a sprocket with fewer teeth, can increase torque but also increase stress levels. This is because the chain bends more sharply around the sprocket, causing wear on the chain and sprocket teeth.

An example here is that a sprocket with 10 teeth can be more effective in terms of producing higher torque under heavy loads, however it can wear out more quickly. A small sprocket is used in applications where torque is preferred over durability, such as a compact-sized machine.

Large Sprockets

A large sprocket, that is, a sprocket with more teeth, creates a smoother operation and reduced stress levels. This is because the chain interlocks with the teeth at the same time, distributing stress evenly.

A large sprocket can be effective in high speed application such as on motor cycles, electric motors or in applications that require a smooth and low noise operation. However, it may not work well in compact spaces as it is large. Furthermore, it may reduce torque output. Therefore, you must balance size and performance to make a good choice.

Contact Ratio

The contact ratio is the number of chain links that interlock with the sprocket at a given time. A large sprocket increases contact ratio, thus reducing wear and noise. For example, a sprocket with 40 teeth in a conveyor chain will operate more smoothly than a sprocket with 12 teeth under the same conditions.

Speed Ratio

The sprockets' pitch and size also affect the speed ratio. To illustrate, a small driving socket with a large driven socket lowers the speed of the output but increases the torque. This is suitable for applications like heavy conveyors. However, pairing a large driving socket with a small driven socket can improve speed, making it useful in light-duty applications such as bicycles.

Overall, observe that sprockets which have a higher number of teeth can cause additional load and use increased footprint.

Pitch Size and Compatibility

The pitch refers to the distance between two teeth. The sprocket size and sprocket pitch are crucial in the performance of your drive system.

There are common standards of pitch sizes in the market that have been regulated by the ANSI (American National Standards Institute) and ISO (International Organization for Standardization). These associations have established the dimensions of the chain and sprocket length to achieve international compatibility..

For example, an ANSI #40 chain must be used with a sprocket that has a #40 pitch. An ISO 08B chain is to be compatible with ISO-compatible sprockets. If there is incompatibility, your systems will fail quickly, causing misalignment or chain breakage. Any chain not fitting the sprocket teeth properly will slip, run hot, or wear out.

Roller size and width

Chain compatibility should also include the roller size and width. Although you may get a pitch that is equal to that of the chain, the roller size and width of the chain have to match the tooth profile of the sprocket. Otherwise, it will lead to poor engagement and reduced efficiency.

Operational speed and load capacity

The high-speed and heavy-load systems require the chains and the sprockets to be able to sustain higher stresses. For example, conveyors used in food processing plants may need stainless steel to withstand corrosion. Heavy industrial machines may need hardened steel sprockets for reinforcement.

Balancing between accuracy and longevity is a good idea when it comes to pitch size and compatibility. Smaller pitch sprockets give smooth operation, but larger pitch sprockets are more durable.

Material Selection

Your sprocket performance, durability, and suitability to a particular environment depend on the material it is made of. Different sprocket materials have different strengths, cost profiles, and other features, so you need to be careful on this one.

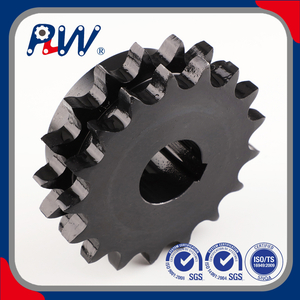

Steel sprockets

These are the most frequently used ones with better strengths and wear resistance. They are also universal and can be used in heavy duty applications like construction and the mining industry where the speed, torque, and the load capacity are important.

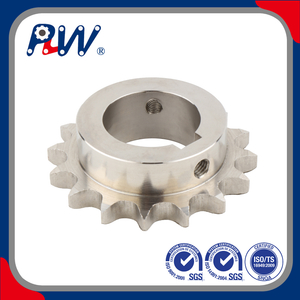

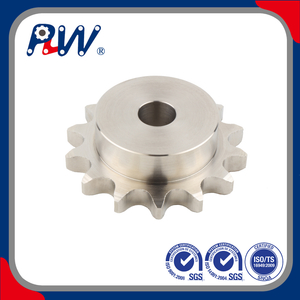

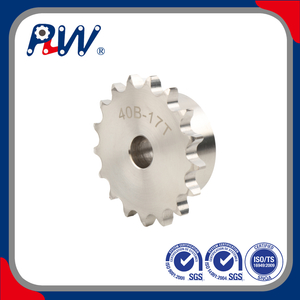

Stainless steel

These have excellent corrosion-resistance properties. Thus, they are helpful in applications where hygiene is paramount. The industrial uses are in food processing, pharmaceuticals and chemical industry. These sectors depend on the stainless steel to prevent corrosion and contamination which may be caused by frequent washdowns.

They are more expensive than hardened steel. Nonetheless, they are cost-effective in the long-term due to their durability and the ability to resist corrosion.

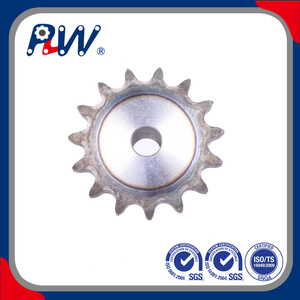

Cast iron sprockets

These sprocket materials have good wear resistance at a considerable cost. They can be applied in medium-duty applications where cost efficiency is the criterion of importance rather than load capacity. Cast iron sprockets are commonly used in the agricultural industry. Because of their brittleness, they are not used in heavy-duty applications.

Plastic sprockets

Plastic sprockets are lightweight and therefore can be used in low-noise and light-duty application. They are helpful in food handling equipment, as they are resistant to moisture and chemicals. However, plastic sprockets have limited strength and wear resistance, so they should not be used in high-load or high-speed environments.

Cost

Cost should also be considered in material selection. While certain sprocket materials are affordable, they may not last long. Expensive sprockets may come with a high initial cost, but their reduced maintenance and durability will lead to long-term cost savings.

Bore Type and Mounting Style

The bore is the hole in the sprocket through which the shaft is passed. Here are the different bore types:

● Pilot bore hole: Comes with a small, unfinished bore that must be machined for the shaft to pass.

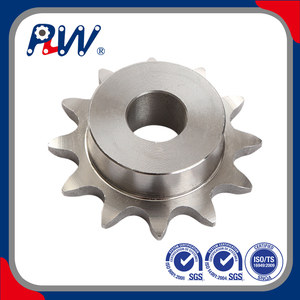

● Finished bore sprockets: Machined to standard shaft sizes.

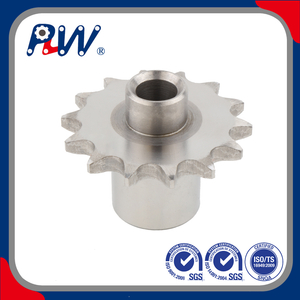

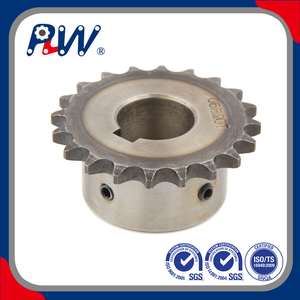

● Taper lock sprockets: Use a tapered bushing to fit onto the shaft.

If the shaft is not properly fit into the bore, it could lead to slippage, vibration, and mechanical failure. Thus, it is essential to consider this.

The mounting method often depends on the application. In high-speed systems, taper lock sprockets are employed to give a tighter, more secure fit. For specialized machinery, pilot bore sprockets are mainly used.

Alignment and Installation Environment

The sprocket has to be aligned to the chain and other sprockets in the system. If there is any form of misalignment, it may lead to uneven wear, noise, vibration, and high friction. Such problems can cause reduced lifespan and increased risk of failure during the work cycle.

There are three types of misalignment:

● Parallel misalignment where the sprockets are not in the same plane.

● Angular misalignment where the sprockets are at different angles.

● Offset alignment where the sprockets are scattered horizontally.

The installation environment also matters. Coated or hardened sprockets should be used on abrasive environments or environments exposed to dust and dirt. Stainless steel that is corrosion-resistant is needed in wet environments.

Special sprockets are required in high-temperature environments and they must have gone through heat treatments to avoid deformation.

The lubrication is also necessary, particularly in situations where the sprockets are running in dry and high friction environment. Proper lubrication will extend their shelf life. Protective covers also act as a barrier towards external contaminants in the outdoor environment.

Common Mistakes to Avoid When Selecting Sprockets

● Disregarding chain compatibility.

● Using the wrong material for the environment.

● Choosing based on price only.

● Underestimating load requirements

● Ignoring the alignment and the accuracy of installation.

FAQs

How can I select a chain and sprocket?

To select a matching chain and sprocket, check the ANSI/ISO standard. Choose the number of teeth to get your desired speed and a torque ratio. Make sure that the bore size suits the shaft and the material suits the environment.

How does sprocket size relate to speed?

A large rear sprocket with a small front sprocket increases the gear ratio but lowers the top speed. However, a smaller rear sprocket with a large front sprocket decreases the gear ratio and increases top speed.

How do I know the size chain I need for my sprockets?

Find industrial-size marks, such as ANSI #40 or ISO 08B, on the chain and sprockets. These codes establish the pitch and roller width dimension. As an alternative, measure the chain pitch and roller width with calipers.

Does sprocket size affect fuel consumption?

Yes, sprocket size is directly related to fuel consumption. Changing the size of your sprocket can reduce or increase fuel efficiency, as it alters the acceleration and torque.

Would I have to buy a new chain when changing sprocket size?

Yes, when changing the sprocket size, you’ll need a new chain. It is recommended that you replace the front sprocket, the rear sprocket, and the chain at the same time to ensure even wear and optimal performance. Installing a new sprocket on an old chain can cause failure.

Conclusion

Selecting the right sprocket for your application is not just about fitting parts together. You must understand certain factors, such as the number of teeth, pitch size, installation, and others. But keep in mind that the right sprocket is the difference between a failed mission and a successful one.

If you’d like to evaluate your sprocket needs, contact our expert team and we’ll respond in no distant time.
